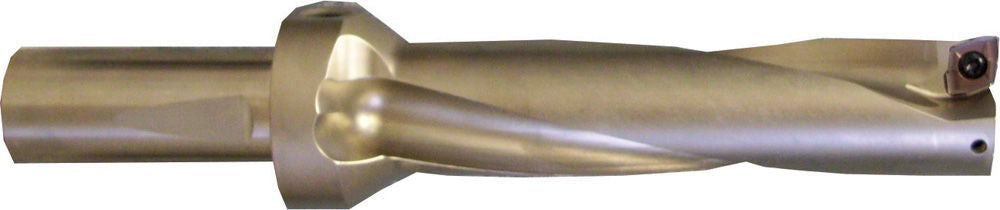

Kyocera THD89109 S100-DRZ 6251875-06G Indexable Drill

Product Description

The Kyocera THD89109 S100-DRZ 6251875-06G is an indexable drill designed for precision drilling tasks. Its robust design features a drilling diameter of five-eighths inches, making it suitable for various applications. The drill's shank diameter is one inch, allowing compatibility with a range of drill chucks.

• Drilling diameter of 0.625 inches
• Shank length of 2.130 inches
• Overall length of 5.150 inches

Product Highlights

This indexable drill is ideal for use in drilling applications that require durability and accuracy. The carbide inserts contribute to extended tool life and consistent performance.

Product Information

Standard Information

• Brand: Kyocera
• Part Number: S100-DRZ6251875-06G

Technical Specifications

• Drilling Diameter: 0.6250 inches (15.875 mm)
• Max. Diameter: 0.6250 inches (15.875 mm)
• Drilling Depth: 1.8750 inches
• Shank Diameter: 1.0000 inches (25.400 mm)
• Shank Length: 2.1300 inches
• Overall Length: 5.1500 inches
