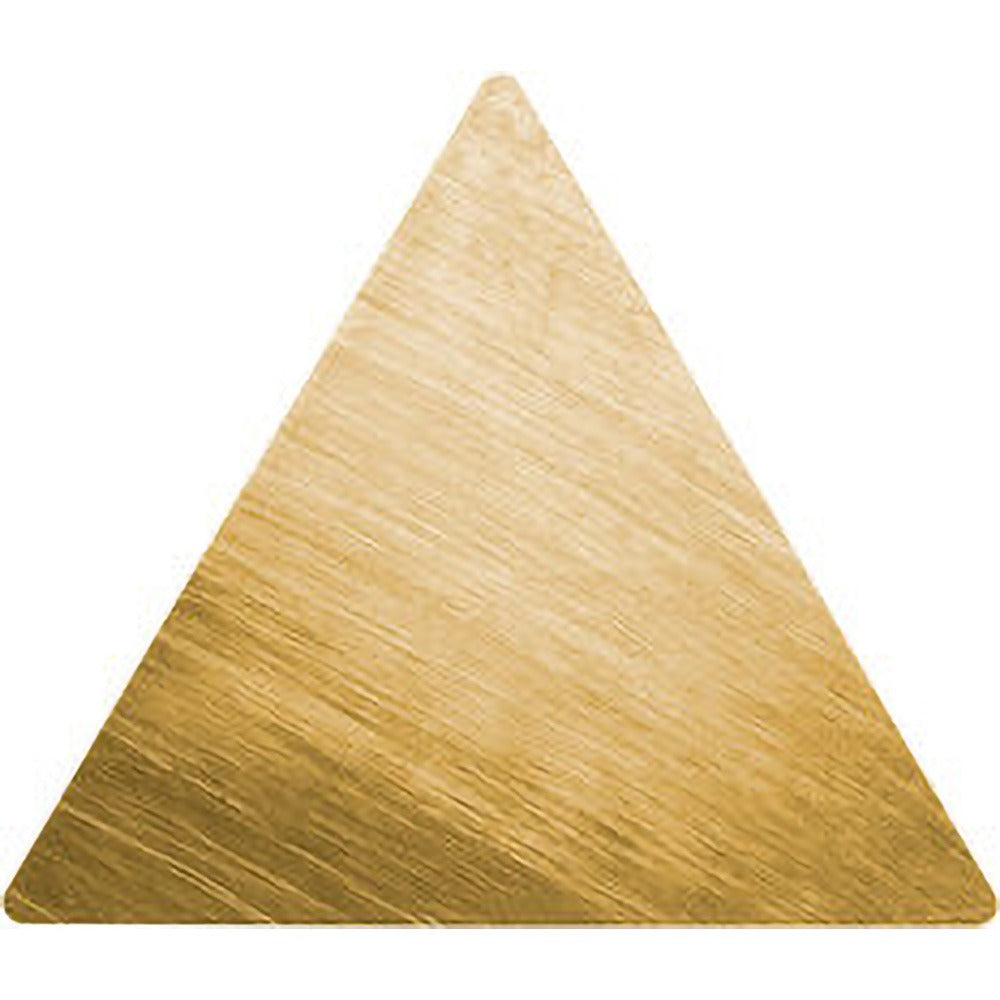

Kyocera TCS61240 Ceramic Turning Insert Triangle 3/8 in Ic

Product Description

The KYOCERA TCS61240 is a ceramic turning insert designed for precision metal cutting operations on hard materials. Manufactured to the TPG321T00320 A66N specification, it features an aluminum oxide (Al2O3) and titanium carbide/titanium nitride (TiC/TiN) coating applied via PVD process. The triangular insert geometry provides three cutting edges, and the neutral hand orientation suits both left- and right-hand toolholders. With an inscribed circle of 0.375 inches and a corner radius of 0.0156 inches, this insert is engineered for controlled, accurate cuts in hard workpiece materials. Machinists and CNC operators working in job shops and production facilities are the primary users.

This insert is suited for hard material turning applications including external turning, facing, boring, and chamfering. It conforms to ANSI and ISO standards under series ISOI, making it compatible with standard TPG-style insert toolholders. The positive rake geometry and 60-degree triangular shape support efficient chip formation during high-speed passes on hardened steels and similar hard materials graded H01 and H10. The 11-degree relief angle reduces flank wear during continuous and interrupted cuts.

Key Features

• Al2O3 with TiC/TiN PVD coating for wear resistance on hard materials
• Triangle insert shape (60 degrees included angle) with 3 usable cutting edges
• Neutral hand orientation fits left- and right-hand TPG toolholders
• Positive rake geometry promotes efficient chip evacuation
• Multi-use application: external turning, facing, boring, and chamfering
• Meets ANSI and ISO standards, ISOI series

Compatibility

Designed as an OEM-style replacement for standard TPG321-style insert seats. Compatible with toolholders accepting TPG insert style with a clamp holding method. Fits H01 and H10 material grade applications per ISO coding.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before indexing or replacing the insert. Use the correct torque wrench for the clamp screw as specified by the toolholder manufacturer. Inspect the insert seat and clamp for debris or wear before seating a new insert to ensure proper clamping and runout control.
