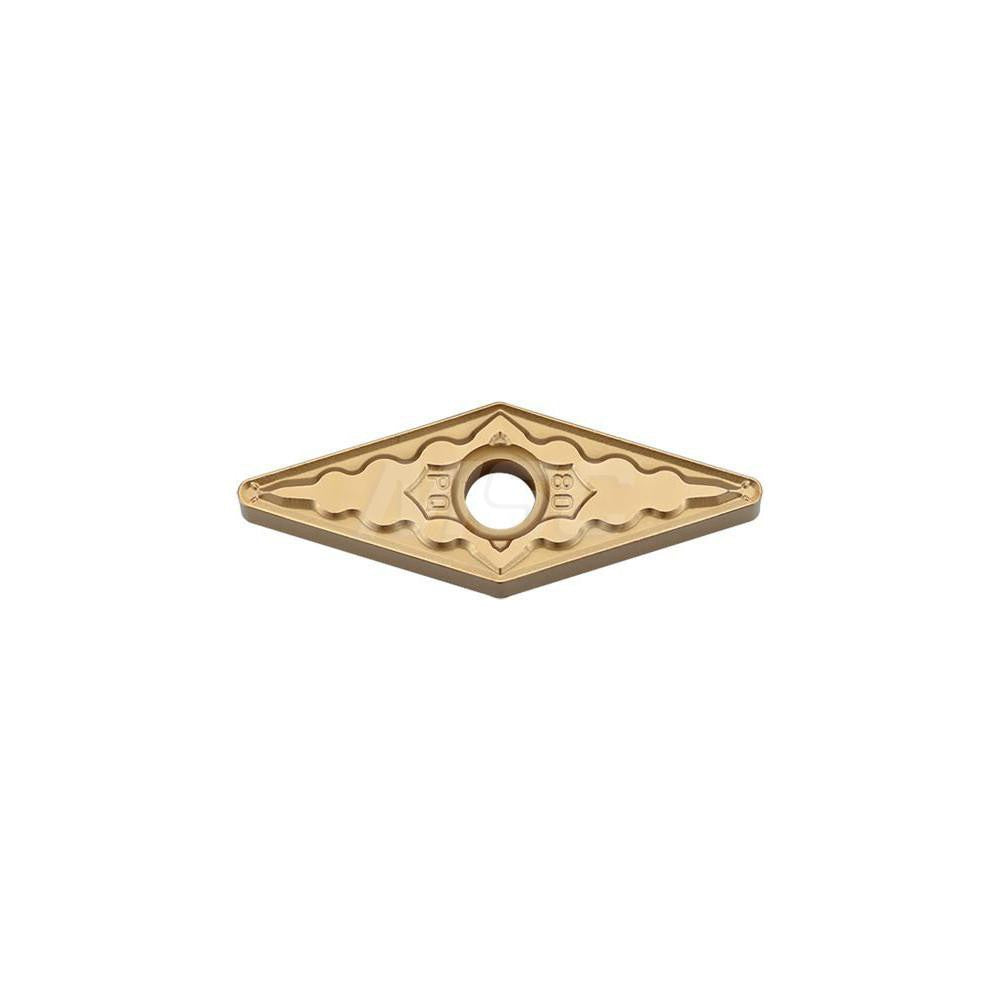

Kyocera TAB07602 Turning Insert VNMG331PQ CA515 Carbide

Product Description

The KYOCERA TAB07602 is a VNMG331PQ CA515 grade solid carbide turning insert designed for precision metal cutting operations on CNC and manual lathes. It features a CVD-applied multilayer coating of TiCN, Al2O3, and TiN for wear resistance and thermal protection during steel-cutting applications. The insert has a 35-degree diamond shape (Shape Code V), a neutral hand orientation, a 3/8-inch inscribed circle, and a 1/64-inch corner radius. With 4 available cutting edges and a chamfered and honed edge preparation, it delivers consistent performance across a range of material grades including P01, P10, P20, and P30 steel. Licensed machinists and CNC operators are the primary users of this insert.

This insert is suited for external turning, facing, copying, and undercutting operations on steel workpieces in both production and job-shop environments. It belongs to the ISOI series and follows ANSI and ISO standards, with an ISO code of VNMG160404PQ. The PQ chip breaker geometry is optimized for steel cutting across light to medium depths of cut, making it a practical choice for general-purpose turning setups on ferrous materials. It is packaged individually and sold in single-unit quantities.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for extended tool life in steel cutting
• 35-degree diamond insert shape (VNMG) with neutral hand orientation
• 4 usable cutting edges per insert for cost-efficient tooling rotation
• PQ chip breaker geometry supports copying, external turning, facing, and undercutting
• Chamfered and honed cutting edge preparation for edge stability and reduced chipping
• Compatible with clamp and pin insert holding methods

Compatibility

Designed for use in VNMG-style toolholders compatible with the ISOI series. Suitable for steel workpiece materials graded P01, P10, P20, and P30 per ISO classification. Conforms to ANSI and ISO insert standards. Industry standard number VNMG331PQCA515.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before seating or indexing the insert. Secure the insert using the appropriate clamp or pin holding method specified by the toolholder manufacturer. Inspect the insert pocket and seating surfaces for chips or debris before installation to ensure proper seating and accurate cutting geometry.
