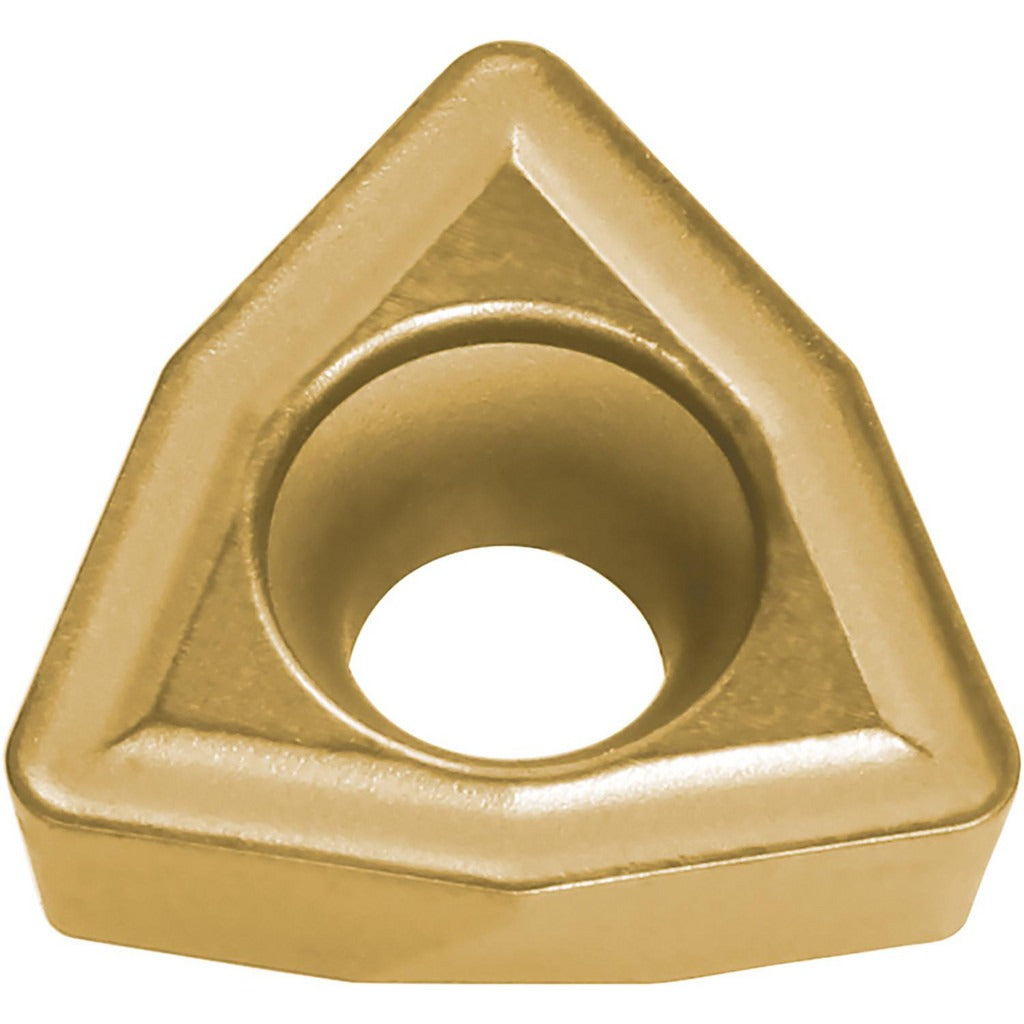

Kyocera 8858935 Indexable Drill Insert Wcmx CA6535

Product Description

The KYOCERA 8858935 is a solid carbide indexable drill insert in the WCMX insert style, designed for use with compatible indexable drill bodies in metal cutting and machining operations. This insert carries the manufacturer grade CA6535 and features a multilayer CVD coating of TiCN, Al2O3, and TiN, which provides wear resistance and thermal protection during cutting. The chipbreaker designation is M1, suited for moderate cutting conditions. With an 80-degree included angle and a 0.80 mm corner radius, this insert is engineered for precision hole-making in a variety of workpiece materials. Licensed machinists and CNC operators are the primary installers.

This insert is intended for use with OTMD-style compatible indexable drill bodies. The primary workpiece material designation is M, indicating suitability for stainless steels and other difficult-to-machine alloys per ISO classification. It is sold individually and is appropriate for production environments requiring repeatable, consistent cutting performance in drilling operations. The right-hand cutting direction makes it a standard orientation for conventional CNC drilling setups.

Key Features

• WCMX insert style with M1 chipbreaker for controlled chip formation
• CA6535 manufacturer grade with multilayer CVD coating: TiCN, Al2O3, TiN
• 80-degree included angle with 0.80 mm corner radius
• 7-degree relief angle for positive cutting geometry
• Compatible with OTMD-style indexable drill bodies
• Right-hand cutting direction

Compatibility

Designed for use with OTMD-style compatible indexable drill bodies. ISO code WCMX050308M1 and manufacturers catalog number WCMX050308M1CA6535 can be referenced for cross-compatibility verification with supported drill holders.

Installation Notes

Installation of indexable inserts should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before handling or replacing inserts. Use the appropriate torque wrench and insert screw specified by the drill body manufacturer when seating the insert. Inspect the insert pocket and clamping screw for wear or damage before installing a new insert.
