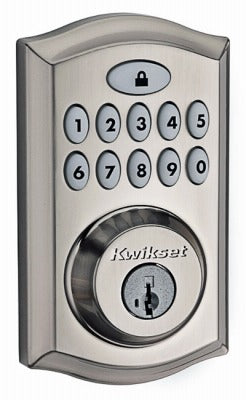

Kwikset 913TRL 15 Electronic Deadbolt Satin Nickel

Product Description

The KWIKSET 913TRL 15 is an electronic keypad deadbolt with keyless entry designed for residential door security. It features a 10-digit backlit keypad with a dedicated lock button and supports up to 16 user codes plus a master code for controlled access management. The interior assembly uses a reduced-profile, sleek metal design. One-touch locking engages the deadlock mechanism instantly without a key. BHMA Grade 2 certified, this deadbolt meets recognized standards for residential security hardware. No hardwiring is required, and installation is completed with a standard screwdriver in a matter of minutes.

This deadbolt is suited for residential entry doors in both new construction and retrofit applications. It fits standard doors ranging from 1-3/8 inches to 2 inches in thickness and requires no new screw holes when replacing an existing deadbolt. The unit is installed by locksmiths, door hardware technicians, or experienced DIYers. The KW1 keyway compatibility means the lock can also be keyed to match other Kwikset hardware in the same property.

Key Features

• 10-digit backlit keypad with dedicated one-touch lock button for fast engagement
• Supports 16 user codes plus a master code for tiered access control
• BHMA Grade 2 certified for residential security performance
• SmartKey re-key technology allows re-keying in seconds using 3 steps with no locksmith required
• Patented side locking bar technology resists lock bumping attacks on conventional pin tumbler mechanisms
• No hardwiring needed — installs with a standard screwdriver, fits existing door prep

Compatibility

Compatible with standard residential doors from 1-3/8 inches to 2 inches thick. SmartKey re-key technology is compatible with the Kwikset KW1 keyway. No new screw holes are required when replacing an existing standard deadbolt.

Installation Notes

Installation is performed by a locksmith or qualified door hardware installer using only a screwdriver — no drilling or hardwiring is required. Before beginning, confirm door thickness falls within the 1-3/8 inch to 2 inch specification. Follow the manufacturer instruction sheet for battery installation and initial user code programming before mounting the exterior assembly. Verify proper bolt alignment and latch engagement before completing installation.
