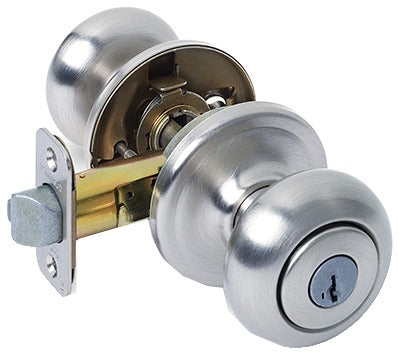

Kwikset 740J 15 Smt Cp K4 Entry Lockset Satin Nickel

Product Description

The KWIKSET 740J 15 SMT CP K4 is a Juno series entry lockset finished in satin nickel, designed for residential entry door applications. It features SmartKey rekeying technology, allowing the lock cylinder to be rekeyed without removing the lockset from the door. The unit includes a 6-way adjustable steel latch that fits both 2-3/8 inch and 2-3/4 inch backsets. A collar is included to convert a 7/8 inch diameter latch bore to a 1 inch diameter drive-in latch. Both round and square corner face plates ship with the unit, along with a round corner strike. Licensed locksmiths, door hardware installers, and general contractors install this lockset in new construction and retrofit projects.

This lockset is suited for residential entry doors requiring Grade 2 security hardware. The SmartKey cylinder allows on-site rekeying in seconds using the included SmartKey tool, which is useful for property managers and homeowners changing key control without replacing hardware. The concealed screw design and E-Z Install system reduce installation time. The satin nickel finish is identified by Kwikset finish code 15, and the package ships in clear pack with a quantity of 4 units per package.

Key Features

• SmartKey rekeying technology allows cylinder rekeying without removing the lockset
• 6-way adjustable steel latch accommodates both 2-3/8 inch and 2-3/4 inch backsets
• Collar included to convert 7/8 inch diameter latch to 1 inch diameter drive-in latch
• Both round corner and square corner face plates included
• Concealed screws and E-Z Install system for faster installation
• Grade 2 security rating

Compatibility

Designed as an OEM-style entry lockset for standard residential entry door prep with 2-3/8 inch or 2-3/4 inch backset bore configurations.

Installation Notes

Installation is performed by a licensed locksmith, door hardware installer, or qualified contractor. Verify the door bore diameter and backset measurement before selecting the latch configuration. Use the included collar if converting from a 7/8 inch latch bore to a 1 inch drive-in latch application. Follow local building codes for residential entry hardware requirements.
