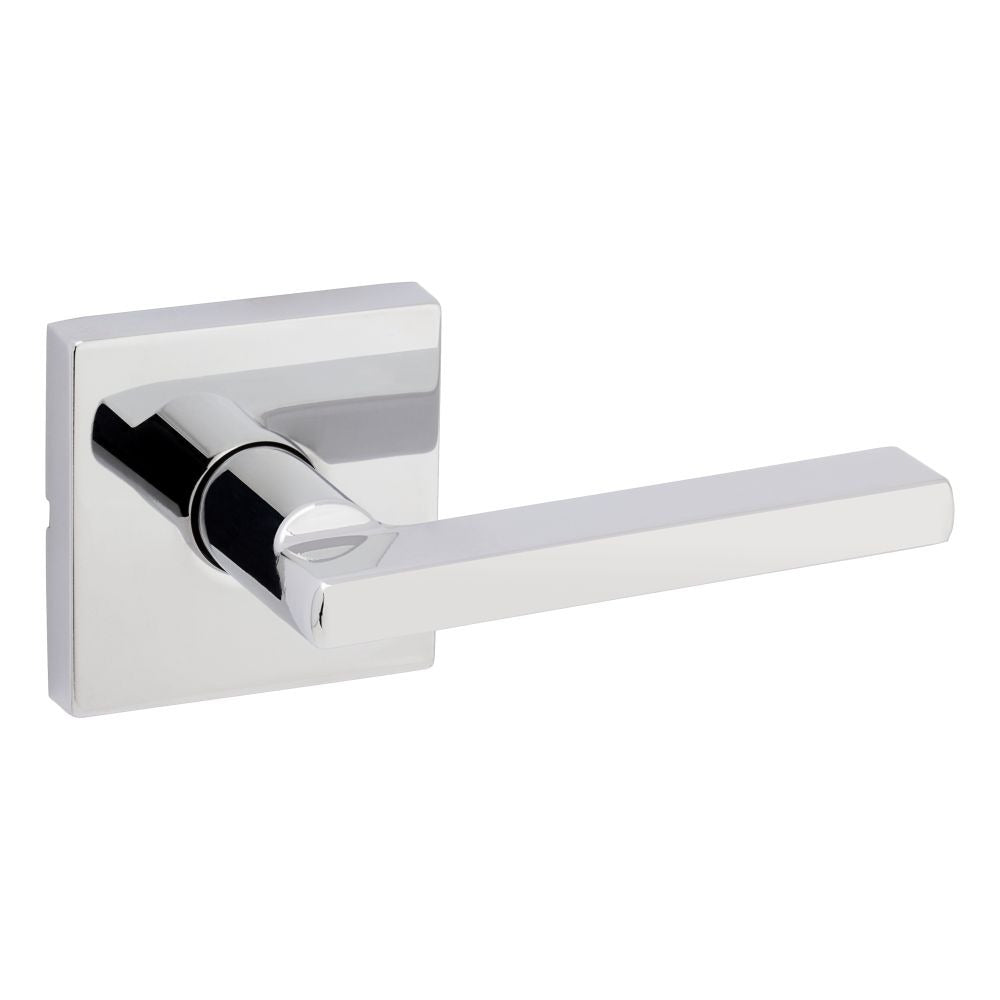

Kwikset 720HFLSQT-26.FD Halifax Lever Passage Lock Chrome

Product Description

The KWIKSET 720HFLSQT-26.FD is a passage door lock featuring the Halifax lever style with a square rose trim plate, finished in Bright Chrome. Rated for 20-minute fire door assemblies under UL standards, this lock is built for interior passage applications where latching is required but keyed security is not. It ships with a 6AL FD latch and RCS strike plate, giving installers a complete hardware set out of the box. The Halifax lever design offers a clean, contemporary profile suited to residential construction and light commercial interior doors. At 2.65 pounds, it is a solid, full-hardware unit ready for direct installation.

This passage lock is intended for interior doors in residential settings where free passage between rooms is needed — hallways, closets, and common areas. The UL 20-minute fire rating makes it appropriate for doors that require a rated assembly in residential construction, such as attached garage entry doors or certain interior corridor doors per local building codes. The included 6AL FD latch and RCS strike simplify the installation by eliminating the need to source compatible hardware separately. Contractors and finish carpenters are the typical installers for this product.

Key Features

• UL-rated for 20-minute fire door assemblies
• Halifax lever style with square rose trim plate
• Bright Chrome finish for a polished, contemporary look
• Includes 6AL FD latch and RCS strike plate — complete installation kit
• Passage function — no keying required, free movement in both directions
• Sold individually; case quantity of 12 available for project or contractor orders

Compatibility

Designed as an OEM-style passage lock for standard residential interior door prep configurations. Verify door backset, cross bore diameter, and door thickness before installation to confirm fitment.

Installation Notes

Installation is typically performed by a finish carpenter, general contractor, or licensed locksmith. Confirm the door is prepped for the appropriate backset and cross bore before beginning. Disengage any door closer or hardware before drilling or modifying the door. Local building codes, including applicable provisions of the IBC or IRC, should be consulted when installing hardware on fire-rated door assemblies.
