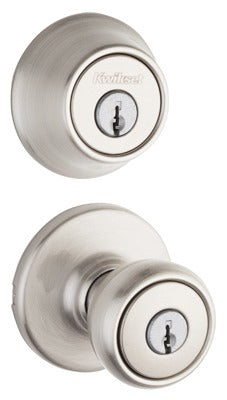

Kwikset 690T 15 Cp Tylo Entry Combo Set Satin Nickel 6 Pack

Product Description

The KWIKSET 690T 15 CP is a Tylo entry combo set that pairs a keyed entry lockset with a 660 single cylinder deadbolt, providing a matched door hardware solution in a satin nickel finish. The all-steel adjustable deadbolt and dead latch accommodate both 2-3/8 inch and 2-3/4 inch backsets, making it compatible with the most common residential door preparations. A collar is included to convert the dead latch to a 1 inch diameter drive-in configuration. The round corner strike and round-cornered latch face fit standard door jamb mortises without additional modification. Licensed locksmiths, door hardware installers, and remodeling contractors are the typical trades who specify and install this combo set.

This combo set is suited for residential entry door applications where a matched knob-and-deadbolt appearance is required. The satin nickel finish coordinates with a wide range of door hardware trim. The package is configured as a case of 6 keyed-alike sets, making it well-suited for property managers, multi-unit residential projects, or contractors outfitting multiple doors on a single job site with a common key. All sets in the case are keyed to the same key code, reducing the number of keys a property owner must manage.

Key Features

• Combo pack includes Tylo entry knob lockset and 660 single cylinder deadbolt in matching satin nickel finish
• Adjustable all-steel deadbolt and dead latch fits both 2-3/8 inch and 2-3/4 inch backsets
• Collar included to convert dead latch to 1 inch diameter drive-in dead latch configuration
• Round corner strike and round-cornered latch face fit standard residential door jamb cutouts
• Keyed alike across all 6 sets in the case for simplified key management
• Lifetime mechanical and finish warranty

Compatibility

Designed as an OEM-style replacement or new-installation combo set for standard residential entry doors prepped for a knob lockset and a single cylinder deadbolt with either a 2-3/8 inch or 2-3/4 inch backset.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware installer. Confirm door thickness and backset measurement before installation to select the correct latch adjustment. Ensure the door is not under tension from hinges or the frame before drilling or mortising. Follow all applicable local building codes regarding residential entry door hardware requirements.
