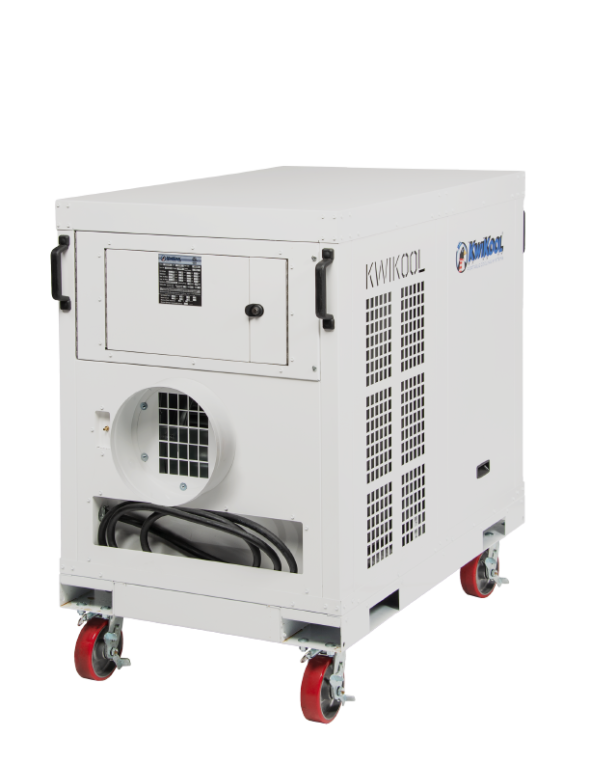

Kwikool KPO5-23-3 KPO5-23 60,000 BTU

Product Description

The Kwikool KPO5-23 is a versatile 5-ton (60,000 BTU) portable air conditioner engineered for demanding commercial and industrial environments. Designed for both indoor and outdoor use, the unit can be positioned outside and ducted into a building or placed indoors to target specific areas. The KPO5-23 runs on a 230-volt/40-amp 3-phase circuit and has a small footprint ideal for moving cold air to hard-to-reach areas.

• 60,000 BTU cooling capacity
• Compact yet Super Powerful
• HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet

Product Highlights

The Kwikool KPO5-23 is designed for both indoor and outdoor use, with a compact footprint and advanced airflow capabilities.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KPO5-23-3
• Country of Origin: USA

Technical Specifications

• COOLING CAPACITY BTU/hr @ 95F at 60% RH: 60,000 (5-Ton)
• Operating Temperatures: 30-110 F 50%RH
• HEATING - OPTIONAL Heat Strips/BTU: 12kW/41,600
• Compressor Type: Scroll
• Refrigerant: R 454 B
• Evaporator Fan Type (Centrifugal): Direct Drive
• Air Flow (CFM): 3500
• Supply and Return Air Device: 1-12" flanges for supply duct and 1-12" flange for return duct
• Maximum Duct length: 50' each for supply and return.
• Condenser Fan Type (Centrifugal): Direct Drive
• Condenser Exhaust flange: 12"
• Condenser Duct Max. Length: 65'
• Condenser fan speed control: Variable Frequency Drive
• Power Supply (Volts): 230 Three Phase
• Current Consumption (Amps): 28.7
• Power Consumption (kW): 7.23
• Maximum Circuit Breaker (Amps): 50
• Recommended Breaker Size: 40
• Minimum Circuit Ampacity(Amps): 33.275
• Min./Max. Voltage: 195-250
• Power Cord Gauge/Length: 8 AWG/10'
• Plug Configuration: Field Supplied
• Power Quality Control: Internal Phase and Power Monitor
• Skid: 12 Gauge G90 Galvanized Steel with Epoxy Powdercoat Finish
• Cabinet: 16 Gauge G90 Galvanized Steel with Epoxy Powdercoat
• Casters: 6" Heavy Duty Swivel and Locking
• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Digital
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes
• Operating Temperatures Evaporator: 65-110 F 50%RH
• Operating Temperatures Condenser: 30-110 F 50%RH
• Air Flow (CFM) Evaporator: 2,400
