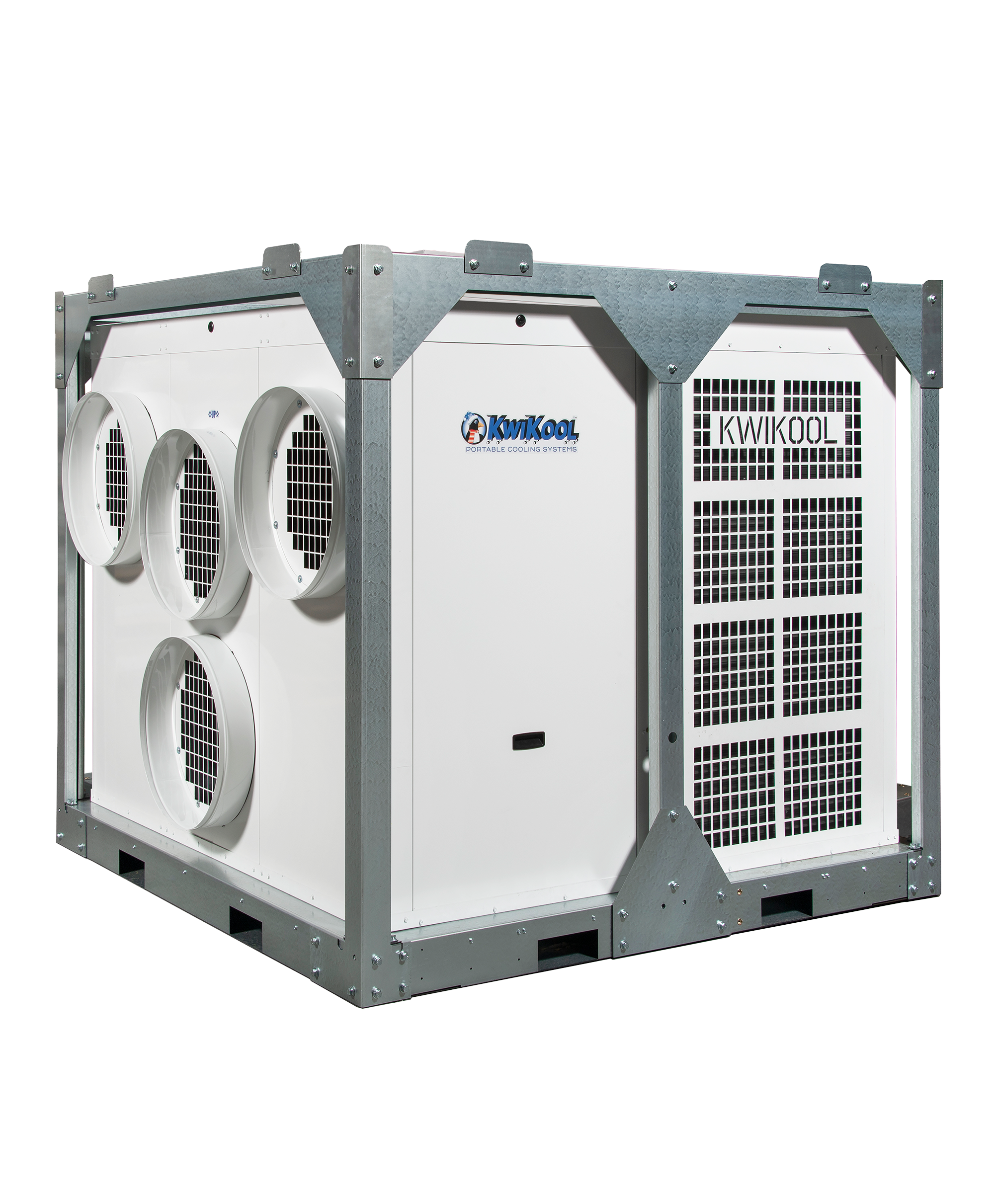

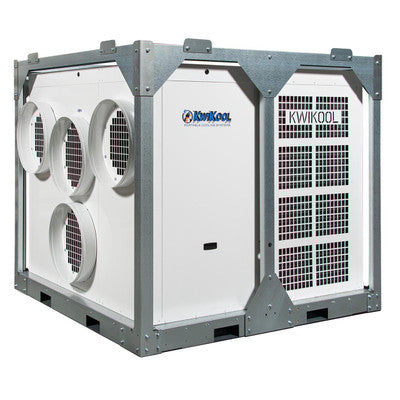

Kwikool KPO25-43HF-3 KPO Series 270,000 BTU 25-Ton Portable Air Conditioner with Heat and Frame

Product Description

The Kwikool KPO25-43HF-3 is a 25-ton portable air conditioner with 270,000 BTU cooling capacity. It features a small footprint and forklift skid access for easy movement. The unit has high static blowers and advanced airflow capabilities, with 75 feet of 20" cold air supply and return ducts. It runs on a 460-volt/80-amp 3-phase circuit and includes 48kW, 166,600BTU heat strips and a frame for stacking.

• 270,000 BTU cooling capacity
• Small footprint with forklift skid access
• 460-volt/80-amp 3-phase circuit with built-in Cam Lock Connections

Product Highlights

Portable air conditioner with heat, ideal for cooling areas with limited space and high heat loads.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KPO25-43HF-3
• Country of Origin: America

Technical Specifications

• BTU/hr @95F at 60% RH: 270,000 (25-Ton)
• Operating Temperatures: 30-110F 50% RH
• Heat Strips/BTU: 48kW/166,600
• Compressor Type: dual scroll x2 each
• Refrigerant: R-454B
• Fan Type (Centrifugal): hyper drive x4
• Air Flow (Evaporator): 9,500 CFM
• Supply and Return Air Device: (2)20” flanges for supply duct and (2)20” flange for return duct
• Max Duct Length: 75’
• Fan Type (Centrifugal) (Condenser): belt drive
• Air Flow (Condenser): 14,000 CFM
• Condenser Exhaust Flange: 20” x2
• Condenser Duct Max Length: 100’
• Condenser Fan Speed Control: Variable Frequency Drive
• Power Supply: 460V Three Phase
• Current Consumption: 61.1 Amp
• Power Consumption: 43.76 kW
• Max Circuit Breaker: 100 Amp
• Recommended Breaker Size: 80
• Min Circuit Ampacity: 68.875 Amp
• Min/Max Voltage: 420-500
• Power Connection: Color Coded Cam Locks
• Power Quality Control: Internal Phase and Power Monitor
• Skid: 12 gauge G90 galvanized steel with epoxy powder-coat
• Cabinet: 16 gauge G90 galvanized steel with epoxy powder-coat
• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Digital
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes
• Installation Type: Portable
• Energy Star: No
• CFMs: 9500
• Fan Speeds: 1
• Includes Heat Mode: No
• Cooling BTUs: 270000
• Cooling Amps: 61.1
• Bucket Capacity: NA
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 30° - 110°
• Voltage: 460V
• Phase: 3
• Rec. Circuit Breaker Size (Amps): 80
• Certifications: ETL
