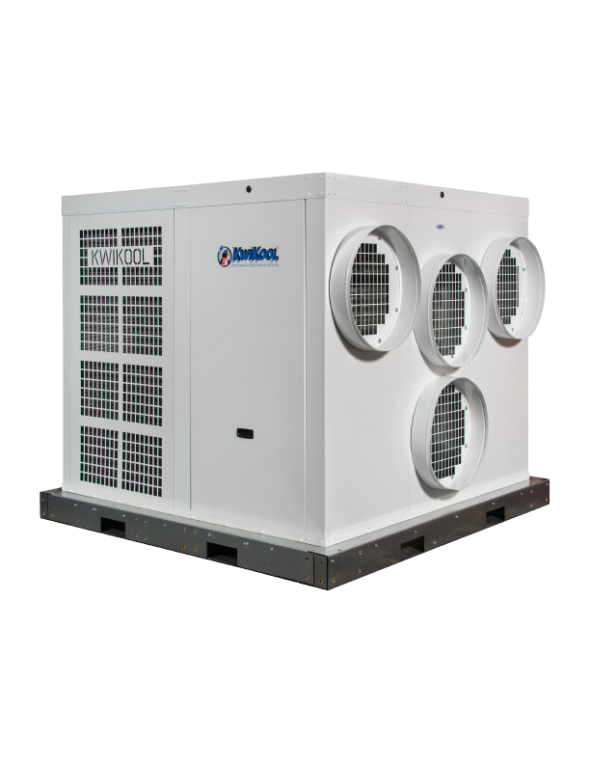

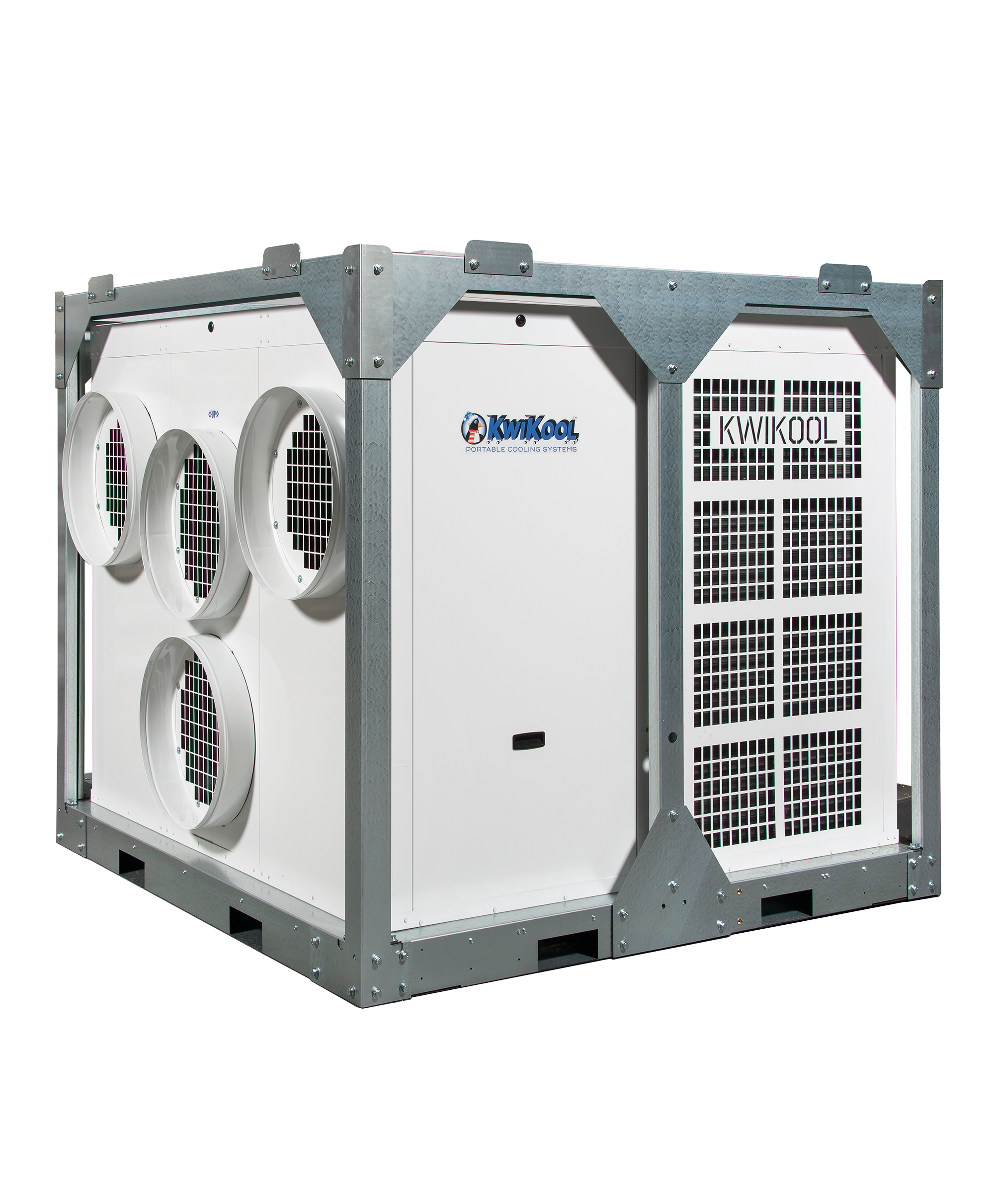

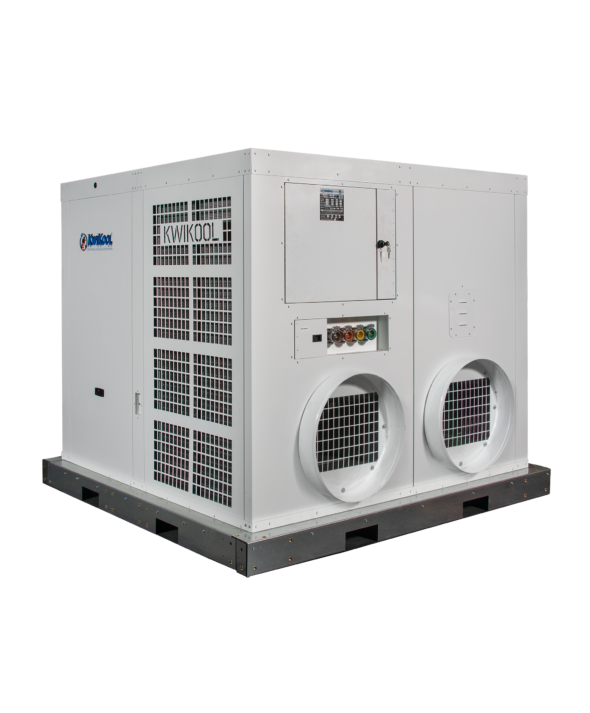

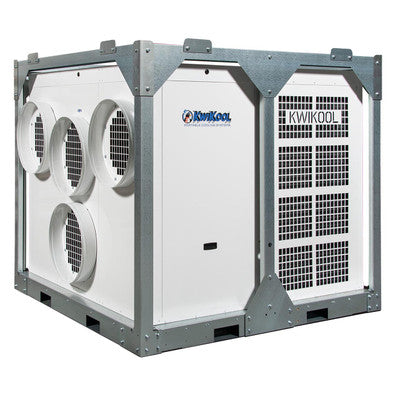

Kwikool KPO25-43F-3 KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner 460 Volt/3 Phase with Frame

Product Description

The KWIKOOL KPO25-43F-3 is a 25-ton, 270,000 BTU portable air conditioning system designed for commercial and industrial cooling. It features a heavy-duty 12 gauge steel base with forklift skid access for easy movement and setup. This unit runs on a 460-volt/80-amp 3-phase circuit with built-in Cam Lock Connections for simple electrical hook-up. The KPO25-43F-3 includes a frame for protection and stackability.

• 270,000 BTU nominal cooling capacity for effective high-capacity cooling.
• Heavy-duty 12 gauge steel base with forklift skid access for easy transport.
• Built-in Cam Lock Connections for easy electrical hook-up.

Product Highlights

The KPO25-43F-3 is ideal for areas that are difficult to cool, offering advanced airflow capabilities and reliable performance in demanding environments. It is designed for temporary installations and provides efficient cooling wherever it’s needed.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KPO25-43F-3
• Country of Origin: USA

Technical Specifications

• Cooling Capacity: 270,000 btuh (25-Ton)
• Power Supply: 460V- 3Ø 80 Amp Circuit
• BTU/hr @ 95 F at 60% RH: 270,000 (25-Ton)
• Operating Temperatures: 30-110 F 50% RH
• Heat Strips/BTU: 48kW/166,600
• Compressor Type: Dual Scroll x2 each
• Refrigerant: R 454 B
• Fan Type (Centrifugal): Hyper Drive x4
• Air Flow (CFM) Evaporator: 9,500
• Supply and Return Air Device: 2-20" flanges for supply duct and 2-20" flange for return duct
• Maximum Duct Length: 75'
• Fan Type (Centrifugal) Condenser: Belt Drive
• Air Flow (CFM) Condenser: 14,000
• Condenser Exhaust Flange: 20" x2
• Condenser Duct Max. Length: 100'
• Condenser Fan Speed Speed Control: Variable Frequency Drive
• Power Supply (Volts): 460 Three Phase
• Current Consumption (Amps): 61.1
• Power Consumption (kW): 43.76
• Maximum Circuit Breaker (Amps): 100
• Recommended Breaker Size: 80
• Minimum Circuit Ampacity (Amps): 68.875
• Min./Max. Voltage: 420-500
• Power Connection: Color Coded Cam Locks
• Power Quality Control: Internal Phase and Power Monitor
• Skid: 12 Gauge G90 Galvanized Steel With Epoxy Powder-coat
• Cabinet: 16 Gauge G90 Galvanized Steel With Epoxy Powder-coat
• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Digital
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes
• Installation Type: Portable
• Refrigerant Type: R454B
• Energy Star: No
• CFMs: 9500
• Fan Speeds: 1
• Includes Heat Mode: No
• Cooling BTUs: 270000
• Cooling Amps: 61.1
• Bucket Capacity: NA
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 30° - 110°
• Voltage: 460V
• Phase: 3
• Rec. Circuit Breaker Size (Amps): 80
• Certifications: ETL
• Max. Circuit Ampacity: 71.15
