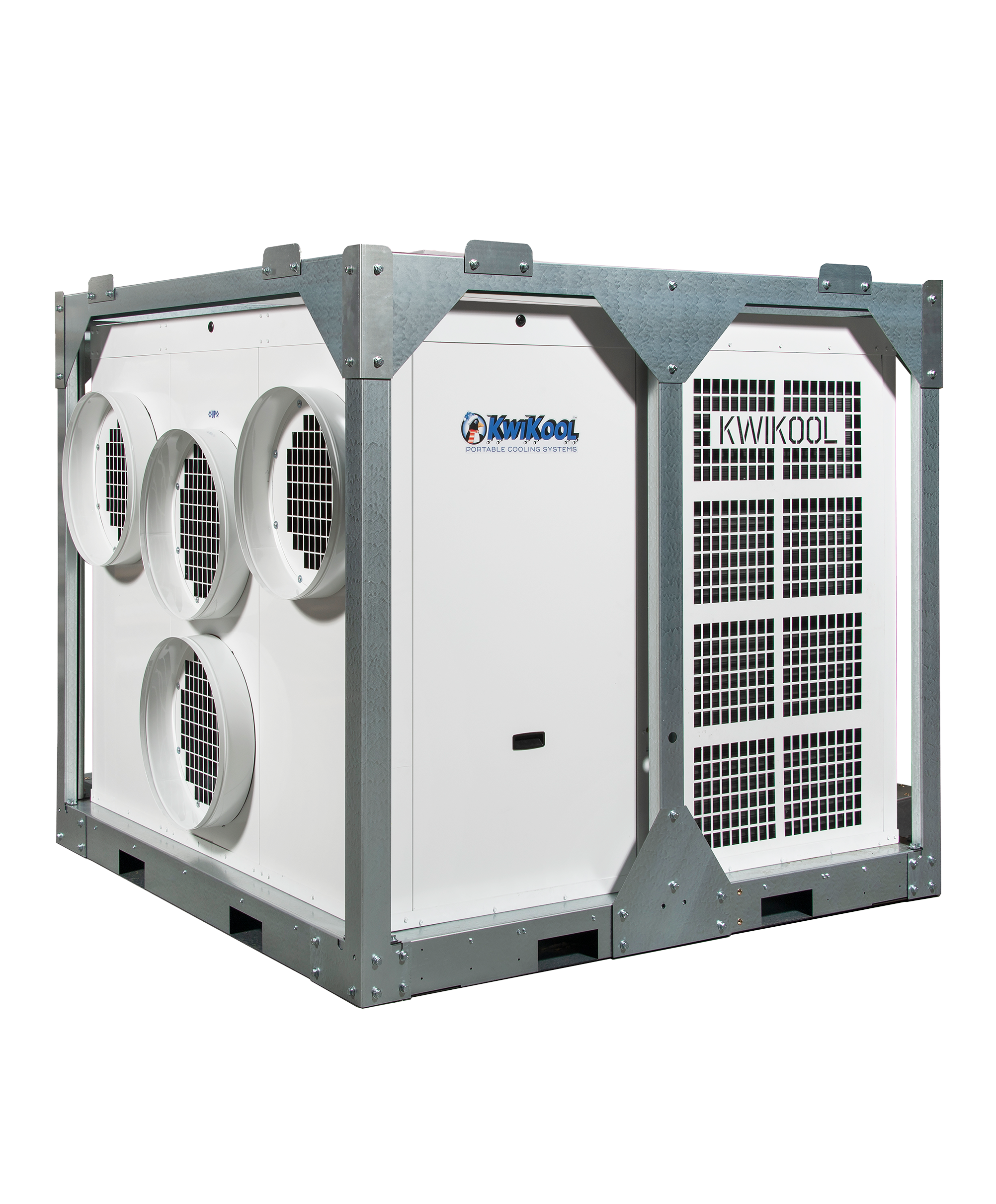

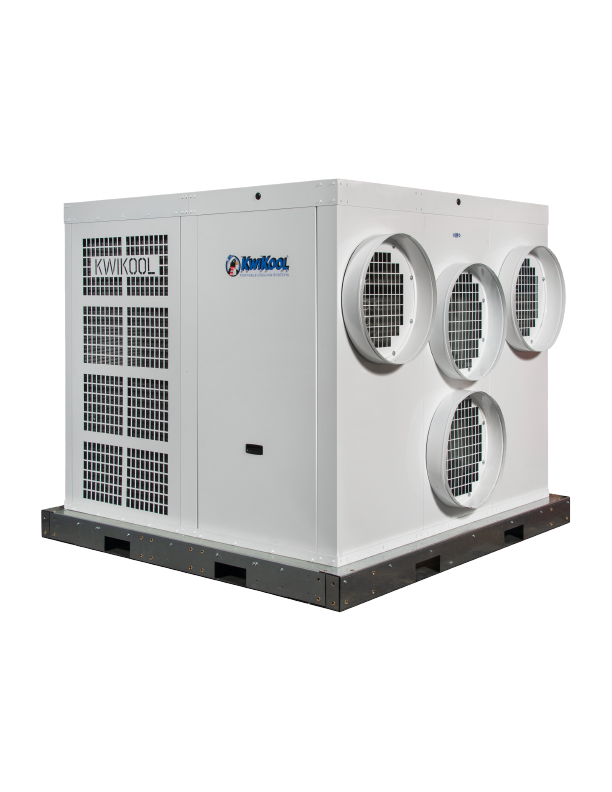

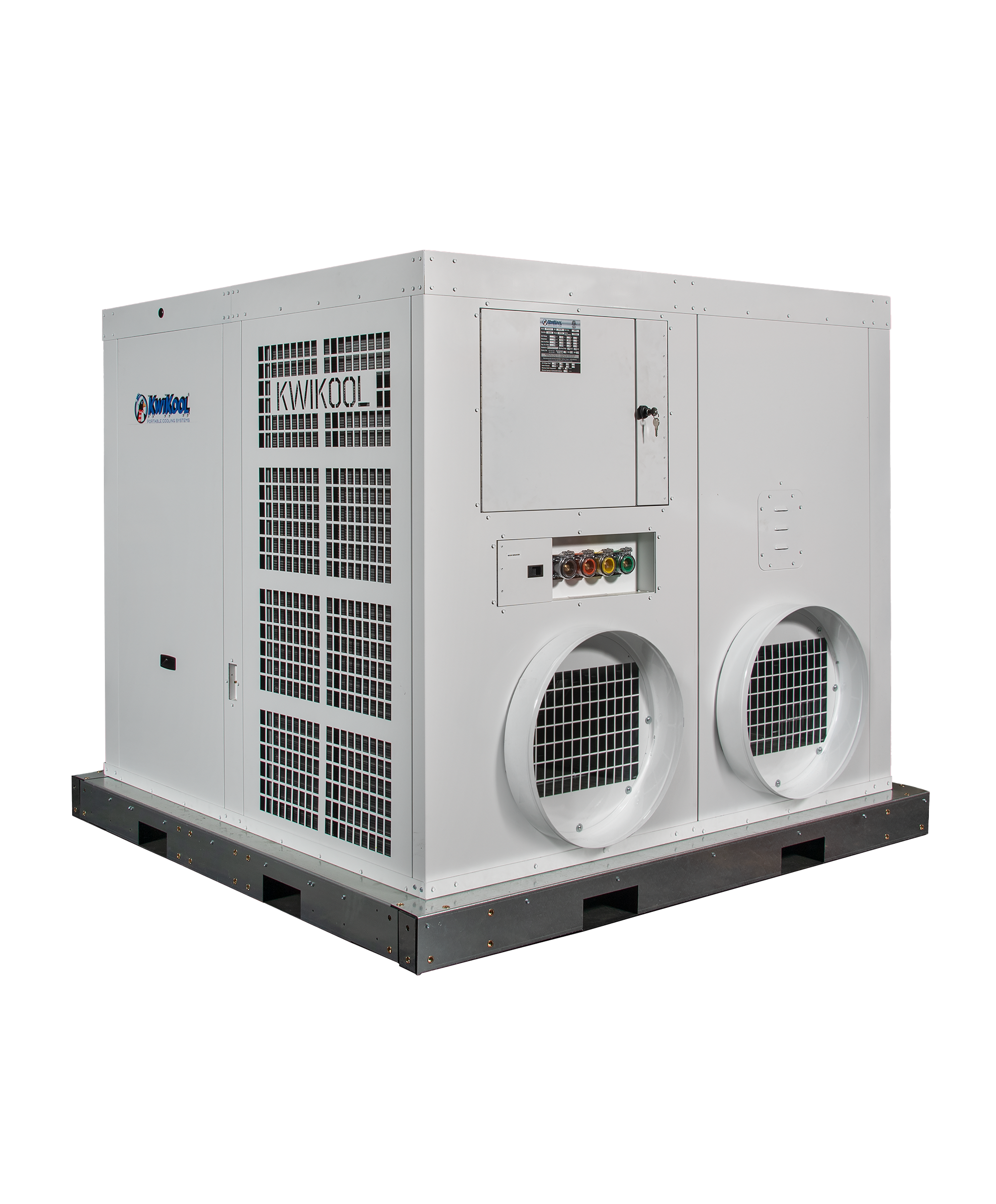

Kwikool KPO25-43-3 Indoor/Outdoor Portable Air Conditioner 270,000 BTU

Product Description

The KWIKOOL KPO25-43-3 (25-ton or 270,000 Btu) is a versatile unit with a small footprint suitable for applications with limited space. It features a heavy-duty 12 gauge steel base with forklift access for easy transport. Designed for outdoor placement with ducting to the target area, it uses high static blowers for effective cooling. Operates on a 460-volt/80-amp 3-phase circuit with Cam Lock Connections.

• Features a heavy-duty 12 gauge steel base with forklift skid access.
• Runs on a 460-volt/80-amp 3-phase circuit with built-in Cam Lock Connections.
• Offers Low Ambient Temperature Capability using a Variable Frequency Drive.

Product Highlights

This Kwikool portable air conditioner is ideal for cooling areas with high heat concentration, offering advanced airflow and electrical protection.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KPO25-43-3
• Country of Origin: USA

Technical Specifications

• COOLING CAPACITY BTU/hr @ 95 F at 60% RH: 270,000 (25-Ton)
• Operating Temperatures: 30-110 F 50% RH
• HEATING (OPTIONAL) Heat Strips/BTU: 48kW/166,600
• COMPRESSOR DATA Compressor Type: Dual Scroll x2 each
• Refrigerant: R 454 B
• FAN DATA Evaporator Fan Type (Centrifugal): Hyper Drive x4
• Air Flow (CFM): 14,000
• Supply and Return Air Device: 2-20" flanges for supply duct and 2-20" flange for return duct
• Maximum Duct Length: 75'
• Condenser Fan Type (Centrifugal): Belt Drive
• Condenser Exhaust Flange: 20" x2
• Condenser Duct Max. Length: 100'
• Condenser Fan Speed Speed Control: Variable Frequency Drive
• ELECTRICAL DATA Power Supply (Volts): 460 Three Phase
• Current Consumption (Amps): 61.1
• Power Consumption (kW): 43.76
• Maximum Circuit Breaker (Amps): 100
• Recommended Breaker Size: 80
• Minimum Circuit Ampacity (Amps): 68.875
• Min./Max. Voltage: 420-500
• Power Connection: Color Coded Cam Locks
• Power Quality Control: Internal Phase and Power Monitor
• CONSTRUCTION Skid: 12 Gauge G90 Galvanized Steel With Epoxy Powder-coat
• Cabinet: 16 Gauge G90 Galvanized Steel With Epoxy Powder-coat
• SAFETY DEVICE DATA Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Digital
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes
• Operating range: Wide Operating range of 60ºF-110ºF
• Condensing temperature controls: Low ambient condensing temperature controls utilizing Variable frequency drive technologies
• Standards: ETL and CETL listed to UL and CSA standards
• Control: Multi-function Digital control with a large, easy-to-read LCD display
• Air Filter Size: 20 x 24 x 2 & 24 x 24 x 2 in
• Number of Speeds: 1
• Watts Cooling: 4,260 W
• Hertz: 60 Hz
• Amp Circuit: 80 A
• Amps Cooling: 59.4 A
• Temperature Range Cooling: 30 To 110 °F
• Voltage: 460 V
• Ton: 25
• Description: Outdoor Rated
• Cooling System: Air
• Refrigerant Type: R454B
• Energy Star: No
• Fan Speeds: 1
• Includes Heat Mode: No
• Bucket Capacity: NA
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 30° - 110°
• Max. Duct Length: 400' Total (Supply / Return)
• Max. Circuit Ampacity: 71.15
• Rec. Circuit Breaker Size (Amps): 80
