Product Description

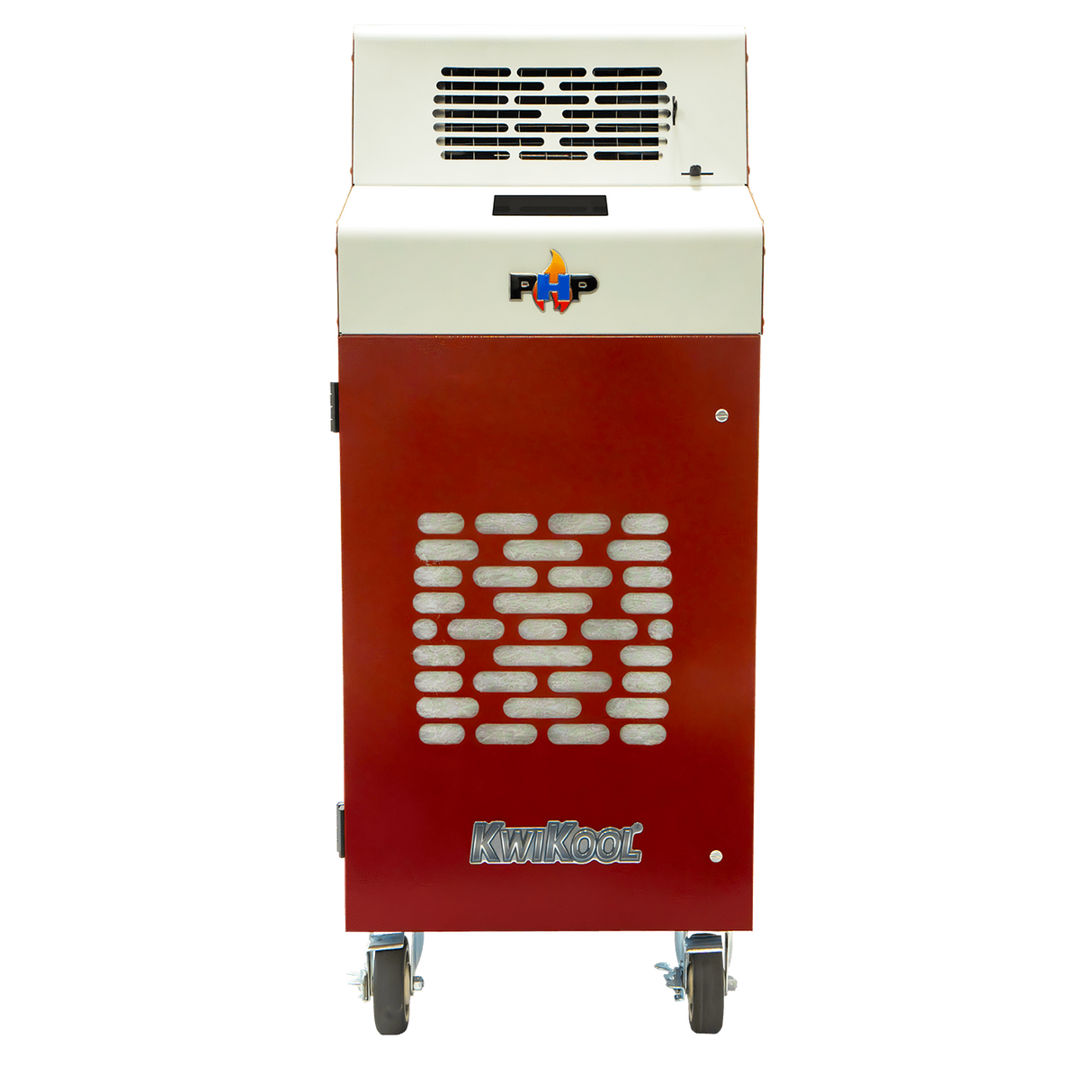

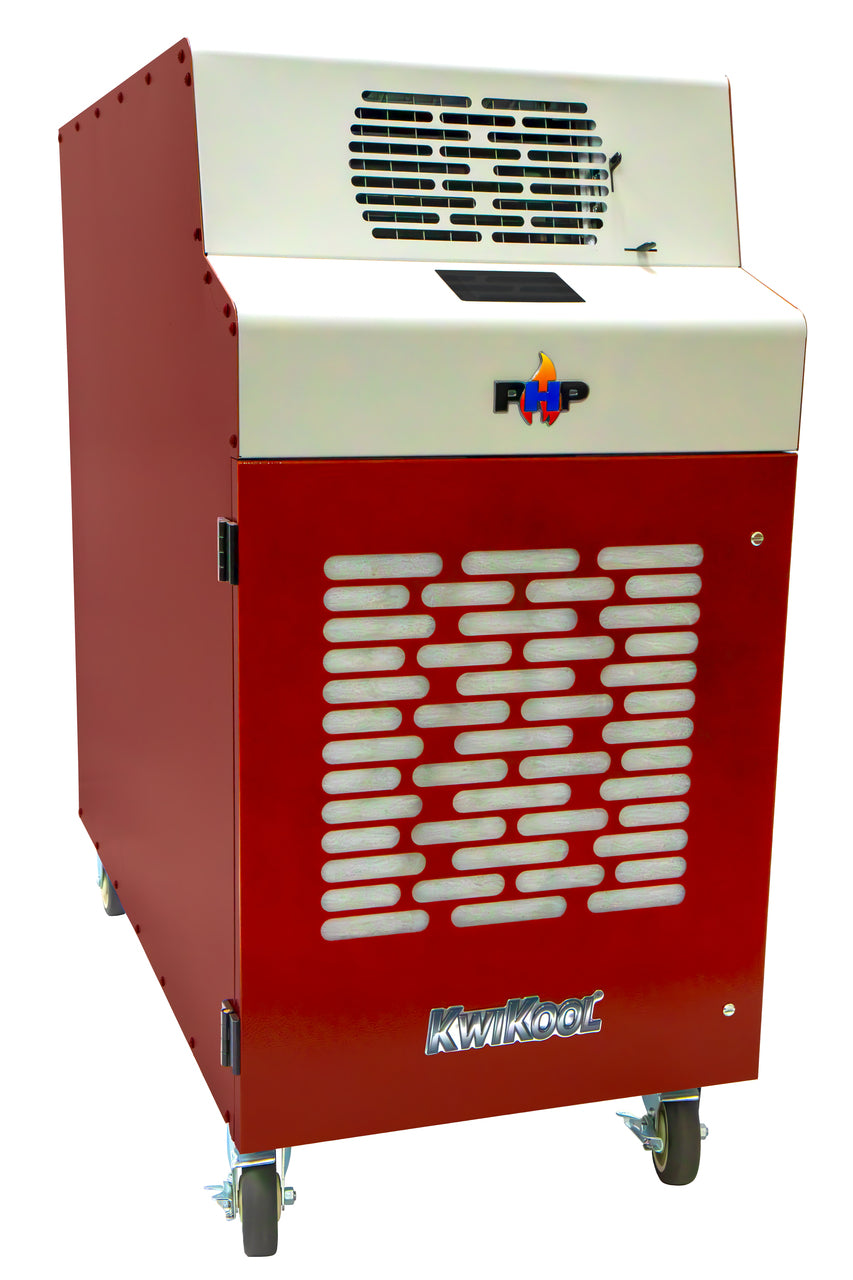

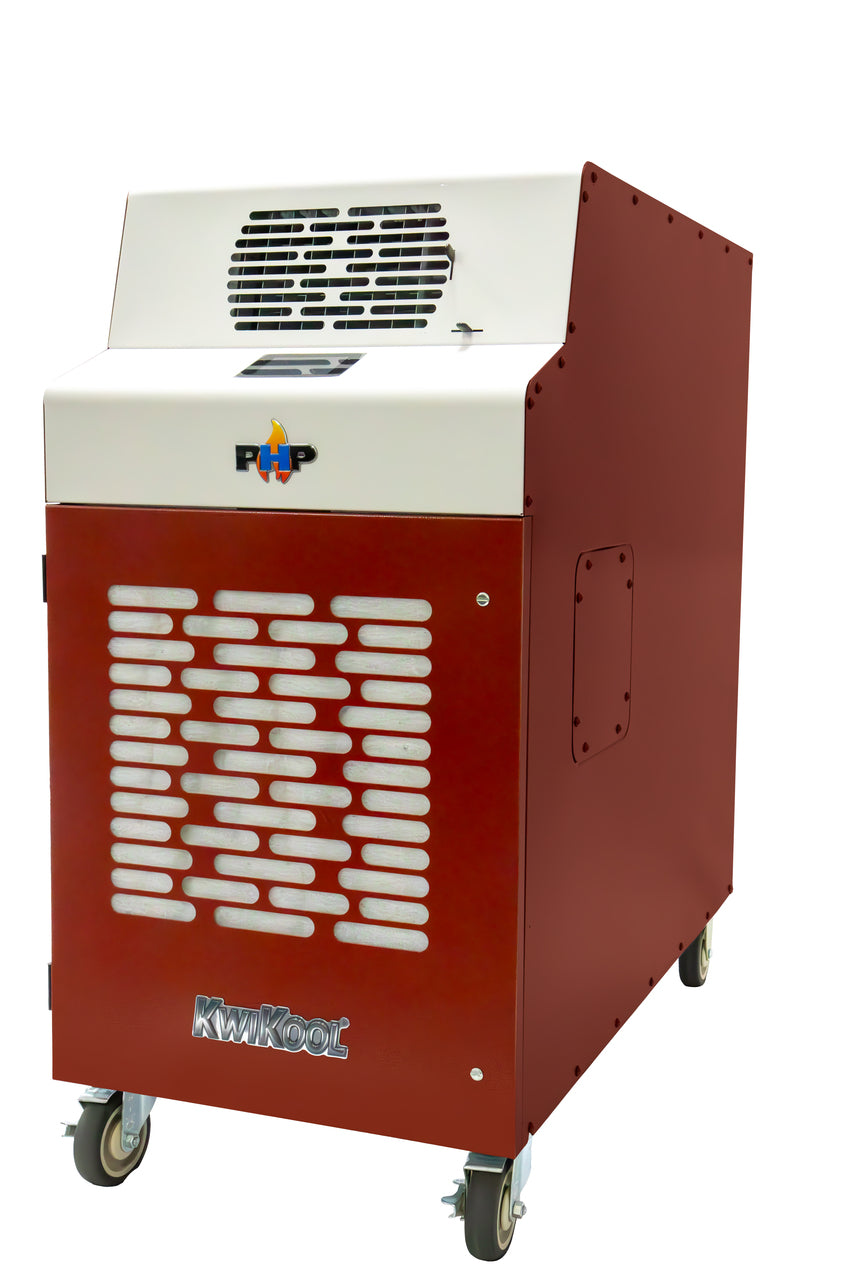

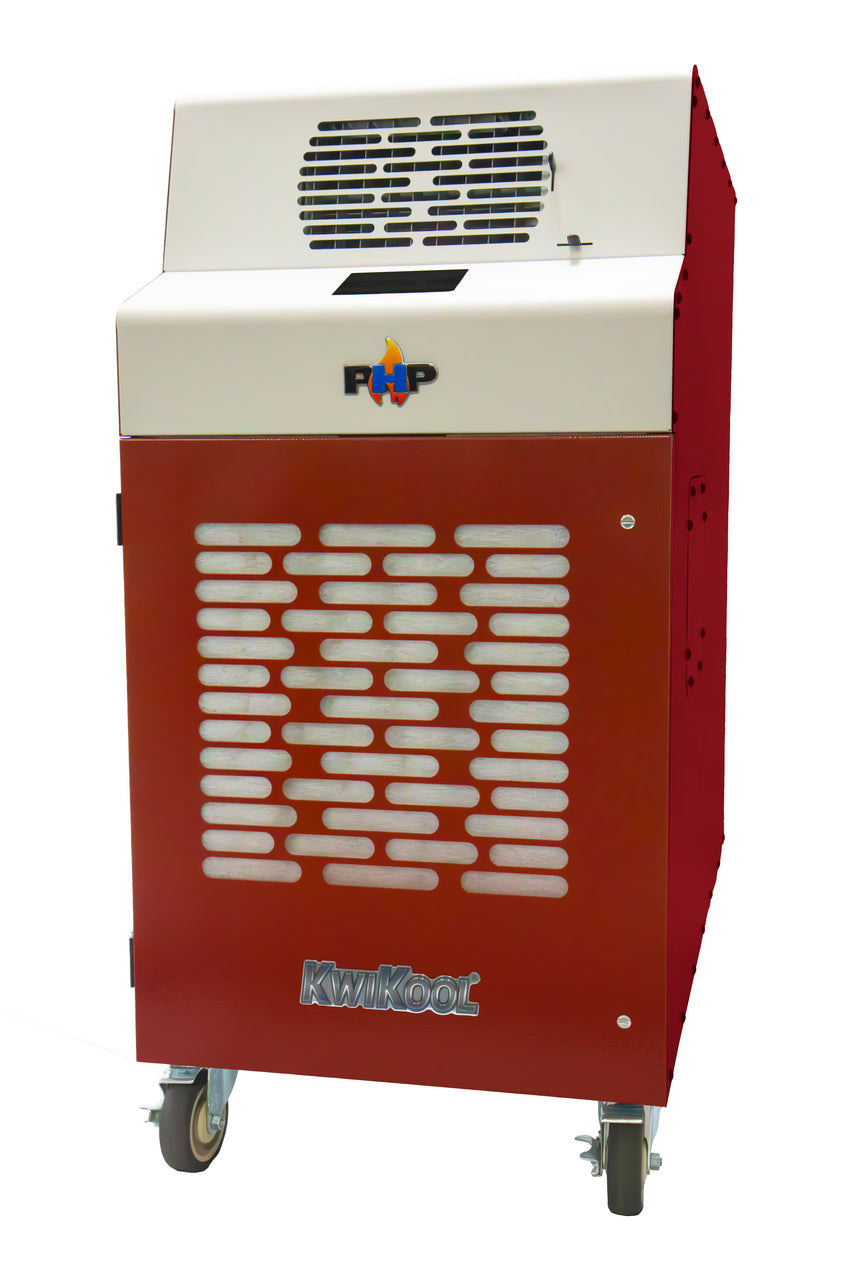

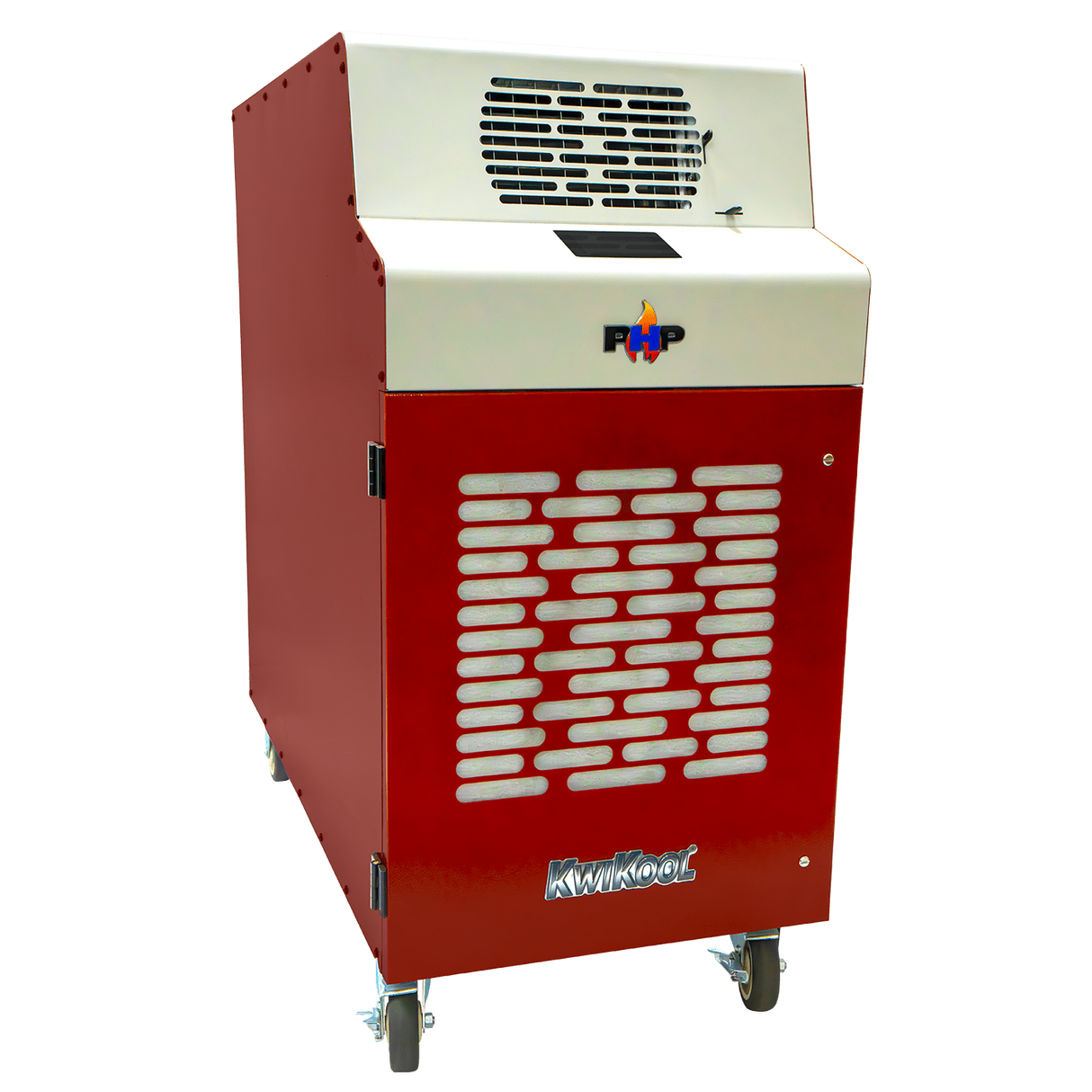

The KwiKool KPHP2211-3 is a portable heat pump providing 17,700 BTU cooling and 21,240 BTU heating capacities. Designed for comfort cooling and heating, it features plug-and-play technology. The unit operates down to 45 degrees F and runs on a standard 115-volt/20-amp circuit with auto restart. It includes an internal condensate pump and a 5-gallon exterior condensate tank.
- MADE IN USA
- 17,700 BTU/H – 1.5-ton capacity Cooling and 21,240 BTU/H – 1.8-ton capacity Heating
- Runs on 115V 20 amp circuit and operates down to a 45 degree F ambient environment
Product Highlights
The KwiKool KPHP2211-3 offers portable cooling and heating, featuring easy-to-use controls, automatic restart, and a durable design for versatile applications.
Product Information
Standard Information
-
Brand: KWIKOOL
-
Manufacturer Part Number: KPHP2211-3
-
Country of Origin: USA
Technical Specifications
-
HEATING BTU/hr @ 55F at 60% RH: 21,240 (Nominal 1.8-Ton)
-
COOLING BTU/hr @ 95F at 60% RH: 17,700 (Nominal 1.5-Ton)
-
Compressor Type: Hermetic Rotary
-
Operating Cooling Temperatures: 60-110 F 50%RH
-
Operating Heating Temperatures: 40-80 F 50% RH
-
Refrigerant Type: R454B
-
Fan Type (Centrifugal): Direct Drive
-
Air Flow (CFM) Evaporator: 600
-
Supply Air Device: Adjustable Vent
-
Supply Air Chute Kit (optional): 2 - 6" Dia. x 18" Length
-
I/O Integral Condenser: Balanced Air Flow
-
Fan Type (Centrifugal) Condenser: Direct Drive
-
Air Flow (CFM) Condenser: 950
-
Condenser Duct Specs (optional): 2 - 14" Dia. x 8' Length
-
Condenser Duct Max. Length: 25'
-
Power Supply (Volts): 115/Single Phase
-
Current Consumption (Amps) Cooling: 16
-
Current Consumption (Amps) Heating: 15.5
-
Power Consumption (kW): 1.84
-
Maximum Circuit Breaker (Amps): 30
-
Recommended Breaker Size: 20
-
Minimum Circuit Ampacity(Amps): 19.975
-
Min./Max. Voltage: 105-125
-
Power Cord Gauge/Length: 12/6'
-
Plug Configuration: NEMA 5-20
-
Compressor Overload: External
-
Fan Motor Overload: Automatic Internal
-
Evaporator Freeze Protection: Hot Gas Bypass
-
High Pressure Switch: Manual
-
Low Pressure Switch: Automatic
-
Compressor Short Cycle: Yes
-
Automatic Restart: Yes
-
Thermostat Type: Microprocessor/Digital
-
Condensate Pump Overflow: Yes
-
Condensate Tank Overflow: Yes
-
Installation Type: Portable
-
Energy Star: No
-
Fan Speeds: 2 - Auto / On
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump
-
Cooling BTUs: 17700
-
Heating BTUs: 21240
-
Bucket Capacity: 5 gal.
-
High Level Alarm: Yes
-
Auto Shut Off: Yes
-
Control Type: Electronic Touch Pad
-
Drain Pump: Yes
-
Ambient Temperature - Cooling: 60° - 110°
-
Ambient Temperature - Heating: 40° - 80°
-
Max. Length Condenser Duct (ft.): 25'
-
Net Weight (lbs.): 278
-
Voltage: 110-120V
-
Plug Face (NEMA): 5-20P
-
Min. Circuit Ampacity: 19.975
-
Max. Circuit Breaker Size (Amps): 30
-
Rec. Circuit Breaker Size (Amps): 20
-
Cord Length: 6 ft.
-
Certifications: ETL
-
Application: Commercial
-
ASHRAE Cooling Power (BTUs): [17700]
-
Internal Condensate Pump: Yes
-
Maximum Cubic Feet per Minute (CFM) (CFM): 600.0
-
Maximum Noise Level (dB): 59
-
Maximum Operating Temperature (degrees F): 110
-
Maximum Thermostat Setting (degrees F): 105
-
Minimum Operating Temperature (degrees F): 40
-
Minimum Thermostat Setting (degrees F): 60
-
Moisture Removal per Hour (pints): 0
-
Recommended Coverage Area (sq. ft.): 600
-
Recommended For: Server Room & Precise Indoor Applications, Education & Government Facilities, Office & Industrial Facilities, Comfort Cooling & Heating
-
Self-Evaporation: Partial
-
Maximum Amperage (Amps): 16.2
-
Maximum Wattage (W): 1650
-
Power Cord Length (ft.): 6
-
Depth (in.): 41.0
-
Depth (with front cover) (in.): 41.0
-
Height (in.): 43.25
-
Height (with front cover) (in.): 43.25
-
Vent Hose Diameter (in.): 12
-
Vent Hose Length (ft.): 25
-
Width (in.): 20.25
-
Width (with front cover) (in.): 20.25
-
Additional Features: Full Bucket Indicator/Auto Shutoff, Adjustable Louvers, Fan-Only Mode, Auto-Restart, Applicable for Indoor Growing
-
Condensate Pump Safety Cut-ooff: Yes
