Product Description

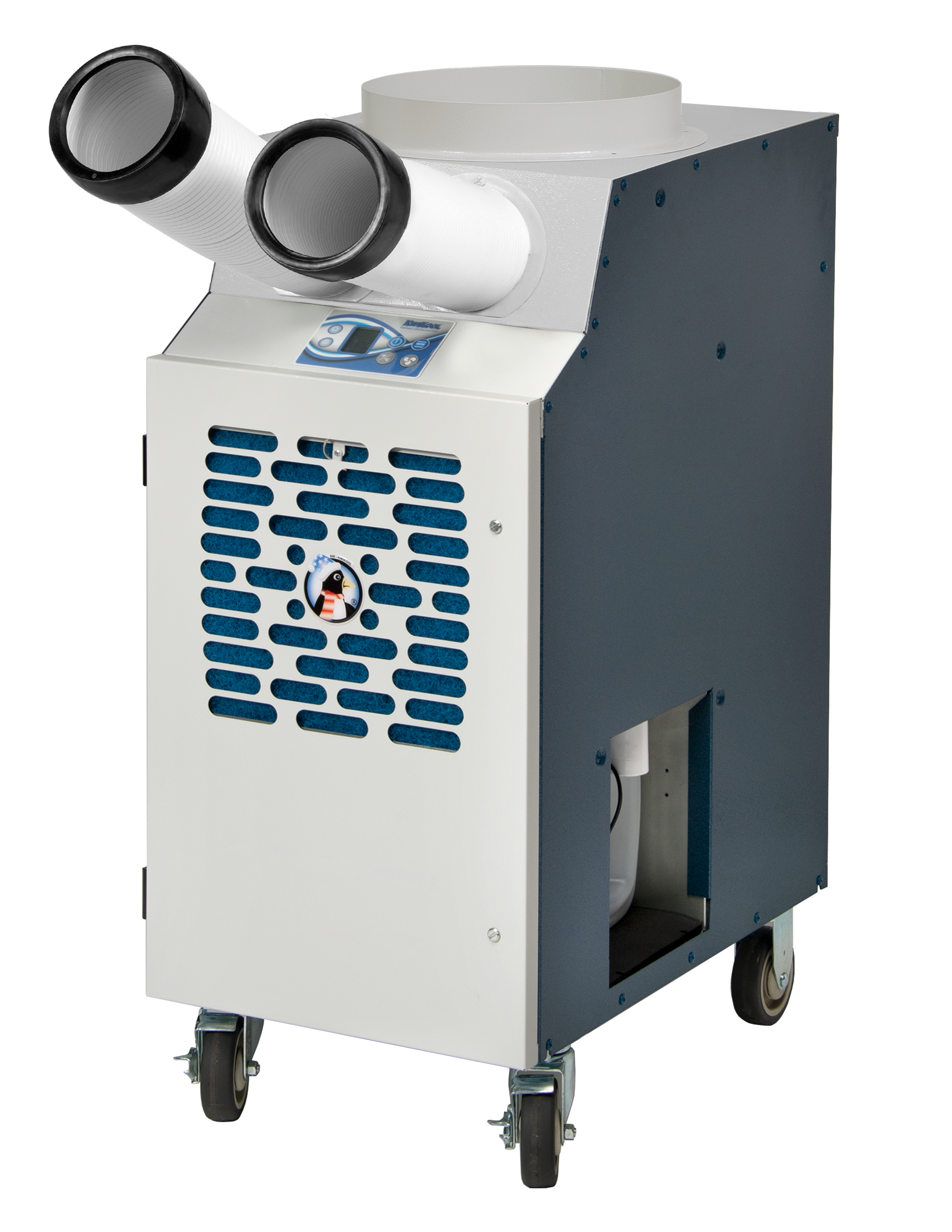

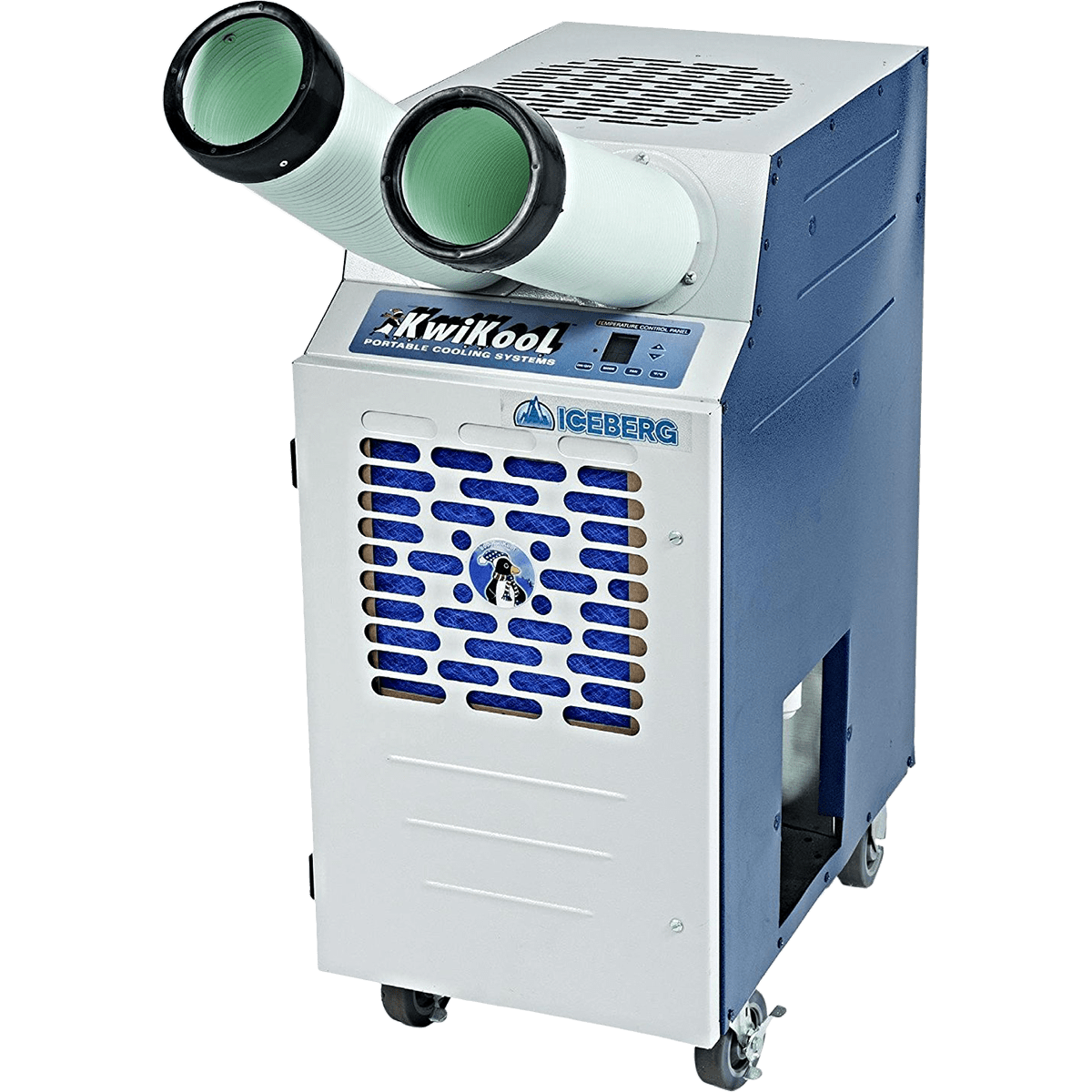

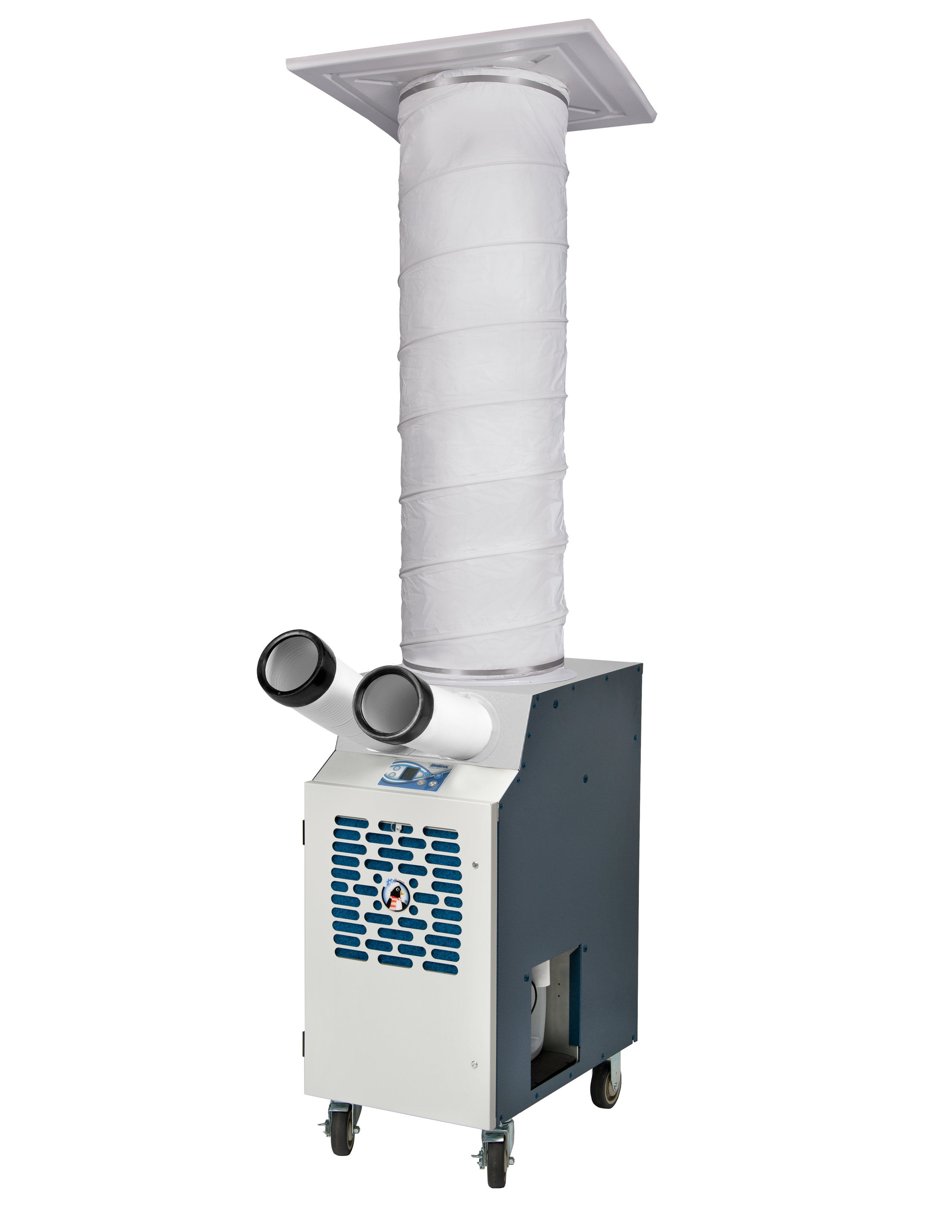

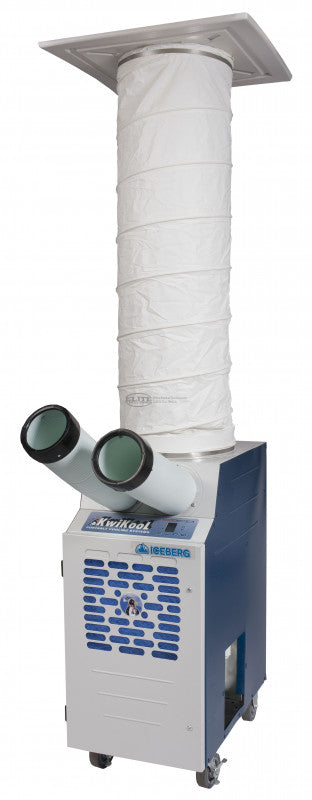

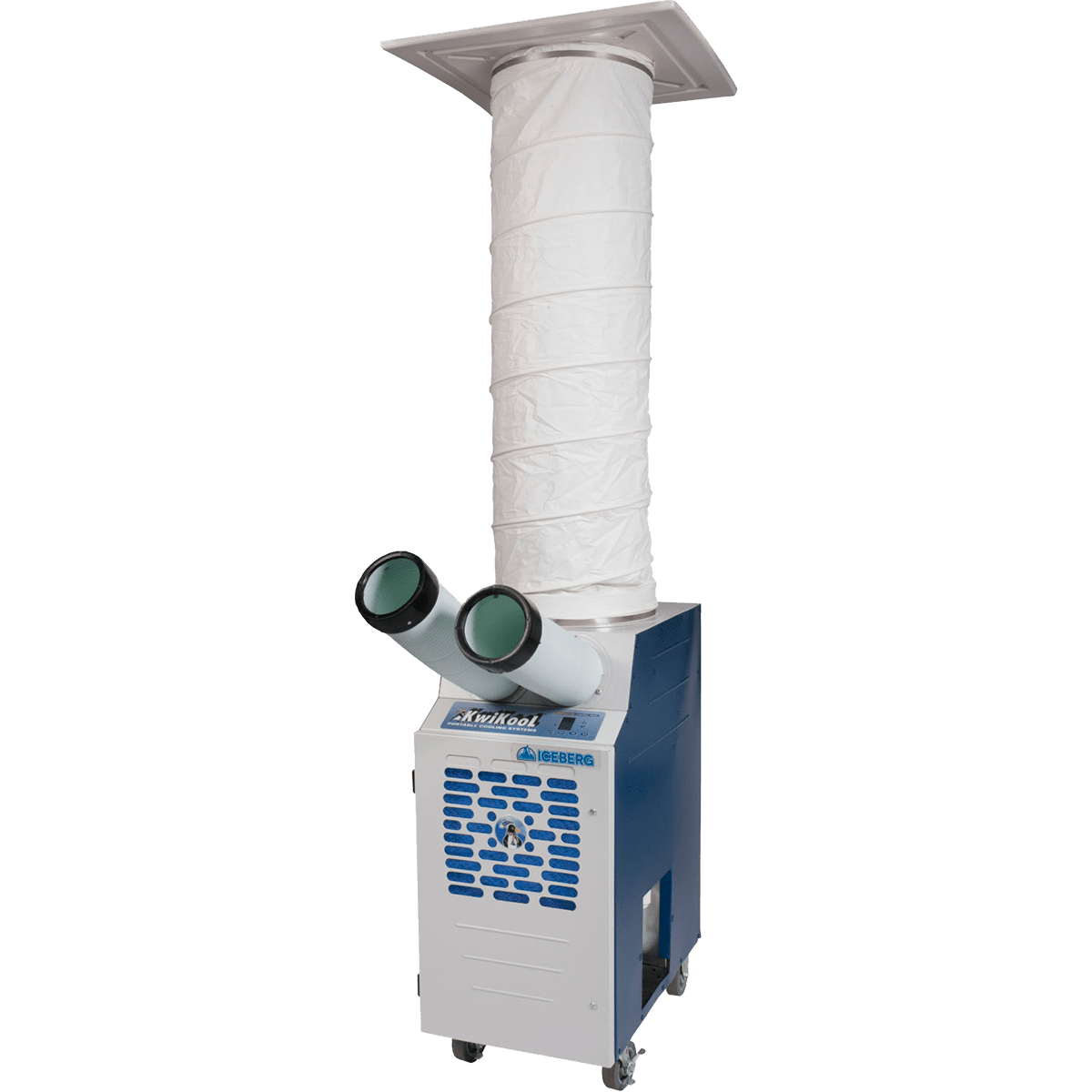

The KWIKOOL KPAC1811-3 Kpac1811-3 is a single duct portable air conditioner with a 1.5-ton capacity, delivering 16,800 BTU. Designed for spot cooling in high ambient environments, it features a compact footprint and runs on a 115V 20 amp circuit. It is equipped with a 2.5-gallon self-contained condensate tank and automatic restart after power failure.
- Provides 16,800 BTU/H cooling capacity.
- Operates on a standard 115V 20 amp circuit.
- Features a 2.5-gallon self-contained condensate reservoir tank.
Product Highlights
This portable air conditioner is ideal for spot cooling people or equipment in high-temperature environments, offering easy installation and efficient cooling.
Product Information
Standard Information
-
Brand: KWIKOOL
-
Manufacturer Part Number: KPAC18113
-
Country of Origin: USA
Technical Specifications
-
Cooling Capacity: 16,800 (1.5-Ton)
-
Compressor Type: Hermetic Rotary
-
Operating Temperatures: 70-105 F 50%RH
-
Refrigerant Type: R-454B
-
Evaporator Fan Type (Centrifugal): Direct Drive
-
Air Flow (CFM): 625
-
Supply Air Device: 2 - 5" Dia. x 16" Air Chute
-
Supply Air Duct max. length: 25'
-
Condenser Fan Type (Centrifugal): Direct Drive
-
Condenser Duct Specs (optional): 1 - 12" Dia. x 8' Length
-
Condenser Duct Max. Length: 25'
-
Power Supply (Volts): 115/Single Phase
-
Current Consumption (Amps): 15.6
-
Power Consumption (kW): 1.61
-
Maximum Circuit Breaker (Amps): 20
-
Recommended Breaker Size: 20
-
Minimum Circuit Ampacity (Amps): 18.5
-
Min./Max. Voltage: 105-125
-
Power Cord Gauge/Length: 12/6'
-
Plug Configuration: NEMA 5-20
-
Compressor Overload: External
-
Fan Motor Overload: Automatic Internal
-
Evaporator Freeze Protection: Optional Freeze Stat
-
High Pressure Switch: Manual
-
Compressor Short Cycle: Yes
-
Automatic Restart: Yes
-
Thermostat Type: Microprocessor/Digital
-
Condensate Pump Overflow: Optional
-
Condensate Tank Overflow: Yes
-
Maximum Cubic Feet per Minute (CFM): 625.0
-
Internal Condensate Pump: No
-
Application: Commercial
-
Certifications: ETL
-
Heat Mode: No
-
Hose Type: Dual Hose
-
Maximum Noise Level (dB): 54
-
Maximum Operating Temperature (degrees F): 110
-
Maximum Thermostat Setting (degrees F): 100
-
Minimum Operating Temperature (degrees F): 60
-
Minimum Thermostat Setting (degrees F): 70
-
Moisture Removal per Hour (pints): 0
-
Recommended Coverage Area (sq. ft.): 500
-
Recommended For: Outdoor Events & Emergency Cooling, Server Room & Precise Indoor Applications, Education & Government Facilities, Office & Industrial Facilities, Comfort Cooling & Heating
-
Maximum Amperage (Amps): 14.5
-
Maximum Wattage (W): 1500
-
Power Cord Length (ft): 8
-
Voltage (V): 110-120
-
Depth (in.): 26.0
-
Height (in.): 37.25
-
Vent Hose Diameter (in.): 12
-
Vent Hose Length (ft): Up to 25
-
Width (in.): 16.325
-
Additional Features: Full Bucket Indicator/Auto Shutoff, Fan-Only Mode, Auto-Restart, Applicable for Indoor Growing
-
Installation Type: Portable
-
CFMs: 625
-
Fan Speeds: 1
-
Cooling BTUs: 16800
-
Cooling Amps: 14.5
-
Bucket Capacity: 3 gal.
-
High Level Alarm: Yes
-
Auto Shut Off: Yes
-
Control Type: Electronic Touch Pad
-
Drain Pump: No
-
Ambient Temperature - Cooling: 70° - 105°
-
Max. Supply Air Duct Length: 25'
-
Condenser Duct (Optional): 1 - 12” dia. x 8'
-
Max. Length Condenser Duct (ft.): 25'
-
Overall Width (in.): 16
-
Overall Depth (in.): 26
-
Overall Height (in.): 37
-
Net Weight (lbs.): 157
-
Plug Face (NEMA): 5-20P
-
Min. Circuit Ampacity: 19.17
-
Max. Circuit Breaker Size (Amps): 20
-
Rec. Circuit Breaker Size (Amps): 20
-
Cord Length: 8 ft.
-
Capacity: 1.5 Tons
-
Product Dimensions: 26"D x 16.38"W x 37.25"H
-
Seasonal Energy Efficiency Ratio (SEER): 13
-
Power Source: AC
-
Form Factor: Portable
-
Inverter Type: No Inverter
-
Is Outdoor Unit Required: No
-
Air Conditioner Application: Commercial
-
Power: Voltage 115 Volts (AC)
-
Wattage: 2300 watts
-
Item Dimensions D x W x H: 26"D x 16.38"W x 37.25"H
-
Item Weight: 157 Pounds
-
Control Method: Push Button
-
Controller Type: On-Unit Digital Control
-
Efficiency: 13
-
Floor Area: 600 Square Feet
-
Number Of Circuits: 1
