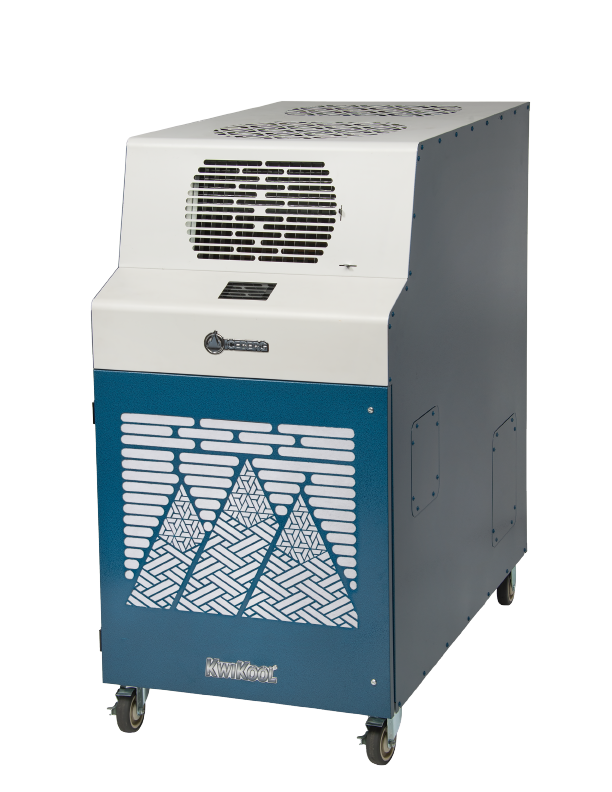

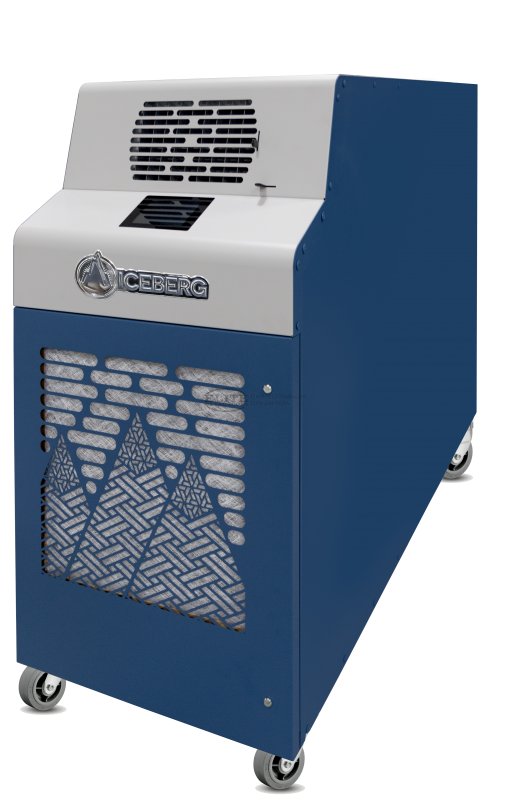

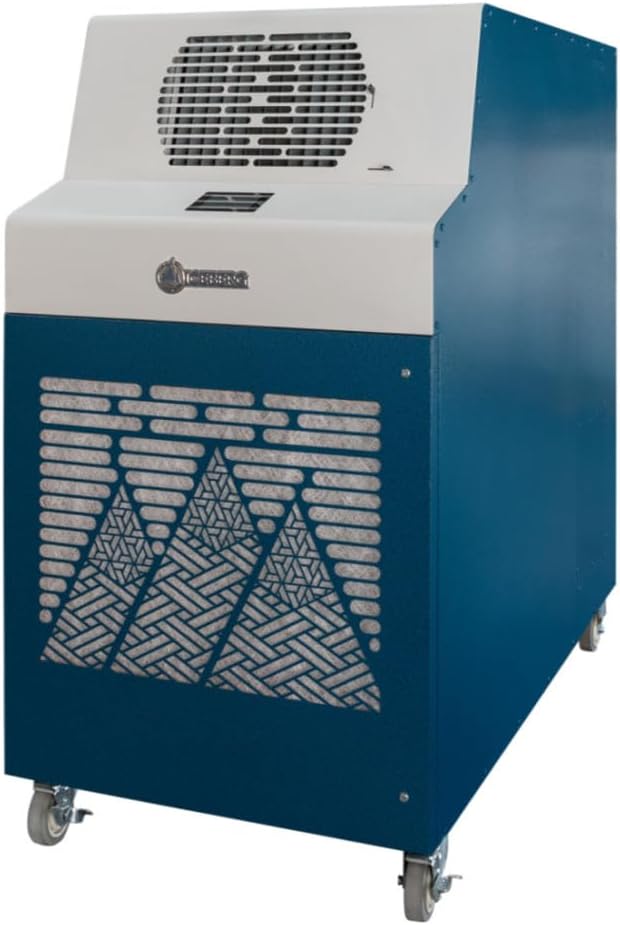

Kwikool KIB6021-3 Iceberg Series 60,000 BTU 5 Ton

Product Description

The KwiKool KIB6021-3, from the Iceberg Series, delivers 60,000 BTU of portable air conditioning for primary or backup cooling. Designed with a balanced air system, it is suitable for cooling server rooms. Features include microprocessor controls, self-diagnostics, and KwiKool’s I/O Integral Condenser for efficient cooling. It requires a 230-volt/50-amp single-phase circuit and includes an internal high lift condensate pump and a 5-gallon exterior condensate tank.

• MADE IN USA
• 60,000 BTU/H – 5 Ton capacity air-cooled
• Wide Operating range of 60°F-110°F

Product Highlights

The KIB6021-3 provides powerful, portable cooling with user-friendly controls and robust construction, ideal for critical environments.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KIB6021-3
• Country of Origin: USA

Technical Specifications

• COOLING CAPACITY: BTU/hr @ 95F at 60% RH 60,000 (5-Ton)
• Compressor Type: Scroll
• Operating Temperatures: 60-110 F 50%RH
• Refrigerant: R 454 B
• Fan Type (Centrifugal): Direct Drive
• Air Flow (CFM): 3500
• Supply Air Device: Adjustable Vent
• Supply Air Chute Kit (optional): 2 - 10" Dia. x 24" Length
• Condenser: I/O Integral Condenser
• Balanced Air Flow: None
• Condenser Duct Specs (optional): 2 - 18" Dia. x 8' Length
• Condenser Duct Max. Length: 25'
• Input Voltage: 230 Single Phase
• Current Consumption (Amps): 38.5
• Power Consumption (kW): 7.97
• Maximum Circuit Breaker (Amps): 60
• Recommended Breaker Size: 50
• Minimum Circuit Ampacity: 44.675
• Min./Max. Voltage: 195-250
• Power Cord Gauge/Length: 6 AWG/10'
• Plug Configuration: Field Supplied
• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Microprocessor/Digital
• Condensate Pump Overflow: Yes
• Condensate Tank Overflow: Yes
• Voltage: 230V
• Installation Type: Portable
• Refrigerant Type: R454B
• Energy Star: No
• CFMs: 2000
• Fan Speeds: 3
• Includes Heat Mode: No
• Cooling BTUs: 60000
• Cooling Amps: 38.5
• Bucket Capacity: 5 gal.
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 60° - 110°
• Cord Length: 10 ft.
• Certifications: ETL
• Net Weight (lbs.): 523
• Overall Width (in.): 27
• Overall Depth (in.): 50
• Overall Height (in.): 54
• Rec. Circuit Breaker Size (Amps): 50
• Max. Circuit Breaker Size (Amps): 60
• Min. Circuit Ampacity (Amps): 44.675
