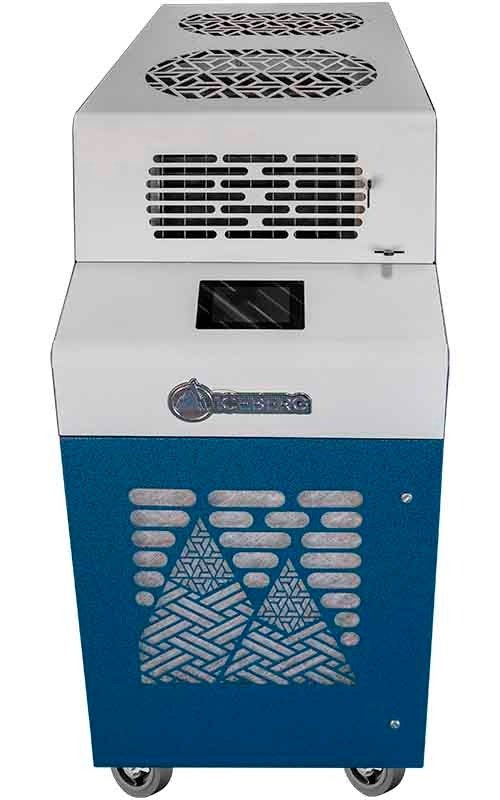

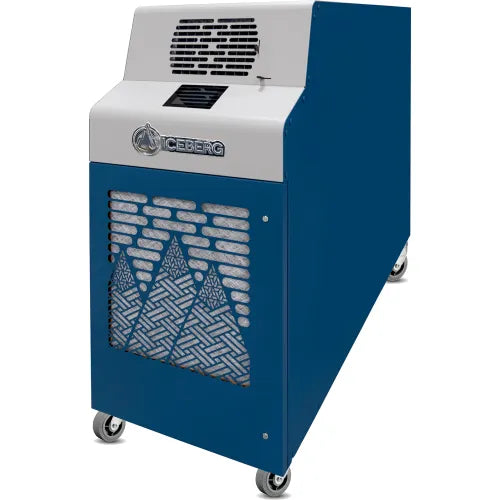

Kwikool KIB1411-3 Kib1411-3 13,850 BTU 1.1 Ton

Product Description

The KWIKOOL KIB1411-3 (nominal 1.1-ton) is the smallest unit in size and capacity in The Iceberg Series. With its full-featured design, high sensible cooling, and balanced air system, the KIB1411-3 is the perfect solution for cooling small server and IDF rooms. It runs on a standard 115-volt/15 or 20-amp circuit with an automatic restart after a power failure.

• MADE IN USA
• 13,850 BTU/H – 1.15 Ton capacity air-cooled
• Compact yet Powerful

Product Highlights

The KIB1411-3 features microprocessor controls, self-diagnostics, three fan speeds, and a 5-gallon condensate tank for total condensate flexibility. It uses R454B refrigerant and has heavy-duty locking casters.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KIB1411-3
• Country of Origin: USA

Technical Specifications

• COOLING CAPACITY BTU/hr @ 95F at 60% RH: 13,850 (1.1-Ton)
• Compressor Type: Hermetic Rotary
• Operating Temperatures: 60-110 F 50%RH
• Refrigerant: R 454 B
• Evaporator Fan Type (Centrifugal): Direct Drive
• Air Flow (CFM): 700
• Supply Air Device: Adjustable Vent
• Supply Air Chute Kit (optional): 2 - 5" Dia. x 16" Length
• Condenser: I/O Integral Condenser Balanced Air Flow
• Condenser Fan Type (Centrifugal): Direct Drive
• Condenser Duct Specs (optional): 2 - 12" Dia. x 8' Length
• Condenser Duct Max. Length: 25'
• Power Supply (Volts): 115 Single Phase
• Current Consumption (Amps): 12.8
• Power Consumption (kW): 1.49
• Maximum Circuit Breaker (Amps): 20
• Recommended Breaker Size: 15 or 20
• Minimum Circuit Ampacity (Amps): 19.575
• Min./Max. Voltage: 105-125
• Power Cord Gauge/Length: 14/6'
• Plug Configuration: NEMA 5-15
• Compressor Overload: External
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Microprocessor/Digital
• Condensate Pump Overflow: Yes
• Condensate Tank Overflow: Yes
• Evaporator Air Flow (CFM): 460/3 Speed
• Voltage: 110-120V
• Plug Face (NEMA): 5-20P
• Max. Circuit Breaker Size (Amps): 20
• Rec. Circuit Breaker Size (Amps): 15 or 20
• Cord Length: 6 ft.
• Certifications: ETL
• CFMs: 625
• Fan Speeds: 3
• Includes Heat Mode: No
• Cooling BTUs: 13850
• Cooling Amps: 12.8
• Bucket Capacity: 5 gal.
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 60° - 110°
