Kunkle Valve 6010HGM01-AM SET125

Product Description

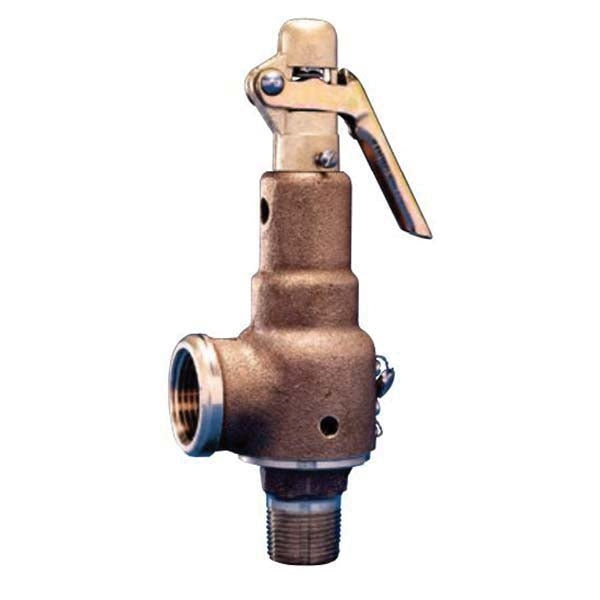

The Kunkle Valve 6010HGM01-AM SET125 is a bronze safety relief valve designed for steam applications. This valve features a size of one and a half inches by two inches with a connection type of NPT. It is rated for a pressure of one hundred twenty-five psi.

• O-ring seats offer leak-free performance.
• Wide hex on the valve nozzle enables easy installation.
• Dual control rings provide precise opening adjustments.

Product Highlights

This valve is built for high efficiency and low maintenance.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson

Technical Specifications

• Connection Size: 1-1/2 x 2 in
• Connection Type: NPT
• Dimension: 10-5/8 in H
• Disc Material: Brass
• Flow Coefficient: 0.878 Cv
• Item Name: Safety Relief Valve
• Material: Bronze
• Model: 6010HG
• Operator Type: Plain Lever Handle
• Pressure Rating: 125 psi
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
• Temperature Rating: -60 to 406 deg F
• Standards/Certifications: ASME I, IV, VIII, HV, V, UV, PED certified, CE approved
• Applications: For steam boilers and generators, air/gas compressors, pressure vessels and pressure reducing stations
