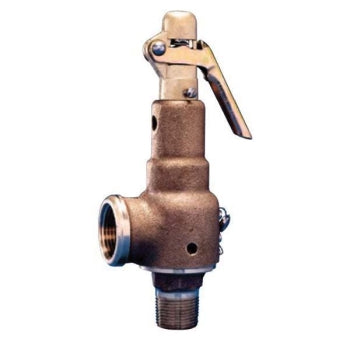

Kunkle Valve 6010GFM01-AM SET125 Valve 1-1/4 x 1-1/2 NPT 125 psi

Product Description

The Kunkle Valve 6010GFM01-AM SET125 is a bronze safety relief valve designed for applications involving steam and pressure regulation. This valve features a connection size of one and one-quarter inches by one and one-half inches, with a pressure rating of 125 psi, making it suitable for steam boilers, air/gas compressors, and pressure reducing stations.

• O-ring seats for exceptional leak-free performance
• Wide hex on valve nozzle for easy installation
• Heavy-duty casing and components for durability

Product Highlights

This valve offers efficient operation with low maintenance costs. Its dual control rings allow for easy adjustment, providing precise opening and minimal preopen.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson
• UPC: Not available

Technical Specifications

• Connection Size: 1-1/4 x 1-1/2 in
• Connection Type: NPT
• Dimension: 9-5/8 in H
• Disc Material: Brass
• Flow Co-efficient: 0.878 Cv
• Item Name: Safety Relief Valve
• Material: Bronze
• Model: 6010GF
• Operator Type: Plain Lever Handle
• Pressure Rating: 125 psi
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
• Temperature Rating: -60 to 406 deg F
• Standards/Certifications: ASME I, IV, VIII, HV, V, UV, PED certified, CE approved
