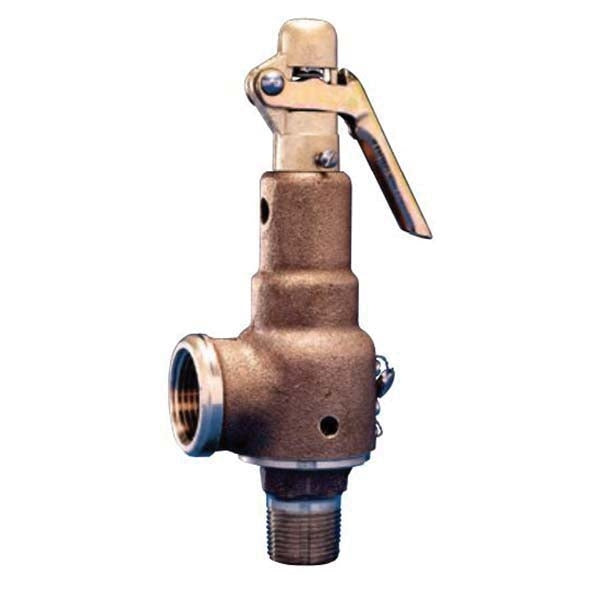

Kunkle Valve 6010FEM01-AM SET150

Product Description

The Kunkle Valve 6010FEM01-AMSET150 is a safety relief valve designed for steam applications. The valve features a one inch by one and a quarter inch NPT connection. It is rated for a maximum pressure of one hundred fifty psi, suitable for various industrial functions including boilers and pressure vessels.

• Exceptional leak-free performance with O-ring seats
• Wide hex valve nozzle for easy installation
• Heavy-duty casting ensures durability

Product Highlights

This valve is ideal for protecting steam boilers and other critical equipment from overpressure conditions.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson

Technical Specifications

• Connection Size: 1 x 1-1/4 in
• Connection Type: NPT
• Dimension: 8-3/4 in H
• Disc Material: Brass
• Flow Co-Efficient: 0.878 Cv
• Item Name: Safety Relief Valve
• Material: Bronze
• Model: 6010FE
• Operator Type: Plain Lever Handle
• Pressure Rating: 150 psi
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
• Temperature Rating: -60 to 406 deg F
