Kunkle Valve 6010DCM01-AM SET100

Product Description

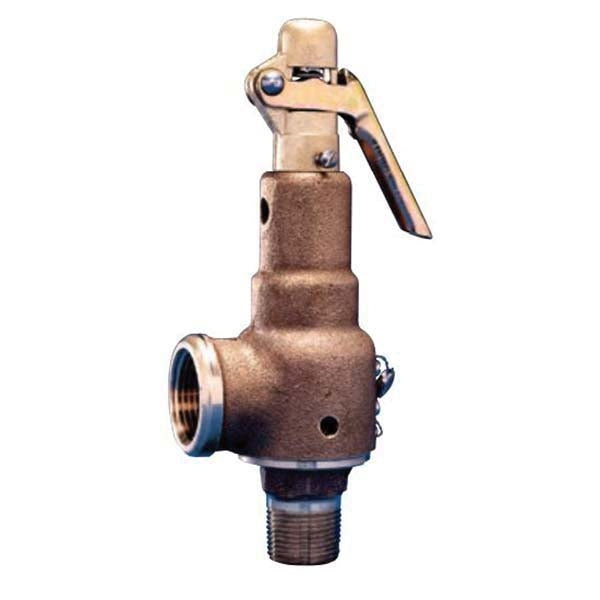

The Kunkle Valve 6010DCM01-AMSET100 is a bronze safety relief valve designed for steam applications. It features a connection size of one half by three fourths inches with NPT thread. This relief valve operates at a pressure rating of 100 psi. The bronze construction and brass disc material ensure durability and reliability in high-pressure environments.

• O-ring seats provide leak-free performance.
• Heavy-duty casting assures long-lasting service.
• Each valve undergoes inspection for pressure settings and leak testing.

Product Highlights

This valve is ideal for steam boilers, air and gas compressors, and pressure vessels.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson

Technical Specifications

• Connection Size: 1/2 x 3/4 in
• Connection Type: NPT
• Dimension: 6-1/2 in H
• Disc Material: Brass
• Flow Coefficient: 0.878 Cv
• Item Name: Safety Relief Valve
• Material: Bronze
• Model: 6010DC
• Operator Type: Plain Lever Handle
• Pressure Rating: 100 psi
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
• Temperature Rating: -60 to 406 deg F
• Standards/Certifications: ASME I, IV, VIII, HV, V, UV, PED certified, CE approved
• Applications: For steam boilers and generators, air/gas compressors, pressure vessels and pressure reducing stations
