Kulthorn AZ3414Y1 Compressor HBP LST 1/8HP 115V

Product Description

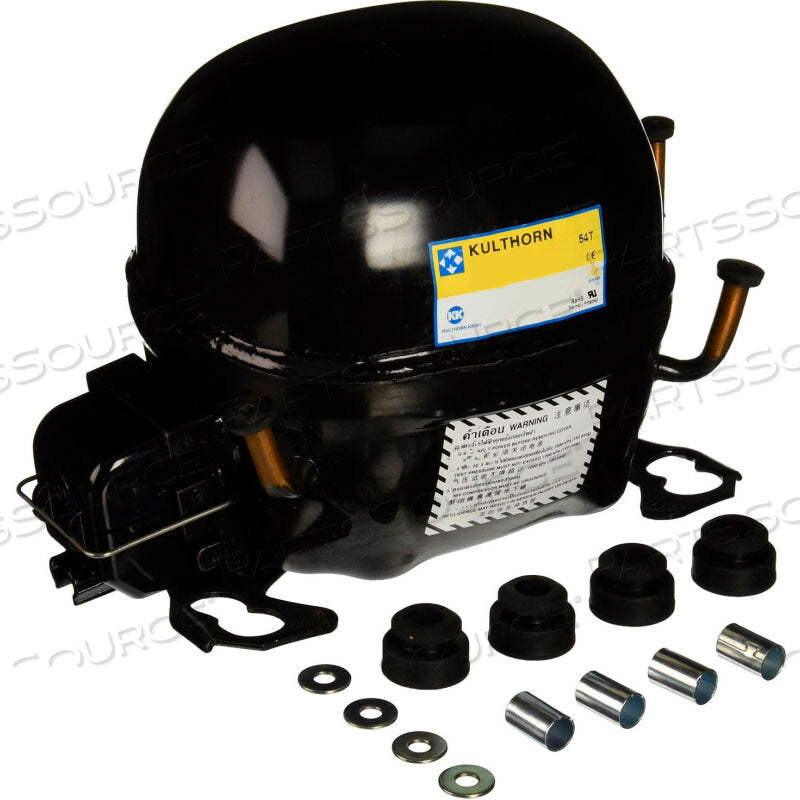

The Kulthorn AZ3414Y1 is a reliable compressor designed for various cooling applications. This unit operates on 115V power and has a motor rated at 1/8 horsepower. It is specifically engineered for high back pressure (HBP) applications, making it ideal for refrigerators and water coolers, effectively providing the necessary compression for cooling.

• Operates on 115V power.
• Features a 1/8 horsepower motor.
• Compatible with R134a refrigerant.

Product Highlights

Perfect for commercial and residential cooling solutions with dependable performance.

Product Information

Standard Information

• Brand: Kulthorn
• MPN: AZ3414Y1

Technical Specifications

• Horsepower: 1/8 HP
• Voltage: 115V
• Maximum Pressure: 125 PSI
• Flow Rate: 3 CFM @ 90 PSI
• Dimensions: 12 inches x 6 inches x 6 inches
• Weight: 15 lbs
• Refrigerant: R134a
• BTU: 1518 BTU @ 45°F
• Suction Size: 0.26 I.D.
• Discharge Size: 0.19 I.D.
• Phase: Single Phase
• Oil Charge: 370 cc
• Motor Type: Low Start Torque
• Application: Refrigerators; Water Coolers
