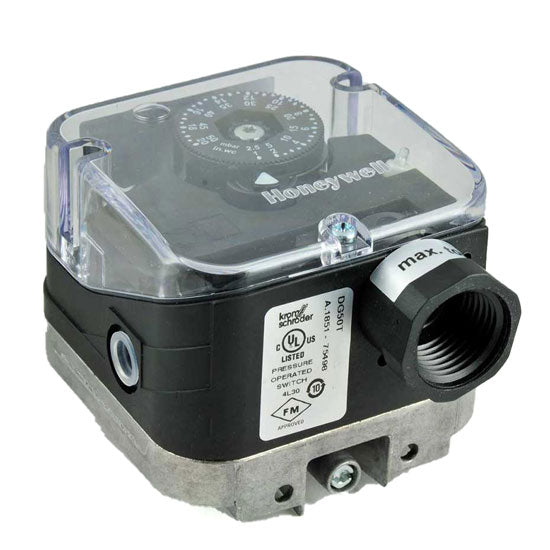

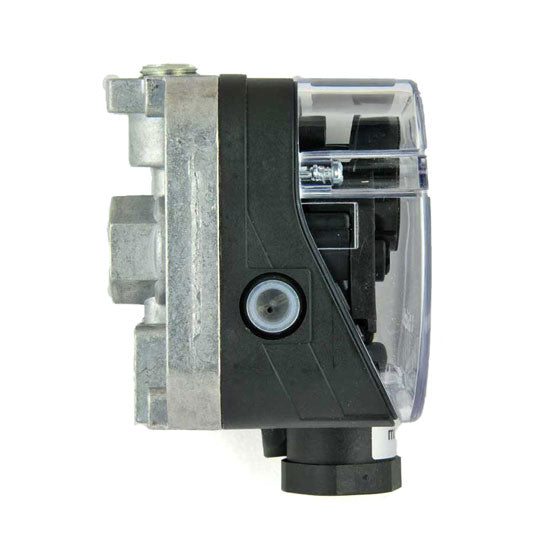

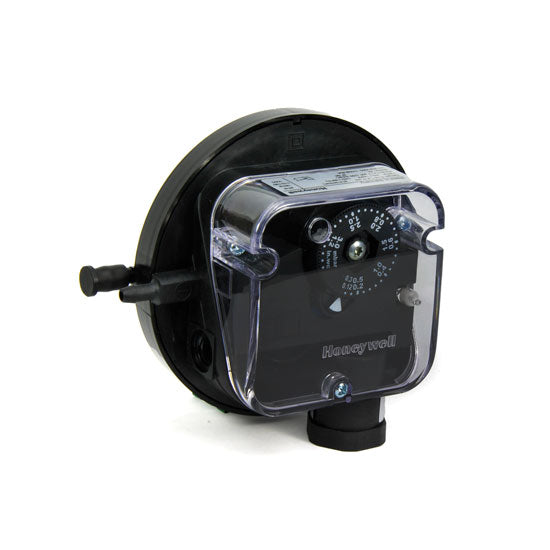

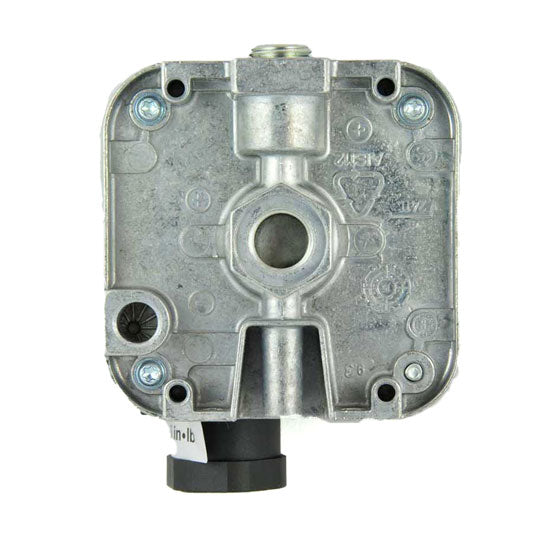

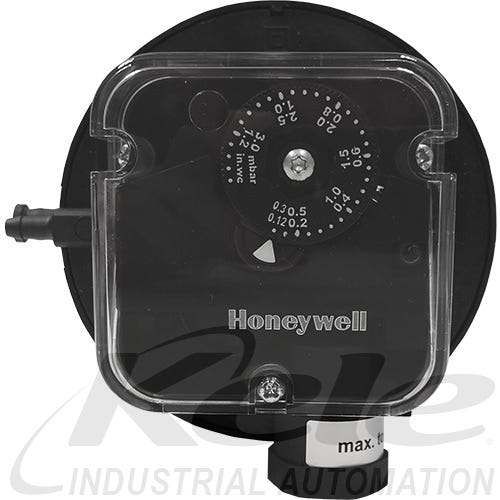

Kromschroder KS84444990 DL 50AT-2N Pressure Switch

Product Description

The Kromschroder KS84444990 DL 50AT-2N Pressure Switch is designed for monitoring air and flue gas pressures. This unit is effective for both positive, negative, and differential pressure uses. The switching point can be adjusted using a hand wheel marked with inch and mbar scales.

• Adjustable range of 1.0 to 20 inches WC.
• Includes screw terminals and a 1/2 NPT conduit for easy electrical connections.
• Features a blue pilot lamp for visual feedback at 120 V AC.

Product Highlights

This pressure switch is suitable for HVAC systems, ensuring accurate pressure monitoring for efficient operation and safety compliance.

Product Information

Standard Information

• Manufacturer Name: Kromschroder
• Type: Pressure switch for air

Technical Specifications

• Adjustable Range: 1.0 to 20 inches WC (2.5 to 50 mbar)
• Reset: Auto Reset
• Switching Action: DL 50AT (84444990), adjustable on hand wheel
• Housing: NPT 1/4 threaded connection and tube connection
• Electrical Connection: Via screw terminals and 1/2 NPT conduit, IP 65
• Feedback: Blue pilot lamp for 120 V AC
• Enclosure Rating: IP 65
• Input Voltage: 120 V AC
• Certifications: FM and UL approved
