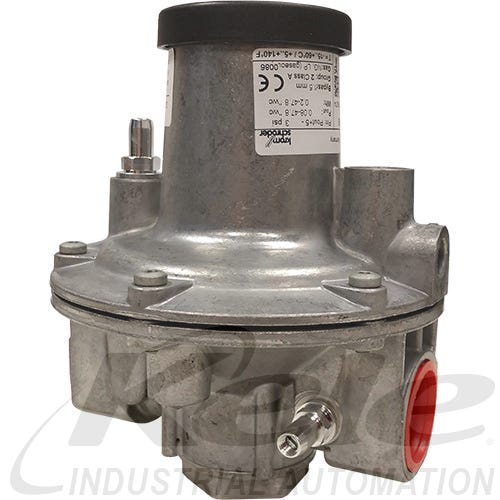

Kromschroder 03155164 GIK 50TN02-5 Air/Gas Ratio Control

Product Description

The Kromschroder 03155164 GIK 50TN02-5 air/gas ratio control is designed to maintain a constant one to one pressure ratio. This regulator controls gas pressure upstream of burners in systems that do not use preheated combustion air. It features an internal bypass and an inlet pressure compensation diaphragm, ensuring consistent performance across various applications.

• Maintains a constant gas/air ratio.
• Features an inlet pressure compensation diaphragm.
• Includes an internal bypass for optimal performance.

Product Highlights

The GIK 50TN02-5 is suitable for use in multiple industries, including iron, steel, glass, ceramics, packaging, paper, and food processing.

Product Information

Standard Information

• Manufacturer: Kromschroder
• MPN: 03155164

Technical Specifications

• Process Connection Size: two NPT
• Connection Size: DN 50
• Connection Type: NPT internal thread
• Inlet Gas Pressure: Up to three PSIG
• Outlet Gas Pressure: 0.8 to 47.5 W.C.
• Process Temperature Limits: -4 to 158 F
• Approvals: CE, EAC
• Maximum Inlet Pressure: 0.2 bar
