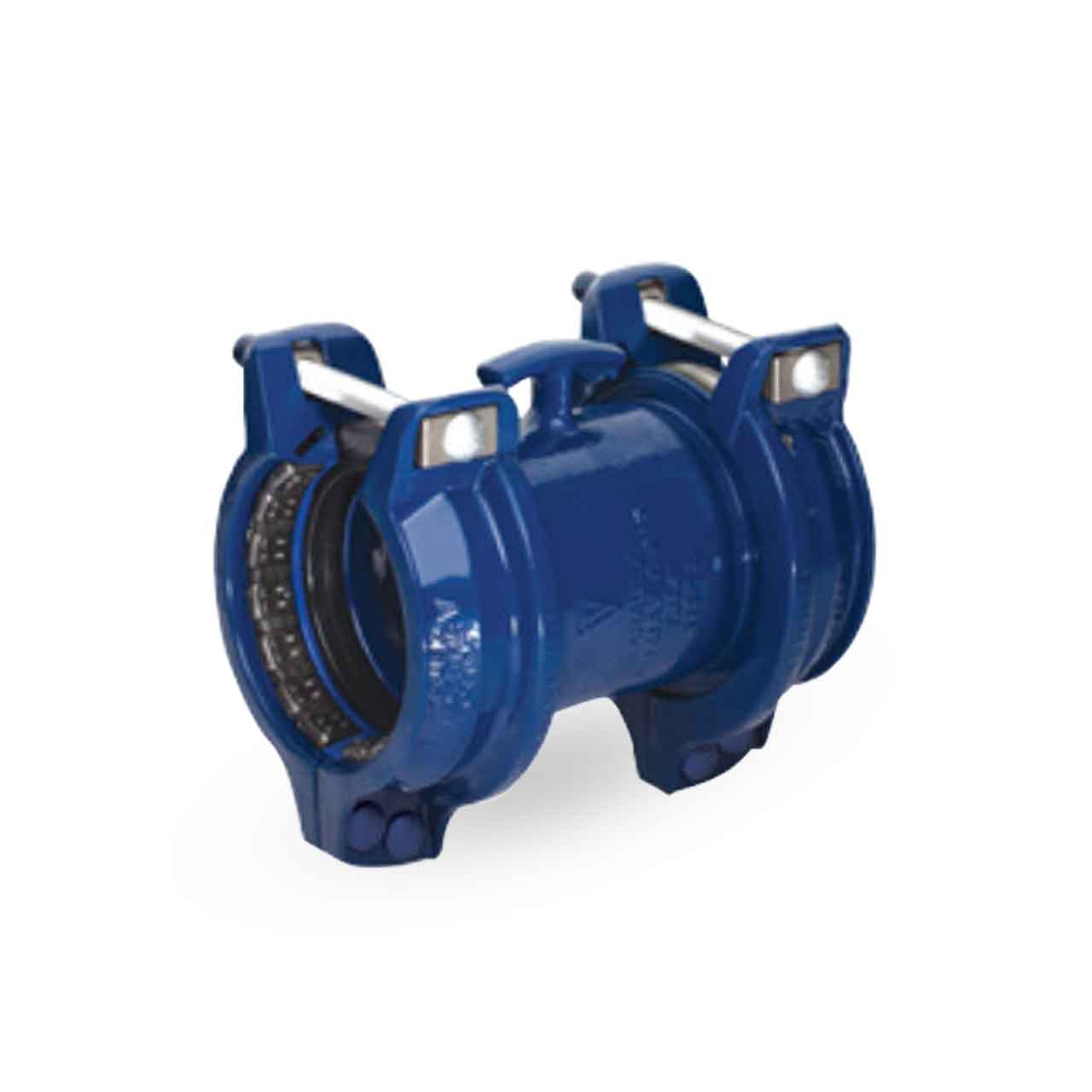

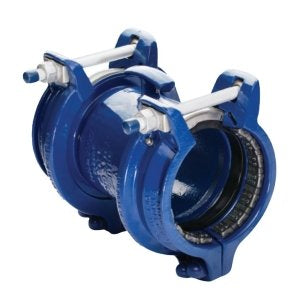

Krausz 890-56-10270-16 Hymax Grip 10 inches EPDM Coupling Restraint 10.65-11.55 O.D.

Product Description

The KRAUSZ 890-56-10270-16 Hymax Grip coupling combines the technology of the HYMAX coupling with a restraint system, joining pipe ends while preventing movement. It works with metal and plastic pipes for various applications. It features a stab-fit design and allows dynamic deflection, reducing damage.

• Joins and Restrains A Wide Range of Piping Types and Diameters
• Unique Radial Gripping System Prevents Pipe Motion
• Universal Gripping Teeth Fit Metal and Plastic Pipes

Product Highlights

The coupling features a unique radial gripping system, stab-fit design and durable ductile iron body. It is suitable for a wide variety of applications.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 890-56-10270-16

Technical Specifications

• Meets or Exceeds Standards: AWWA C-219, NSF 61, NSF 372
• SIZE: 10" Nominal Diameter Pipe Size
• PIPE O.D. RANGE: 10.65 - 11.55
• WORKING PRESSURE: 232 PSI
• RATED PRESSURE: 350 PSI
• TORQUE: 200 FT-LBS
• END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
• CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12 with Handle
• GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
• GRIP CHAIN: Gripping Teeth: Size 4.0"-12" AISI 420 2B or AISI 440C
• BRIDGE: AISI 304 Stainless Steel
• SPHERICAL SPACERS: AISI 304 Stainless Steel
• COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
• NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
• Application: Cast Iron Pipe, Copper Pipe, Ductile Iron Pipe, PE, PVC, Stainless Steel Pipe, Steel Pipe
• Material: Ductile Iron
• Nominal Size: 10 in
• Schedule Rating: SDR 9
• Fitting / Connector Type: Coupling
• Manufacturer: Krausz USA Inc
• Overall Range: 10.65 in - 11.55 in
• Pressure Rating: 232 psi
• Temperature Rating: 125 deg F
• Type: Coupling
• Connection Type: Various
• Series: 890
• Brand: HYMAX
• Manufacturer Part Number: 890-56-10270-16
• Fitting Size: 10 in
