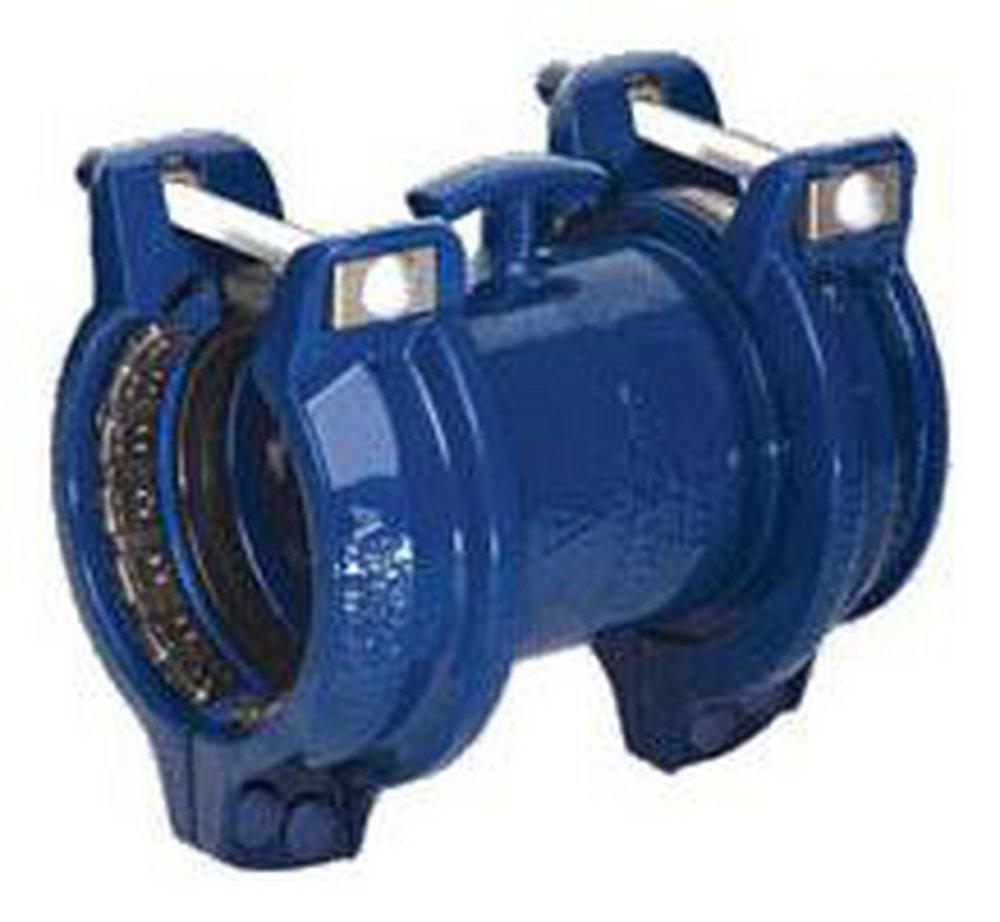

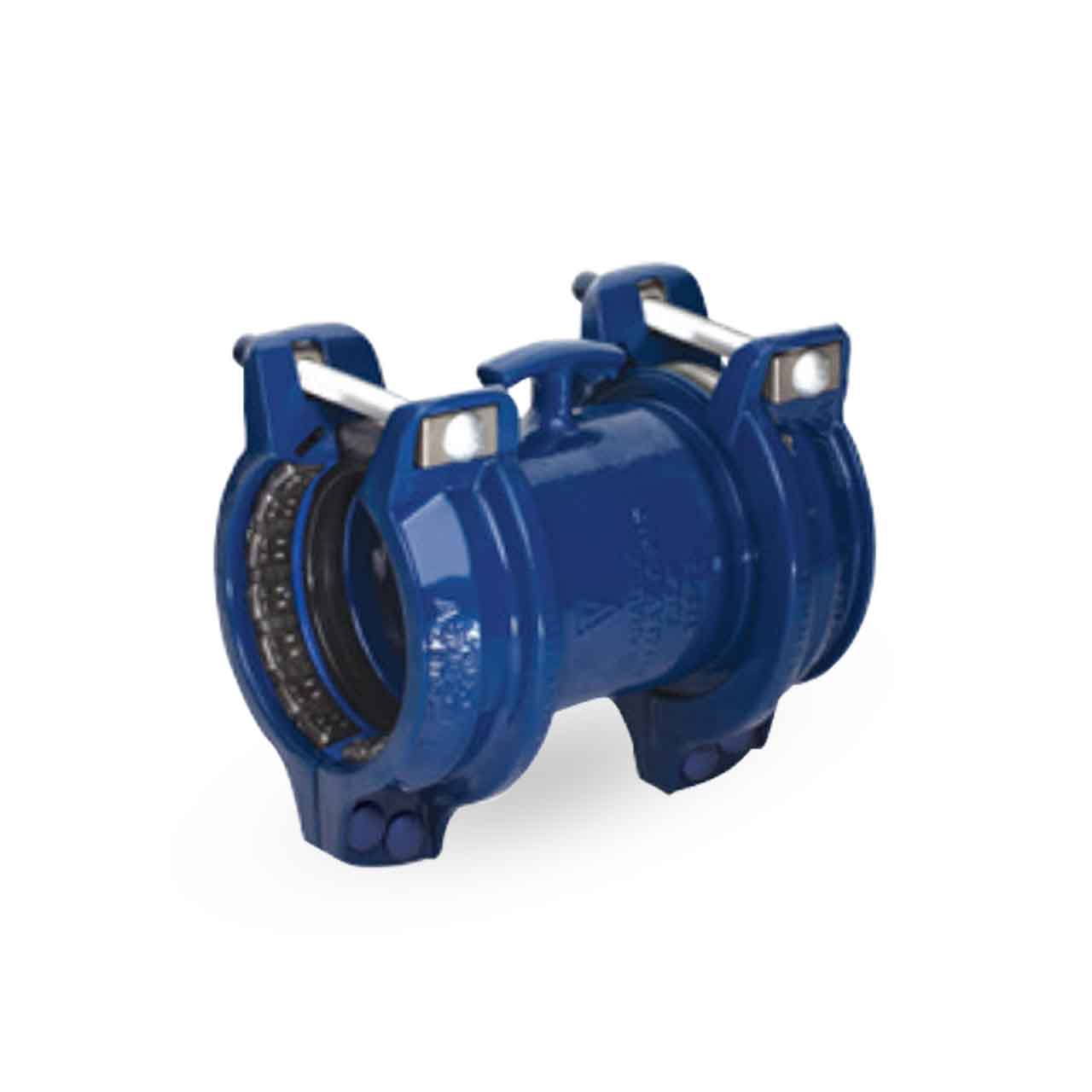

Krausz 890-56-08216-16 8 Grip Cplg

Product Description

The KRAUSZ 890-56-08216-16 8 Grip Cplg combines the HYMAX coupling technology with a unique restraint system, joining pipe ends while preventing movement. It works with metal and plastic pipes and is suitable for various applications. The stab-fit design allows 4° dynamic deflection per end, reducing future damage.

• Joins and Restrains A Wide Range of Piping Types and Diameters
• Unique Radial Gripping System Prevents Pipe Motion
• Universal Gripping Teeth Fit Metal and Plastic Pipes

Product Highlights

The coupling features a durable ductile iron body and a patented hydraulically-assisted gasket with 2-stage sealing.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 890-56-08216-16

Technical Specifications

• SIZE: 8.0" Nominal Diameter Pipe Size
• PIPE O.D. RANGE: 8.50 - 9.40
• WORKING PRESSURE: 232 PSI
• RATED PRESSURE: 350 PSI
• TORQUE: 200 FT-LBS
• END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
• CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12 with Handle
• GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
• GRIP CHAIN: Gripping Teeth: Size 4.0"-12" AISI 420 2B or AISI 440C
• BRIDGE: AISI 304 Stainless Steel
• SPHERICAL SPACERS: AISI 304 Stainless Steel
• COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
• NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
• ASTM: ASTM A53 Center Ring, ASTM A283/A283M End Ring, Hymax Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
• AWWA: AWWA C-219
• Fitting Size 1: 8
• Fitting Size 2: 8
• Fitting Sizes: 8 in
• Fitting Type: Coupling, Straight
• Height: 15-7/10
• Length: 13-3/10
• Material: Carbon Steel
• Material Type: EPDM
• Maximum Temperature: 125
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - Maximum: 232 psi
• Pressure Class: 350#
• Range (in): 8.50 in - 9.40 in
• Schedule Class: SDR 9
• Temperature Range: -20 to 125 Deg F
• UL Listed: No
• Nominal Size: 8 in
• Connection Type: Various
• Series: 890
• Pressure Rating: 260 psi
• Temperature Rating: -20 to 125 deg F
• Manufacturer: KRAUSZ
• Width: 13-4/5
