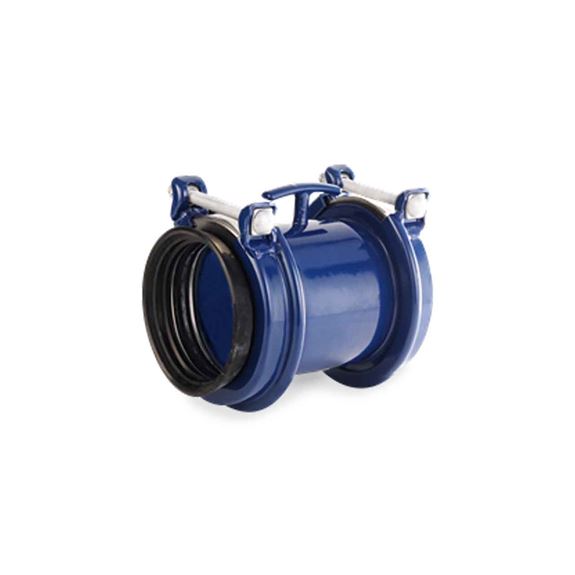

KRAUSZ 860-54-0163-16 Hymax 2 6 in. Wide-Range Coupling 6.42 to 7.68 in.

Product Description

The KRAUSZ 860-54-0163-16 is a Hymax 2 wide-range coupling designed for efficient and reliable connection of pipes. This coupling accommodates pipe diameters between six point four two inches and seven point six eight inches.

• Advanced wide-range coupling with patented flip gasket
• Eliminates mistakes for installers and improves work speed
• Only two to four top facing bolts for easier installation

Product Highlights

This product features a ready-to-use design that minimizes the need for extensive digging underneath pipes. It allows for four-degree dynamic deflection on each end which helps in reducing future pipe damage. The coupling also includes a patented hydraulically-assisted gasket with two-stage sealing to ensure optimal performance.

Product Information

Standard Information

• Brand: KRAUSZ
• Catalog Number: 860-54-0163-16

Technical Specifications

• Weight: 23 lb.
• Material: Stainless Steel
• Selling Size: 6.42 to 7.68 inches
• Material Grade: 304
• Specifications Met: AWWA C-219, NSF 61, NSF 372
• Maximum Pressure Rating: 260 PSI
• Maximum Temperature Rating: +125 degrees F
• Minimum Temperature Rating: -20 degrees F
