Krausz 277-56-0167-10W Hymax® Clamp™ 6 x 24 in. Repair Clamp

Product Description

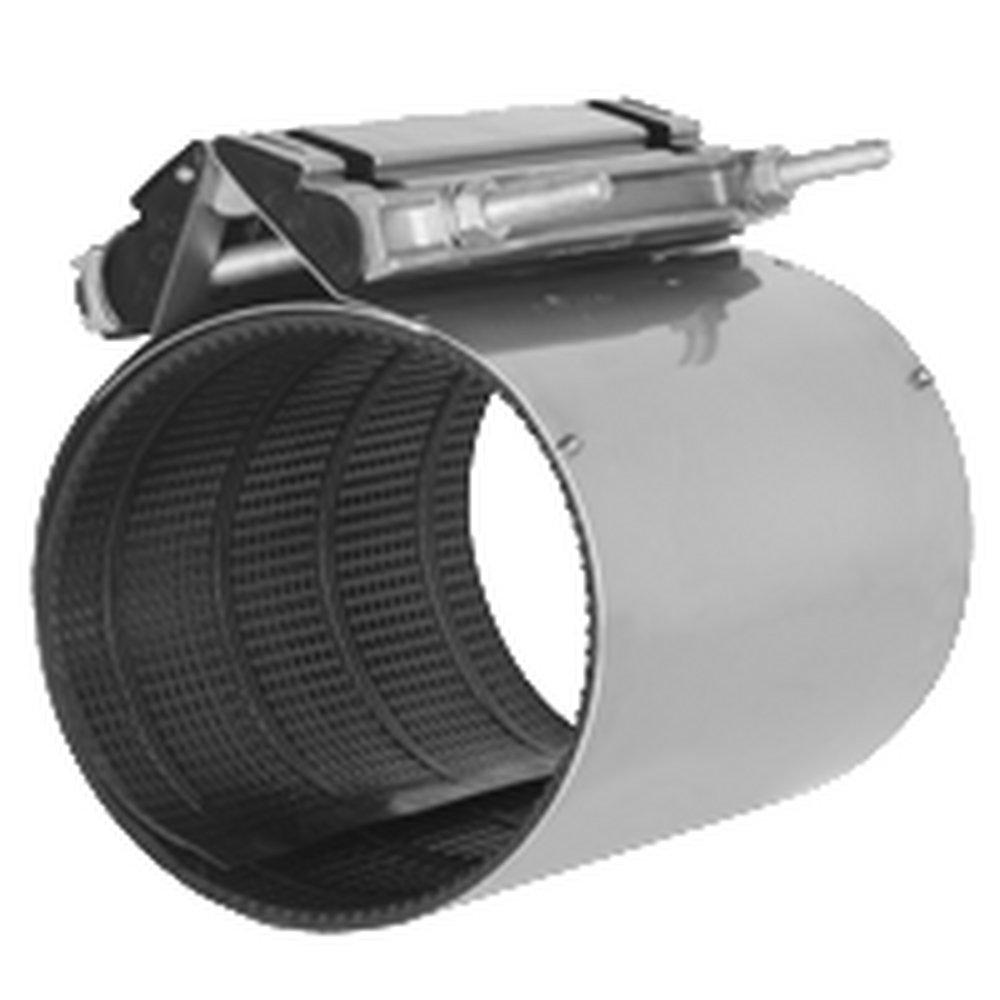

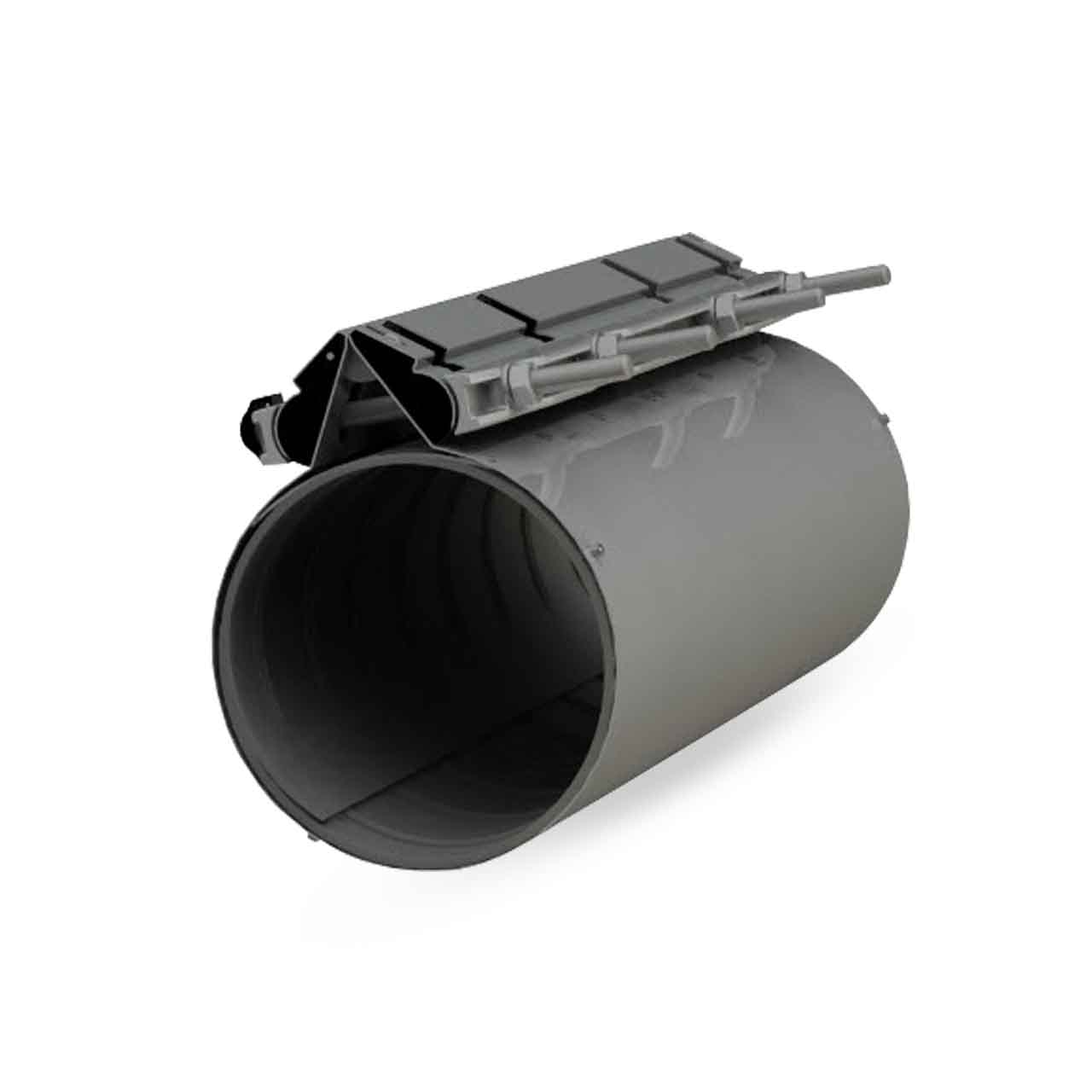

The Krausz 277-56-0167-10W Hymax® Clamp™ is a stainless steel repair clamp designed for easy installation with only 2 bolts. Its lightweight monoblock design is strong and anti-corrosion resistant, suitable for all pipe types. The wide-range clamp replaces up to 3 standard products and features a durable EPDM gasket for repair use only.

• Easy to install - starting with only 2 bolts
• Stainless steel, lightweight monoblock design
• Wide-range, replaces up to 3 standard products

Product Highlights

The Hymax® Clamp™ is efficient, cost-effective, and reliable for repairing holes and longitudinal cracks in water pipes.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 277-56-0167-10W

Technical Specifications

• ASTM: ASTM A-240, ASTM A-351 CF8, ASTM A-480, ASTM D-2000
• AWWA: AWWA C-230
• Collection: Hymax® Clamp™
• End Connection 1: Clamp
• End Connections: Clamp
• Fits Pipe Size: 6 in
• Length: 24 in
• Material: Stainless Steel, Plastic, Rubber
• Material Type: EPDM, Polycarbonate, 304
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 300 psi
• Product Type: Repair Clamp
• Range (in): 6.60 in - 7.40 in
• SIZE: 6.0" Nominal Diameter Pipe Size
• PIPE O.D. RANGE: 6.60 - 7.40
• WORKING PRESSURE: 150 PSI
• RATED PRESSURE: 225 PSI
• TORQUE: 80 FT-LBS
• BODY: AISI 304 Stainless Steel
• PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• GASKET BRIDGE: AISI 304 Stainless Steel
• COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
• ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
• LUGS: Polycarbonate
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
• Type: Band
• Pipe Size: 6 in
• Series: EZ-MAX®
• Brand: HYMAX®
• Manufacturer: KRAUSZ
• Manufacturer Part Number: 277-56-0167-10W
• Fitting Size: 6 in X 24 in
