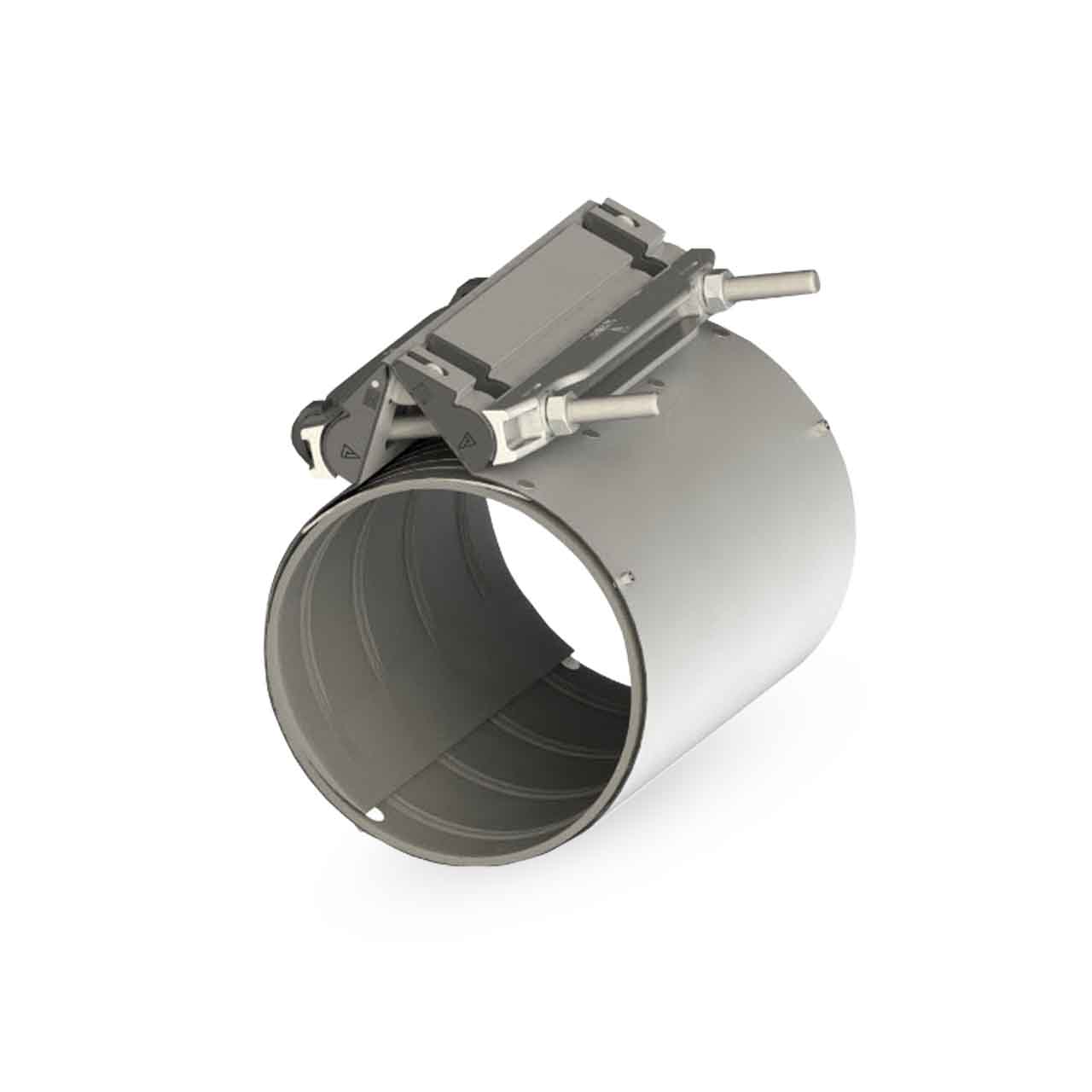

Krausz 273-56-0272-10W Hymax 10 inches EPDM 12 inches Stainless Steel Clamp Repair Solution

Product Description

The KRAUSZ 273-56-0272-10W HYMAX Clamp wide-range stainless steel clamps are excellent for repairing holes as well as longitudinal cracks in water pipes. Its special design substantially reduces inventory and on-vehicle product stock since one HYMAX Clamp can be used to replace up to three traditional competitors' clamps. It is cost effective, reliable and easy to install.

• Easy to Install-Starting with Only 2 Bolts
• Stainless Steel, Lightweight Monoblock Design
• Wide-Range, Replaces up to 3 Standard Products

Product Highlights

The Hymax clamp is strong, anti-corrosion resistant, and suitable for all pipe types with a durable EPDM gasket.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 273-56-0272-10W

Technical Specifications

• Meets or Exceeds Standards: AWWA C230, NSF-61 and NSF-372
• SIZE: 10" Nominal Diameter Pipe Size
• LENGTH: 12"
• PIPE O.D. RANGE: 10.73 - 11.53
• WORKING PRESSURE: 150 PSI
• RATED PRESSURE: 225 PSI
• TORQUE: 135 FT-LBS
• BODY: AISI 304 Stainless Steel
• PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• GASKET BRIDGE: AISI 304 Stainless Steel
• COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
• ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
• LUGS: Polycarbonate
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
• OD Range: 10.73-11.53
• Seal Material: EPDM
• Temperature Range: -20F TO 180F
• NSF Certification: NSF61/372
• AWWA Standard: AWWA C230
