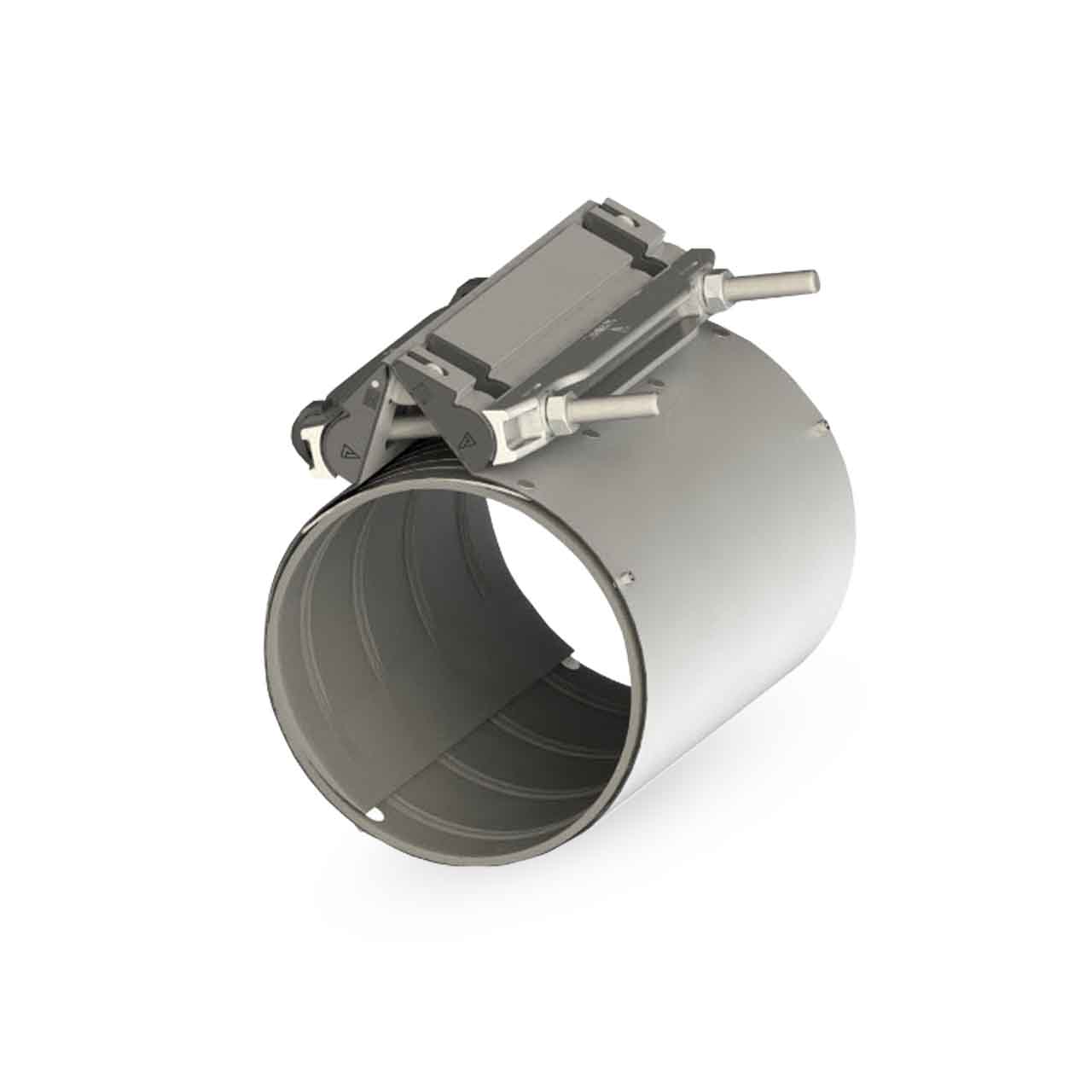

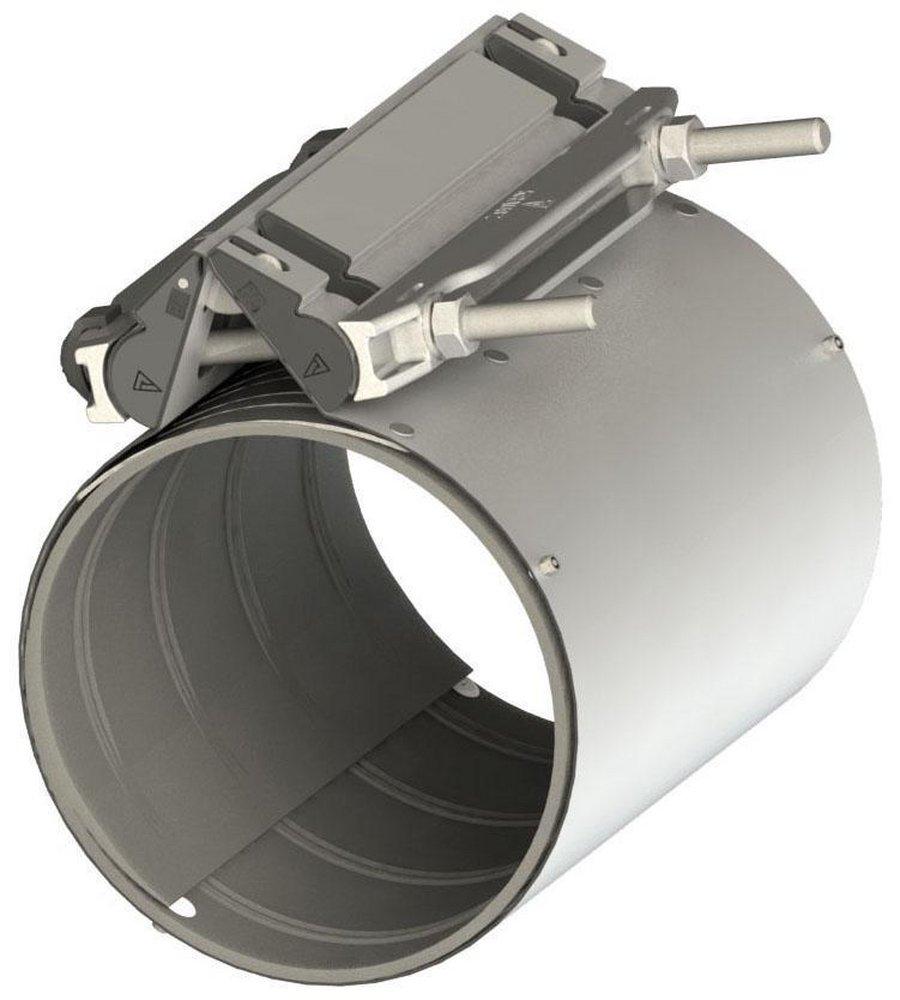

Krausz 273-56-0167-10W Hymax 6 x 12 in. Stainless Steel Repair Clamp

Product Description

The Krausz 273-56-0167-10W Hymax® stainless steel repair clamp is designed for repairing holes and longitudinal cracks in water and wastewater pipes. Its design reduces inventory, as one Hymax pipe repair clamp can replace up to three traditional clamps and is suitable for all pipe types. It is efficient, cost-effective, reliable, and easy to install.

• Wide-range, reduced bolts, less inventory
• All stainless design-corrosion resistant
• Versatility-water and sewer applications

Product Highlights

The Hymax repair clamp features a durable EPDM gasket suitable for all potable water and sewer applications. It meets AWWA C-230, NSF-61, and NSF-372 standards.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 273-56-0167-10W

Technical Specifications

• ASTM: ASTM A-351 CF8
• AWWA: AWWA C-230
• Application: Cast Iron Pipe, Copper Pipe, Ductile Iron Pipe, PE Pipe, PVC Pipe, Steel Pipe
• Collection: Hymax ®
• Fits Pipe Size: 6 in
• Length: 12
• Material: Plastic, Rubber, Stainless Steel
• Material Type: 304, EPDM, Polycarbonate
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 6.60 in - 7.40 in
• UL Listed: No
• Meets or Exceeds Standards: AWWA C230, NSF-61 and NSF-372
• SIZE: 6.0" Nominal Diameter Pipe Size
• PIPE O.D. RANGE: 6.60 - 7.40
• WORKING PRESSURE: 150 PSI
• RATED PRESSURE: 225 PSI
• TORQUE: 80 FT-LBS
• BODY: AISI 304 Stainless Steel
• PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• GASKET BRIDGE: AISI 304 Stainless Steel
• COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
• ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
• LUGS: Polycarbonate
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
• Fitting Size: 6 in X 12 in
