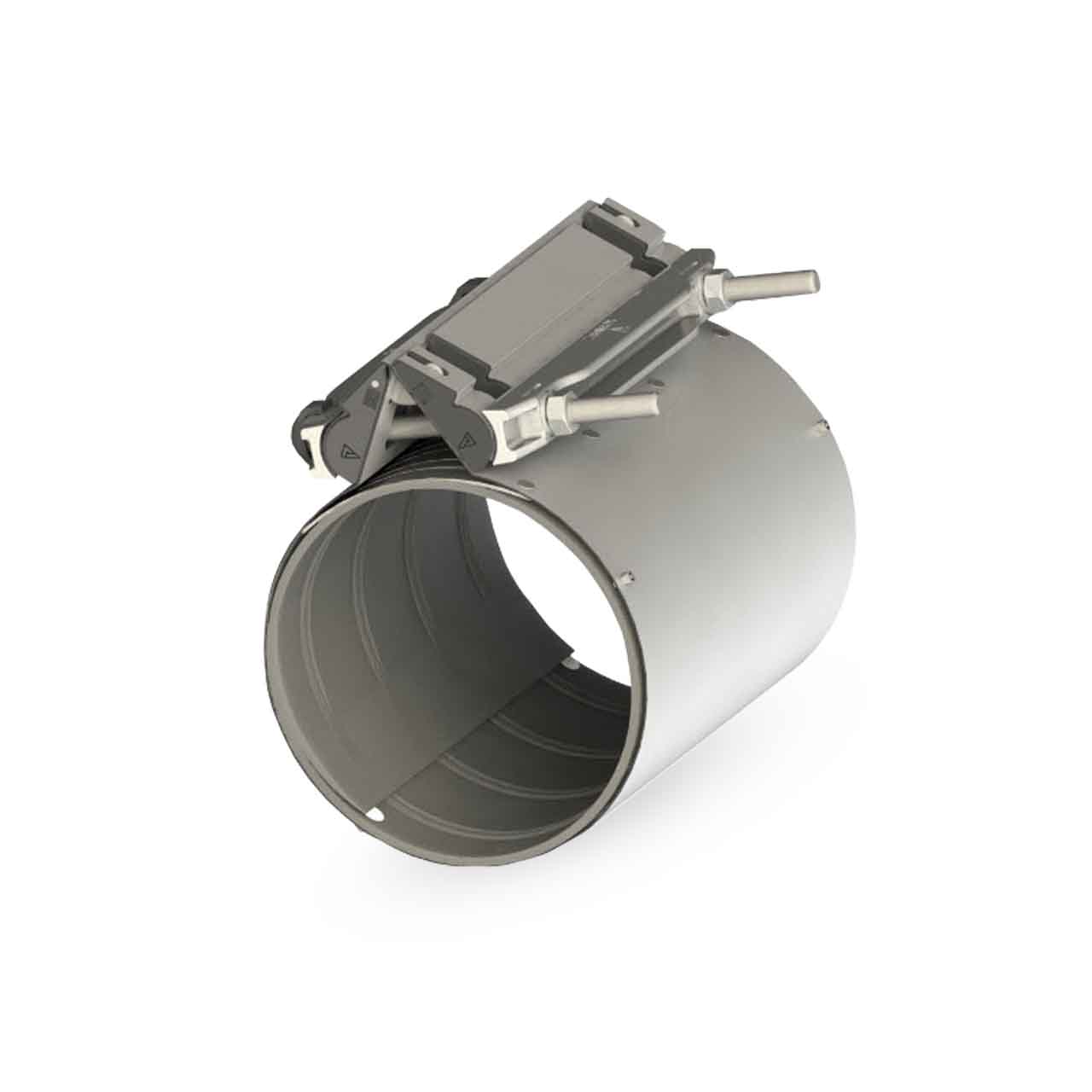

Krausz 273-56-0113-10W Hymax 4.0 inches EPDM 12 inches Stainless Steel Clamp Repair Solution

Product Description

The KRAUSZ 273-56-0113-10W HYMAX Clamp wide-range stainless steel clamps are excellent for repairing holes as well as longitudinal cracks in water and wastewater pipes. Their special design substantially reduces inventory. It is extremely efficient, cost effective, reliable and easy to install. With only two bolts to tighten, installation is simple.

• Easy to Install-Starting with Only 2 Bolts
• Stainless Steel, Lightweight Monoblock Design
• Wide-Range, Replaces up to 3 Standard Products

Product Highlights

The HYMAX Clamp is strong, anti-corrosion resistant, and suitable for all pipe types with a durable EPDM gasket.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 273-56-0113-10W

Technical Specifications

• Meets or Exceeds Standards: AWWA C230, NSF-61 and NSF-372
• SIZE: 4.0" Nominal Diameter Pipe Size
• LENGTH: 12"
• PIPE O.D. RANGE: 4.47 - 5.27
• WORKING PRESSURE: 150 PSI
• RATED PRESSURE: 225 PSI
• TORQUE: 75 FT-LBS
• BODY: AISI 304 Stainless Steel
• PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• GASKET BRIDGE: AISI 304 Stainless Steel
• COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
• ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
• LUGS: Polycarbonate
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
