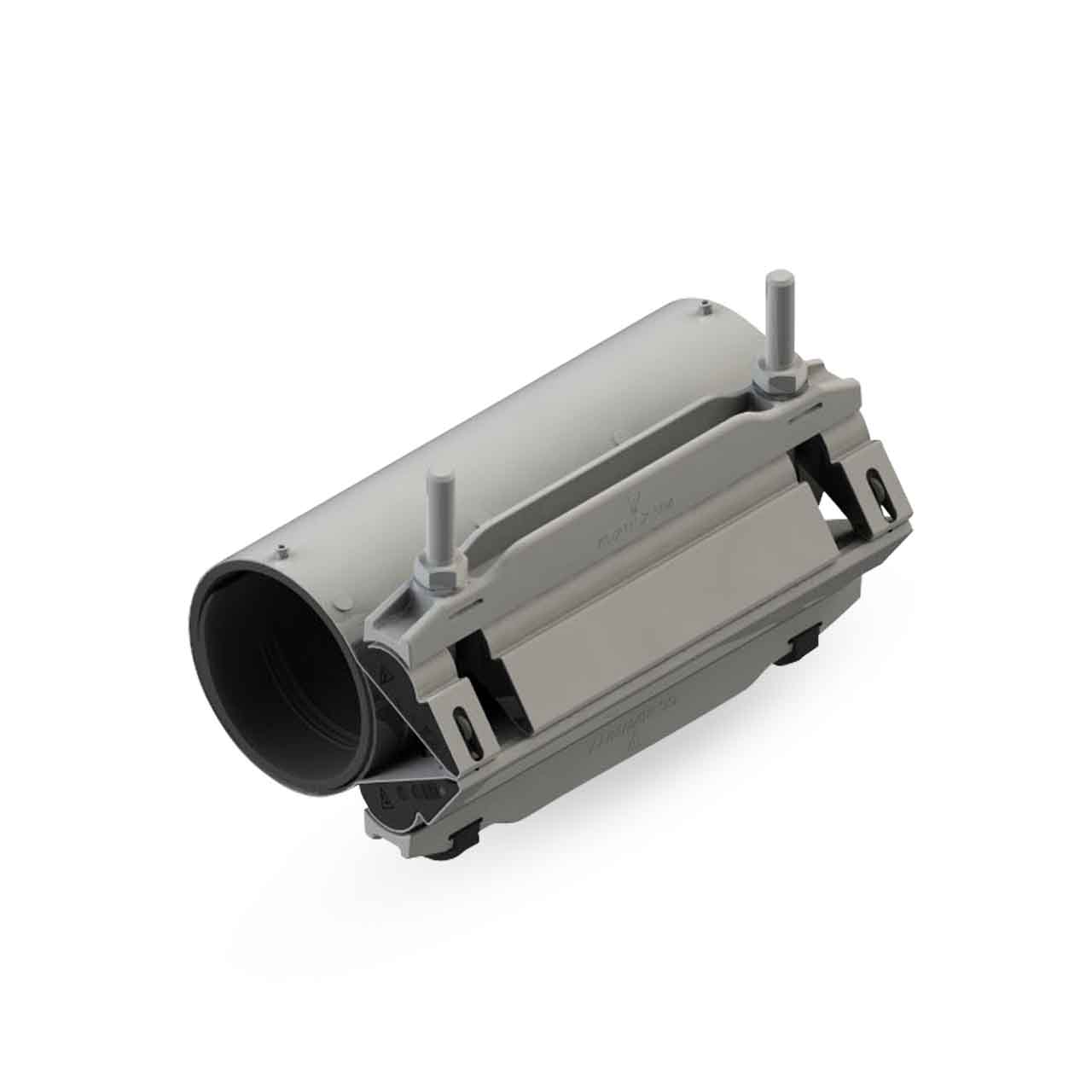

Krausz 267-56-0072-10 Hymax 2.5 inches EPDM 6.0 inches Stainless Steel Clamp Repair Solution

Product Description

The KRAUSZ 267-56-0072-10 HYMAX Clamp wide-range stainless steel clamps are excellent for repairing holes as well as longitudinal cracks in water and wastewater pipes. Its special design substantially reduces inventory and on-vehicle product stock. It is extremely efficient, cost effective, reliable and easy to install.

• Easy to Install-Starting with Only 2 Bolts
• Stainless Steel, Lightweight Monoblock Design
• Wide-Range, Replaces up to 3 Standard Products

Product Highlights

The HYMAX Clamp is strong, anti-corrosion resistant, and suitable for all pipe types with a durable EPDM gasket.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 267-56-0072-10

Technical Specifications

• Meets or Exceeds Standards: AWWA C230, NSF-61 and NSF-372
• SIZE: 2.5" Nominal Diameter Pipe Size
• LENGTH: 6.0"
• PIPE O.D. RANGE: 2.85 - 3.15
• WORKING PRESSURE: 150 PSI
• RATED PRESSURE: 225 PSI
• TORQUE: 30 FT-LBS
• BODY: AISI 304 Stainless Steel
• PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• GASKET BRIDGE: AISI 304 Stainless Steel
• COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
• ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
• LUGS: Polycarbonate
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
