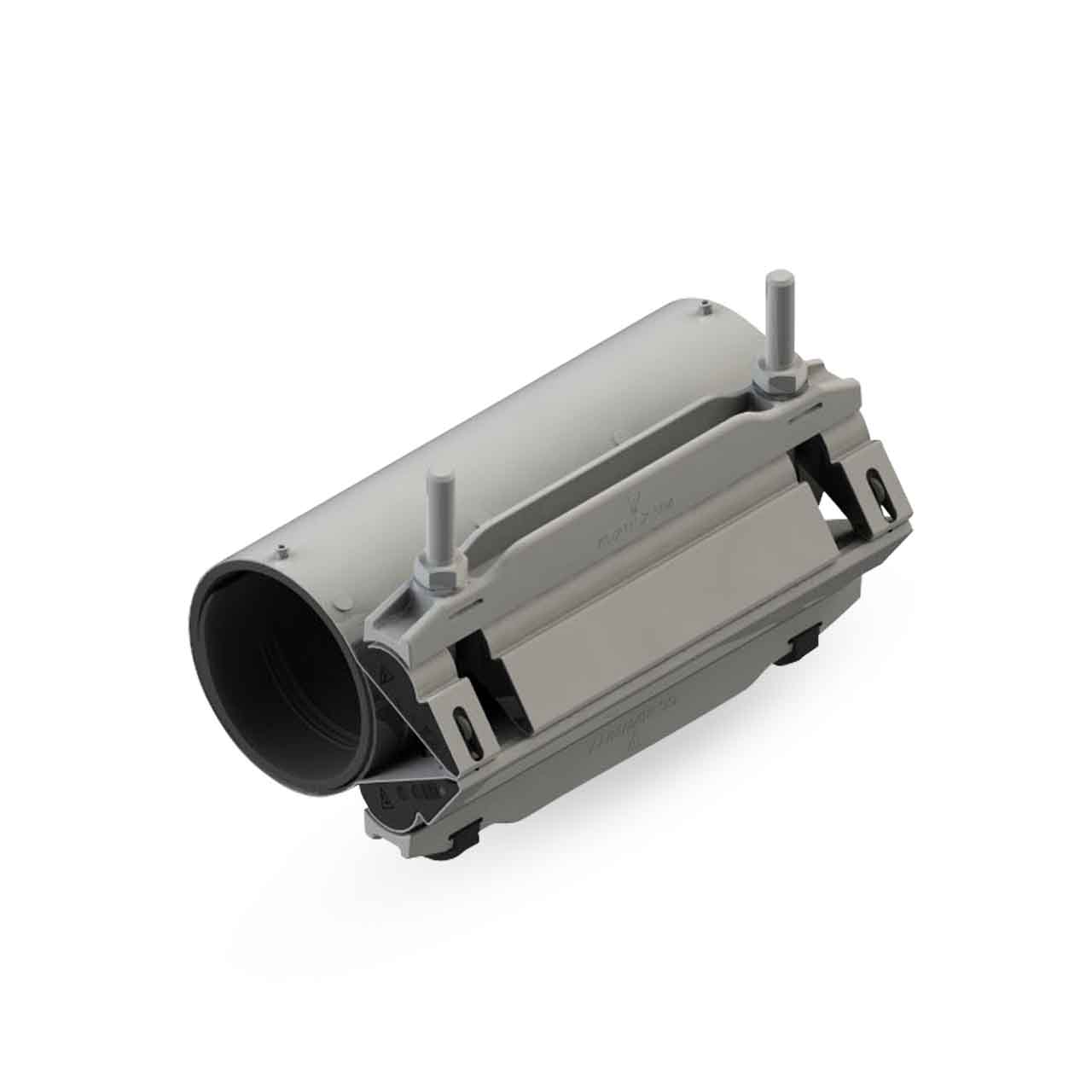

Krausz 267-56-0059-10 Hymax ND 2.0 inches EPDM 6.0 inches

Product Description

The KRAUSZ 267-56-0059-10 HYMAX Clamp is a wide-range stainless steel clamp designed for repairing holes and longitudinal cracks in water and wastewater pipes. This efficient solution reduces inventory by replacing up to three traditional clamps. It is easy to install with only two bolts to tighten for lengths up to 12 inches, facilitated by enforced bolt holders. The clamp is suitable for all pipe types and offers strong, anti-corrosion resistance.

• Easy to Install-Starting with Only 2 Bolts
• Wide-Range, Replaces up to 3 Standard Products
• Strong and Anti-Corrosion Resistant

Product Highlights

Durable stainless steel clamp with EPDM gasket for efficient pipe repair.

Product Information

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 267-56-0059-10

Technical Specifications

• Standards: AWWA C230, NSF-61 and NSF-372
• Nominal Diameter: 2.0"
• Length: 6.0"
• Pipe Outer Diameter Range: 2.35 - 2.65
• Working Pressure: 150 PSI
• Rated Pressure: 225 PSI
• Installation Torque: 30 FT-LBS
• Body Material: AISI 304 Stainless Steel
• Gasket Material: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
• Gasket Bridge Material: AISI 304 Stainless Steel
• Compression Beam Material: AISI 304/304L Casting (ASTM-A351-CF8)
• Adjusting Pin Material: AISI 304/304L Casting (ASTM-A351-CF8)
• Lug Material: Polycarbonate
• Nuts and Bolts Material: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
