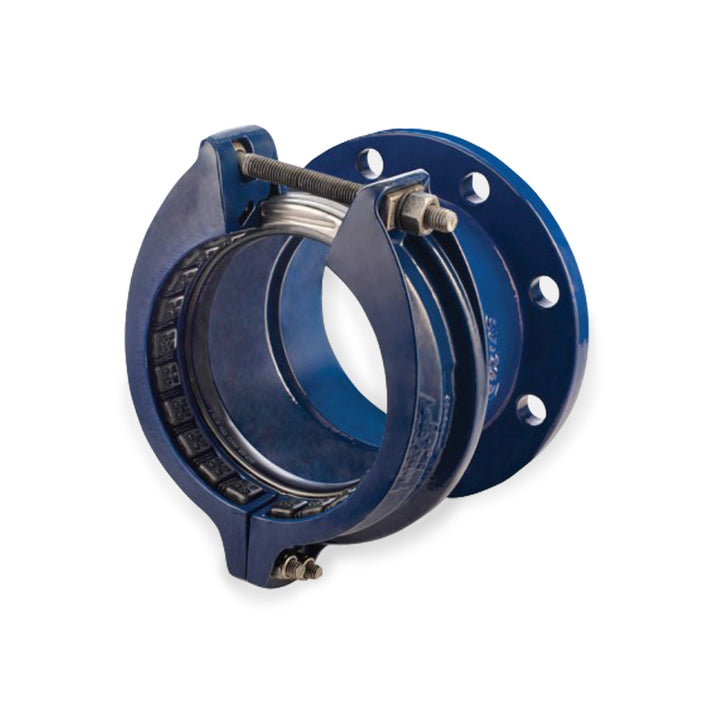

Krausz 134-96-06165-16 Flange Adapter 6 Inch

Product Description

The KRAUSZ 134-96-06165-16 is a HYMAX GRIP 1-bolt flange adapter designed for 6-inch pipe connections in water distribution and municipal piping systems. This fitting accepts outside diameters from 6.50 inches to 7.20 inches and uses EPDM seals rated for service from -20 degrees F to 125 degrees F. It is certified to NSF 61/372 and meets AWWA C219 standards, making it appropriate for potable water applications. Waterworks contractors and municipal utility crews install this adapter to transition grooved or plain-end pipe to flanged connections without welding.

The 134-96-06165-16 is suited for residential and commercial water main work, municipal distribution lines, and industrial piping where a reliable flange transition is required on 6-inch nominal pipe. The single-bolt flange design simplifies installation in tight spaces or valve vaults where rotating a full bolt circle is impractical. EPDM seal material performs well in cold-water service and potable water environments.

Key Features

• Fits pipe outside diameters from 6.50 inches to 7.20 inches
• EPDM seals rated for -20 degrees F to 125 degrees F service temperature
• NSF 61/372 certified for potable water contact
• Compliant with AWWA C219 coupling standard
• 1-bolt flange adapter design reduces hardware count and speeds installation
• HYMAX GRIP coupling technology for secure pipe restraint

Compatibility

Designed for use on 6-inch pipe with an outside diameter range of 6.50 inches to 7.20 inches in potable water, municipal distribution, and industrial piping applications meeting AWWA C219 requirements.

Installation Notes

Installation should be performed by a licensed waterworks or plumbing contractor in accordance with AWWA guidelines and applicable local codes. Shut off and depressurize the line before fitting installation. Inspect the pipe end for burrs, gouges, or out-of-round conditions that could compromise the EPDM seal. Verify the mating flange bolt pattern and pressure rating before completing the connection.

Technical Specifications

• Fitting Size: 6 inches
• Outside Diameter Range: 6.50 inches to 7.20 inches
• Seal Material: EPDM
• Temperature Range: -20 degrees F to 125 degrees F
• Certifications: NSF 61/372, AWWA C219
• Weight: 40 pounds

Standard Information

• Brand: KRAUSZ
• Manufacturer Part Number: 134-96-06165-16
