KRAUSZ 113-56-0052-16 HYMAX Versa ND 2.0 EPDM Stainless Steel Coupling 2.05-2.52 O.D.

Product Description

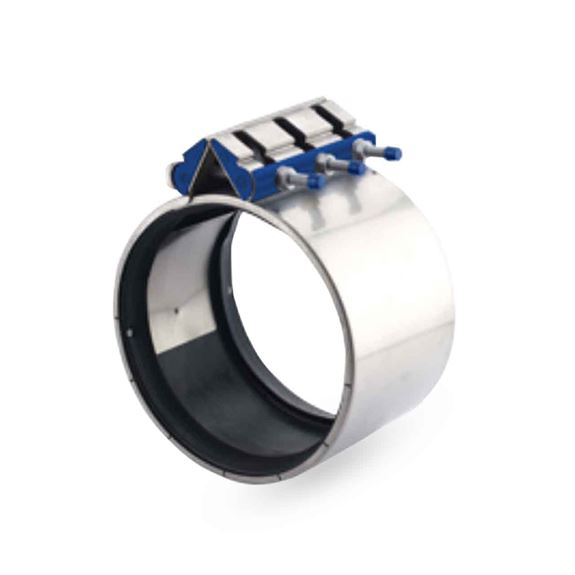

The KRAUSZ HYMAX Versa coupling, MPN 113-56-0052-16, is designed for connecting and repairing various water and wastewater pipes. It is suitable for tough conditions, including hot soil environments. This coupling can join pipes of similar or different sizes and effectively repair holes and cracks. The HYMAX Versa offers an extra-wide tolerance, which can lower the need for large inventories and reduce storage costs.

• Unique versatile coupling, can be stab fit or wrapped around pipe.
• Durable stainless steel, monoblock design.
• Allows three degrees dynamic deflection per end, reducing the risk of future pipe damage.

Product Highlights

Product Information

Standard Information

• Brand: KRAUSZ
• MPN: 113-56-0052-16

Technical Specifications

• Nominal Diameter: 2.0 inch
• Overall Range: 2.05-2.52 inch
• Bolt Quantity and Size: 4-M12
• Torque: 35 Ft-Lbs
• Working Pressure: 232 PSI
• Rated Pressure: 350 PSI
• Body Material: Stainless Steel AISI 304
• Lug Material: Polycarbonate
• Compression Beam & Adjusting Pin: Casting AISI 304 of ASTM-A351-CF8
• Gasket: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
• Gasket Bridge: AISI 304 Stainless Steel
• Inner Plate: AISI 304 Stainless Steel
• Inner Plate Attachment: Connected to the Body by Reinforced Bolts Manufactured of Ultem Resin 1000 with Insert Socket Set Screw AISI 316
• Nuts and Bolts: AISI 304 Stainless Steel, Rolled Thread and Anti-Galling Coating
• Standards: Meets or Exceeds Standards AWWA C-219, AWWA C-227, NSF 61, NSF 372 and EN-681
