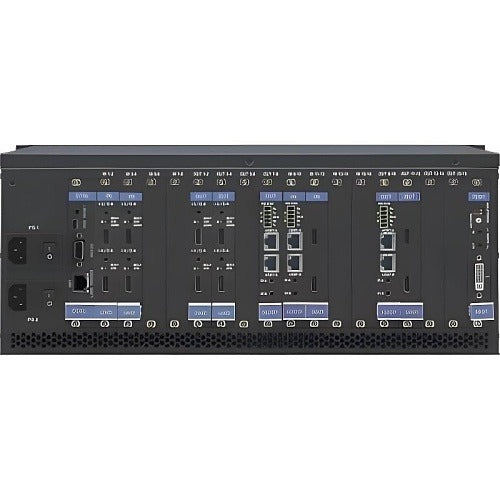

Kramer Electronics 28-70001430 4U Digital Frame 16 Slots

Product Description

The KRAMER ELECTRONICS 28-70001430 is a 4U rack-mounted digital frame designed to house up to 16 modular card slots for AV signal processing applications. This frame provides the structural and power infrastructure needed to run multiple signal processing modules within a single rack unit assembly. At 4U in height, it fits into standard 19-inch equipment racks and is intended for professional AV system integrators, broadcast technicians, and installation contractors who build scalable, multi-channel signal distribution systems. The 16-slot capacity allows a high density of processing cards to operate within a compact footprint.

This digital frame is suited for commercial and professional AV installations where centralized signal routing and processing are required. Typical deployment scenarios include conference centers, broadcast facilities, command and control rooms, and large-venue AV systems. The modular card-frame architecture allows technicians to populate only the slots needed at install time and expand as system requirements grow. Compatible processing cards are installed into the frame to handle tasks such as signal conversion, distribution, or switching.

Key Features

• 16 modular card slots for high-density AV signal processing configurations
• 4U rack form factor fits standard 19-inch equipment racks
• Modular architecture supports scalable, field-expandable installations
• Designed for professional AV signal processing environments
• Sold as a single unit, compatible with supported KRAMER ELECTRONICS processing cards

Compatibility

Designed as an OEM-style modular frame for use with compatible KRAMER ELECTRONICS AV signal processing cards in professional rack-based installations.

Installation Notes

Installation should be performed by a qualified AV systems integrator or technician familiar with rack-mount equipment and signal distribution infrastructure. Power down the rack system before inserting or removing processing cards from the frame. Secure the frame to the rack using appropriate rack-mount screws and ensure adequate ventilation clearance above and below the unit. Follow applicable AV installation standards and the manufacturer card documentation before commissioning the system.
