Kramer Electronics 13-80555090 6x2 Poe Matrix Dsp Aec

Product Description

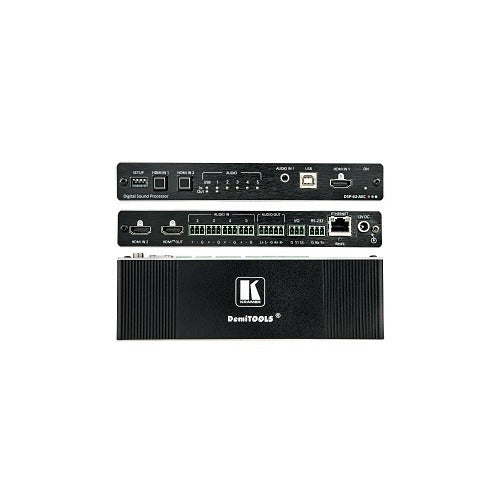

The KRAMER ELECTRONICS 13-80555090 is a 6x2 Power over Ethernet matrix switcher with integrated Digital Signal Processing (DSP) and Acoustic Echo Cancellation (AEC). It routes audio and video signals from up to six inputs to two outputs while conditioning the signal in real time. The built-in DSP handles mixing, equalization, and gain control, while the AEC removes echo artifacts common in conferencing and installed AV environments. This unit is suited for licensed AV integrators and systems technicians working in commercial or institutional installations.

This matrix is designed for fixed AV installations where multiple signal sources must be distributed to two output zones or displays. Typical deployments include conference rooms, training facilities, and multipurpose spaces where clean audio and reliable switching are required. PoE support reduces cabling complexity by allowing the unit to draw power from the network switch rather than a separate power supply, simplifying rack or table installations.

Key Features

• 6-input by 2-output matrix switching configuration
• Integrated DSP for real-time mixing, equalization, and gain management
• Acoustic Echo Cancellation (AEC) for clean audio in conferencing environments
• Power over Ethernet (PoE) eliminates the need for a dedicated power supply
• AV signal processing accessory rated for commercial installed-sound applications

Compatibility

Designed as an OEM-style replacement or primary installation component for commercial AV signal processing systems requiring 6x2 matrix switching with DSP and AEC functionality.

Installation Notes

Installation should be performed by a qualified AV integrator or low-voltage technician familiar with networked AV systems. Verify that the upstream network switch supports the required PoE standard before connecting. Power down or disconnect the network port before making or changing signal connections. Follow applicable low-voltage wiring codes and the facility network administrator guidelines when integrating into an existing LAN infrastructure.
