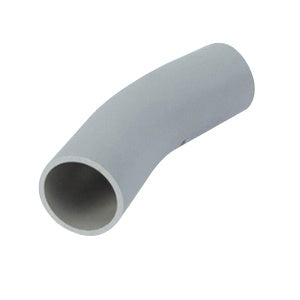

Kraloy 078582 PVC Standard Radius 22-1/2-Degree Elbow 2-1/2 Inch

Product Description

The Kraloy 078582 is a PVC Standard Radius 22-1/2-Degree elbow designed for conduit fitting applications. This fitting features a trade size of two and one-half inches and a bend radius of ten and one-half inches. The product is made from durable PVC material, ensuring long-lasting performance in various applications. The plain end connection allows for easy attachment to nonmetallic solvent weld fittings.

• Trade size: 2 1/2 inches
• Bend radius: 10.5 inches
• UL, CSA, NSF standards compliant

Product Highlights

This elbow is ideal for exposed, concrete-encased, and direct burial applications. The compatible fittings promote a straightforward installation process.

Product Information

Standard Information

• Brand: Kraloy
• Manufacturer: Kraloy Fittings

Technical Specifications

• Material: PVC
• Connection Type: Plain End
• Trade Size: 2-1/2 Inch
• Outside Diameter: 2.875 inches
• Bend Radius: 10.5 inches
• Schedule: 40
• Standards: UL, CSA, NSF Listed, NEMA TC-2
• Item Name: 22-1/2 Degree Elbow
