Koyo Koyo6309-ZZC3 Deep groove ball bearing 45 mm x 100 mm x 25 mm 6309ZZC3

Product Description

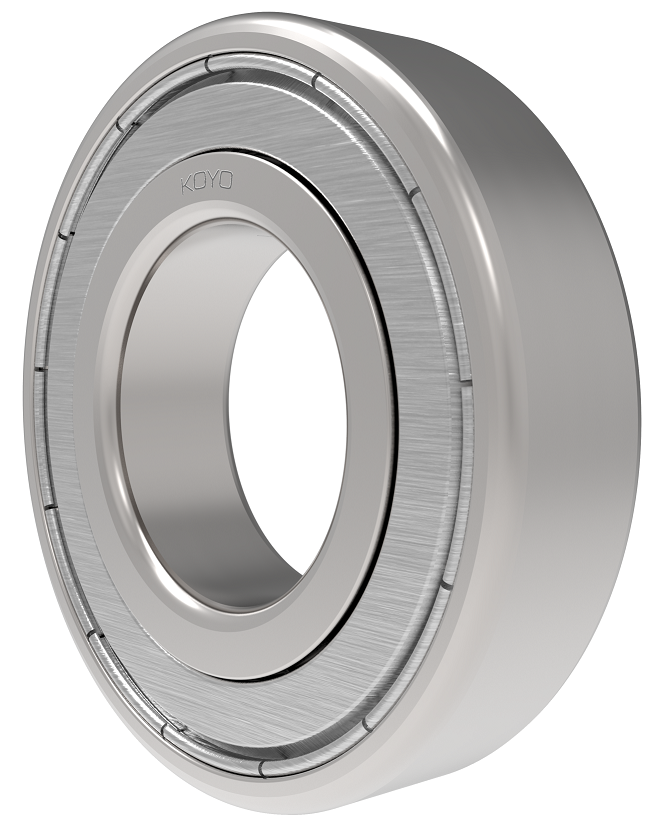

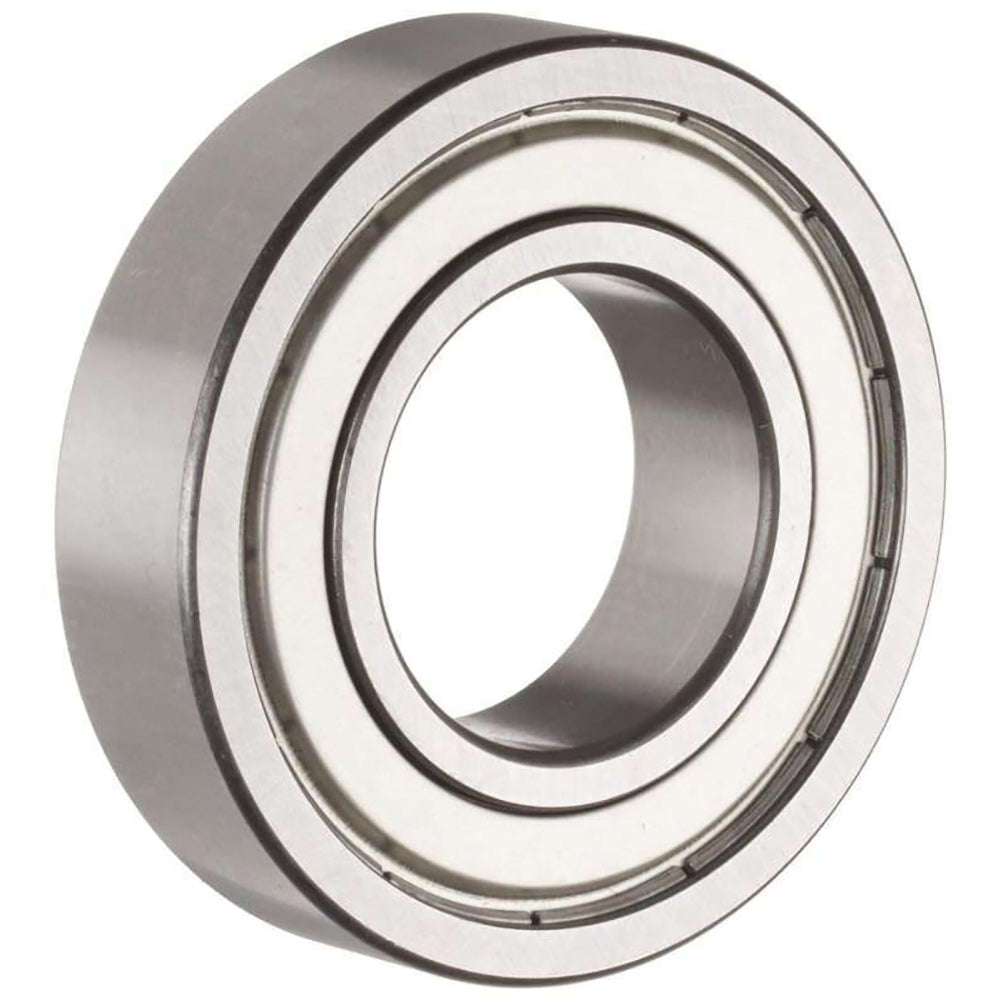

Koyo KOYO6309-ZZC3 is a deep groove ball bearing with double metal shields and C3 internal clearance. It features a 45 mm bore, 100 mm outer diameter and 25 mm width, single-row steel construction with high carbon chromium rolling elements and a riveted steel cage. The 6300 series bearing has a dynamic load rating of 61.1 kN, static rating of 29.5 kN, grease lubrication and a maximum speed of 6300 RPM; operating range -30 C to 110 C.

• Double metal shields (2 shields) with C3 internal clearance; single-row deep groove design for radial loads
• Dimensions: 45 mm bore x 100 mm outer diameter x 25 mm width; steel construction with high carbon chromium balls and riveted steel cage
• Performance: dynamic load rating 61.1 kN, static load rating 29.5 kN, precision class 0, maximum operating speed 6300 RPM (grease); operating temperature -30 C to 110 C

Product Highlights

45 mm x 100 mm x 25 mm double-shield deep groove bearing, C3 clearance, steel construction, 61.1 kN dynamic rating, 6300 RPM (grease).

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6309-ZZC3

Technical Specifications

• Manufacturer: Koyo
• Manufacturer Part Number: KOYO6309-ZZC3
• Alternate Part Number: 6309ZZC3
• Brand: Koyo
• Series: 6300 Series
• Bearing Type: Deep groove ball
• Closure Type: Double shield (2 shields)
• Internal Clearance: C3
• Bore Diameter: 45 mm (1.7717 in)
• Outer Diameter: 100 mm (3.9370 in)
• Width: 25 mm (0.9843 in)
• Material: Steel
• Rolling Element Material: High carbon chromium bearing steel
• Cage Material: Steel
• Cage Type: Riveted
• Lubrication: Grease
• Dynamic Load Rating: 61.1 kN
• Static Load Rating: 29.5 kN
• Maximum Operating Speed (Grease): 6300 RPM
• Precision Class: Class 0
• Operating Temperature: -30 C to 110 C
• Row Type: Single row
• Fillet Radius: 0.0591 in
• Weight: 1.848 lb
• UPC Code: 605790077074
