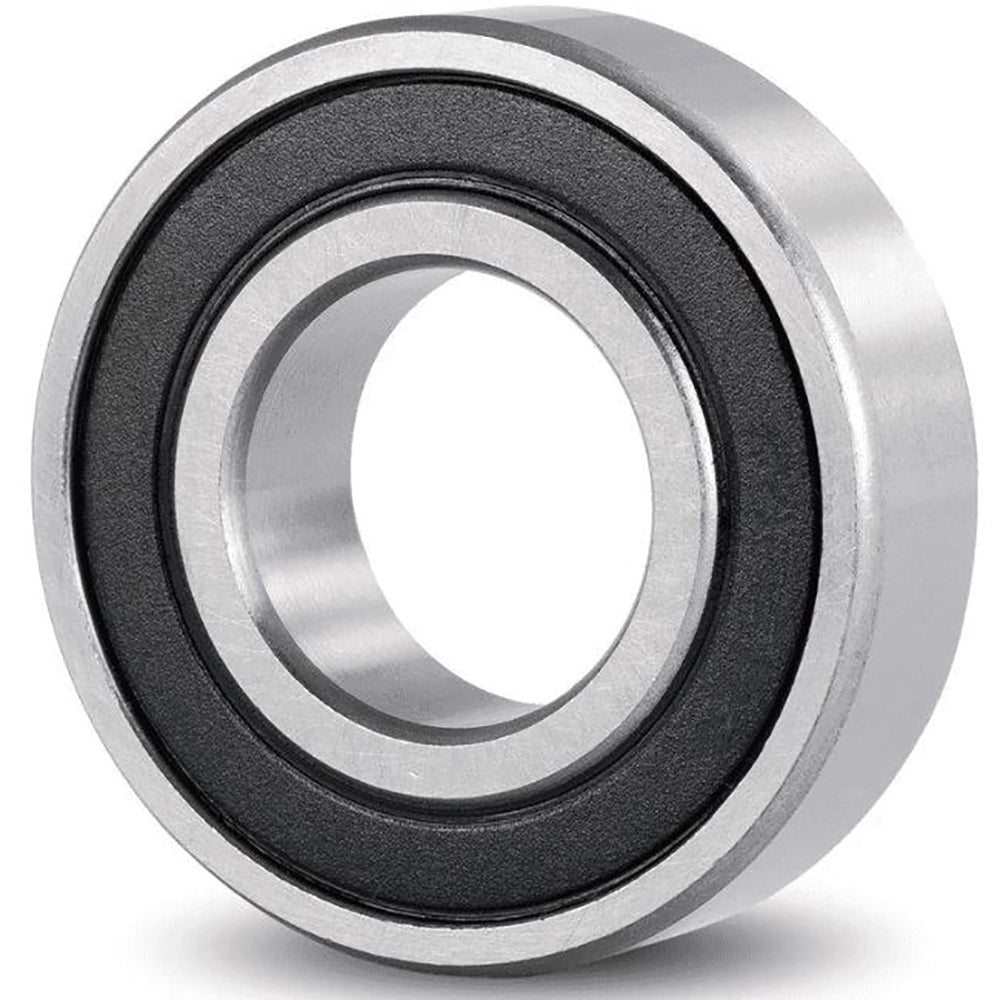

Koyo Koyo6309-2RDC3 Sealed deep-groove ball bearing (45 x 100 x 25 mm) 63092RDC3

Product Description

Koyo KOYO6309-2RDC3 is a sealed deep-groove ball bearing designed for radial load applications. It features double rubber seals, C3 internal clearance, and steel construction, with a bore of 45 mm, outer diameter of 100 mm, and width of 25 mm. The bearing is part of the 6300 series, includes a snap ring, and has rated dynamic and static load capacities and an indicated maximum operating speed.

• Double-sealed deep-groove design with two rubber seals and included snap ring
• Dimensions: 45 mm inner diameter x 100 mm outer diameter x 25 mm width; C3 internal clearance
• Steel construction; dynamic load rating 61.1 kN, static load rating 29.5 kN, rated to 6300 RPM

Product Highlights

Sealed 6300-series deep-groove ball bearing, C3 clearance, steel construction, includes snap ring; bore 45 mm x OD 100 mm x width 25 mm.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6309-2RDC3

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6309-2RDC3
• Alternate Manufacturer Part Number: 63092RDC3
• Bearing Type: Deep groove ball bearing
• Closure Type: Double sealed (two rubber seals)
• Inner Diameter: 45 mm (1.772 in)
• Outer Diameter: 100 mm (3.937 in)
• Width: 25 mm (0.984 in)
• Internal Clearance: C3
• Material: Steel
• Series: 6300 Series
• Dynamic Load Rating: 61.1 kN
• Static Load Rating: 29.5 kN
• Maximum RPM: 6300 RPM
• Special Features: Snap ring
• Condition: New
• UPC Code: 605790076589
