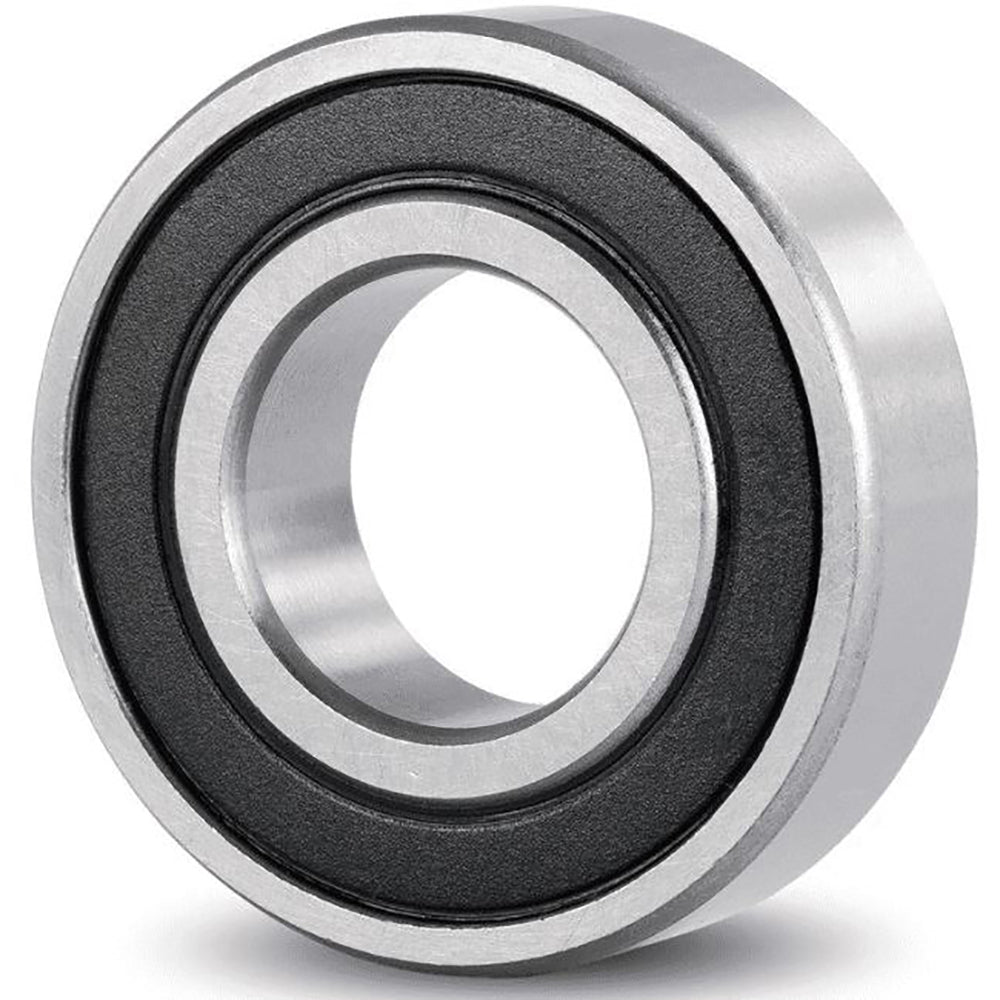

Koyo Koyo6308-2RDC3 Ball Bearing 40 mm x 90 mm x 23 mm

Product Description

Koyo KOYO6308-2RDC3 is a deep groove ball bearing with double rubber seals designed for rotating shafts and industrial equipment. It has a 40 mm inner diameter, 90 mm outer diameter, 23 mm width, and C3 internal clearance. Constructed of steel with a snap ring, the bearing provides a dynamic load rating of 50.9 kN and a rated speed of 6300 RPM for moderate-speed applications. Common uses include electric motors, gearboxes, and general machinery requiring sealed bearings.

• Deep groove ball bearing with double rubber seals and C3 internal clearance
• Dimensions: 40 mm bore x 90 mm outer diameter x 23 mm width; 6300 series
• Steel construction with snap ring, dynamic load rating 50.9 kN, rated speed 6300 RPM

Product Highlights

Double-sealed deep groove bearing, 40×90×23 mm, C3 clearance, 50.9 kN dynamic load

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6308-2RDC3

Technical Specifications

• Brand: KOYO
• Manufacturer Part Number: KOYO6308-2RDC3
• Bearing Type: Deep Groove Ball
• Series: 6300 Series
• Closure Type: Double Sealed (two rubber seals)
• Inner Diameter (Bore): 40 mm (1.575 in)
• Outer Diameter: 90 mm (3.543 in)
• Width: 23 mm (0.906 in)
• Internal Clearance: C3
• Material: Steel
• Dynamic Load Rating: 50.9 kN
• Rated Speed: 6300 RPM
• Special Features: Snap Ring
• UPC Code: 605790076039
• RS Stock Number: 72061420
