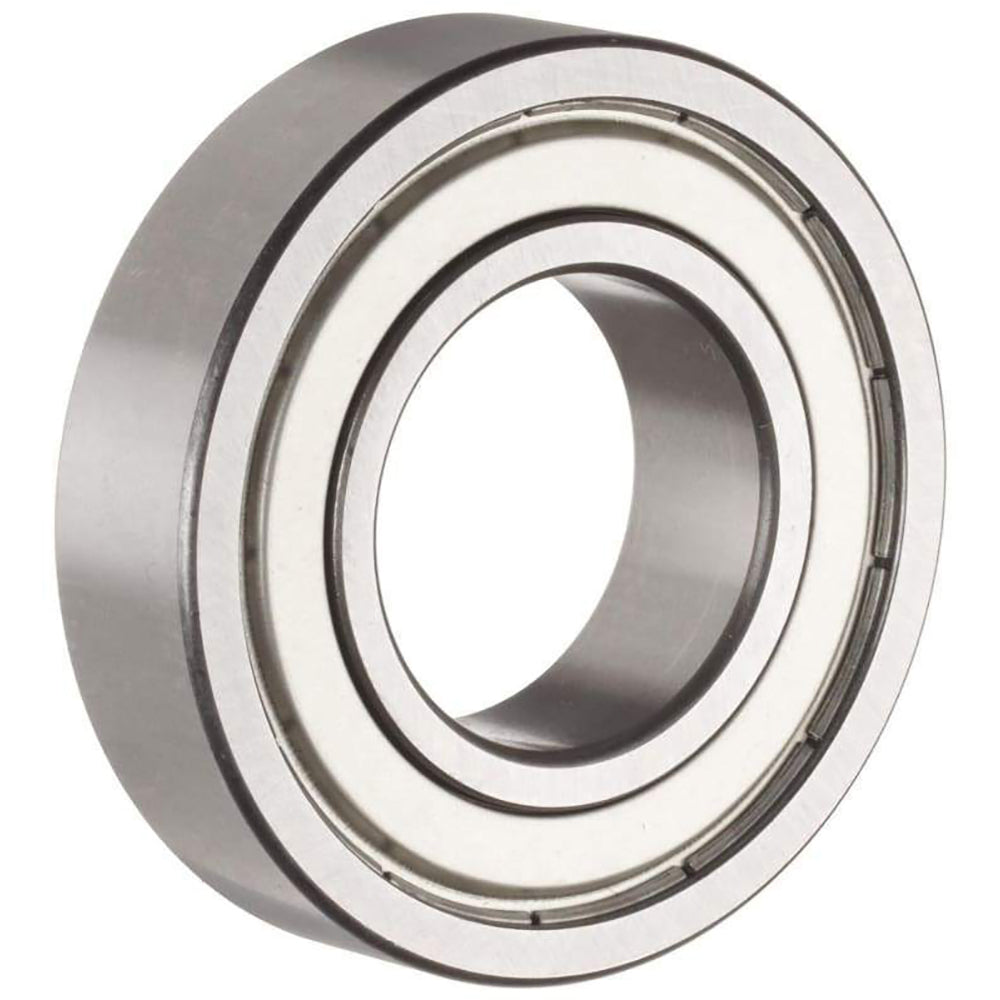

Koyo Koyo6306-ZZC3 Shielded Deep Groove Radial Ball Bearing 30 x 72 x 19 mm

Product Description

Koyo KOYO6306-ZZC3 is a shielded deep groove radial ball bearing with metal shields on both sides and C3 internal clearance. The bearing measures 30 mm bore by 72 mm outer diameter and 19 mm width, uses a steel cage, and features double metal seals (ZZ). It is part of the 6300 series, rated for typical speeds up to 6300 RPM with a dynamic load rating of 33.3 kN, made in Japan and supplied new.

• Double metal shields (ZZ) and C3 internal clearance for additional radial play
• Dimensions: 30 x 72 x 19 mm; steel cage construction
• 6300 series unit with dynamic load rating 33.3 kN and typical speed rating 6300 RPM

Product Highlights

Shielded deep groove radial bearing (ZZ) with C3 clearance, steel cage, 30 x 72 x 19 mm dimensions.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6306-ZZC3
• Country of Origin: Japan

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6306-ZZC3
• Model: 6306-ZZ-C3
• Bearing Type: Shielded deep groove radial ball bearing
• Seal/Shield: ZZ (double metal shield on both sides)
• Internal Clearance: C3
• Bore (mm): 30
• Outer Diameter (mm): 72
• Width (mm): 19
• Cage Type: Steel
• Material: Steel
• Dynamic Load Rating: 33.3 kN
• Static Load Rating: approx. 15.1 kN
• Rated Speed (RPM): 6300 RPM
• Series: 6300 Series
• Condition: New
• Country of Origin: Japan
• UPC: Does not apply
