Koyo Koyo6305-ZZC3 6305ZZC3 Deep groove ball bearing C3 clearance (25 mm x 62 mm x 17 mm)

Product Description

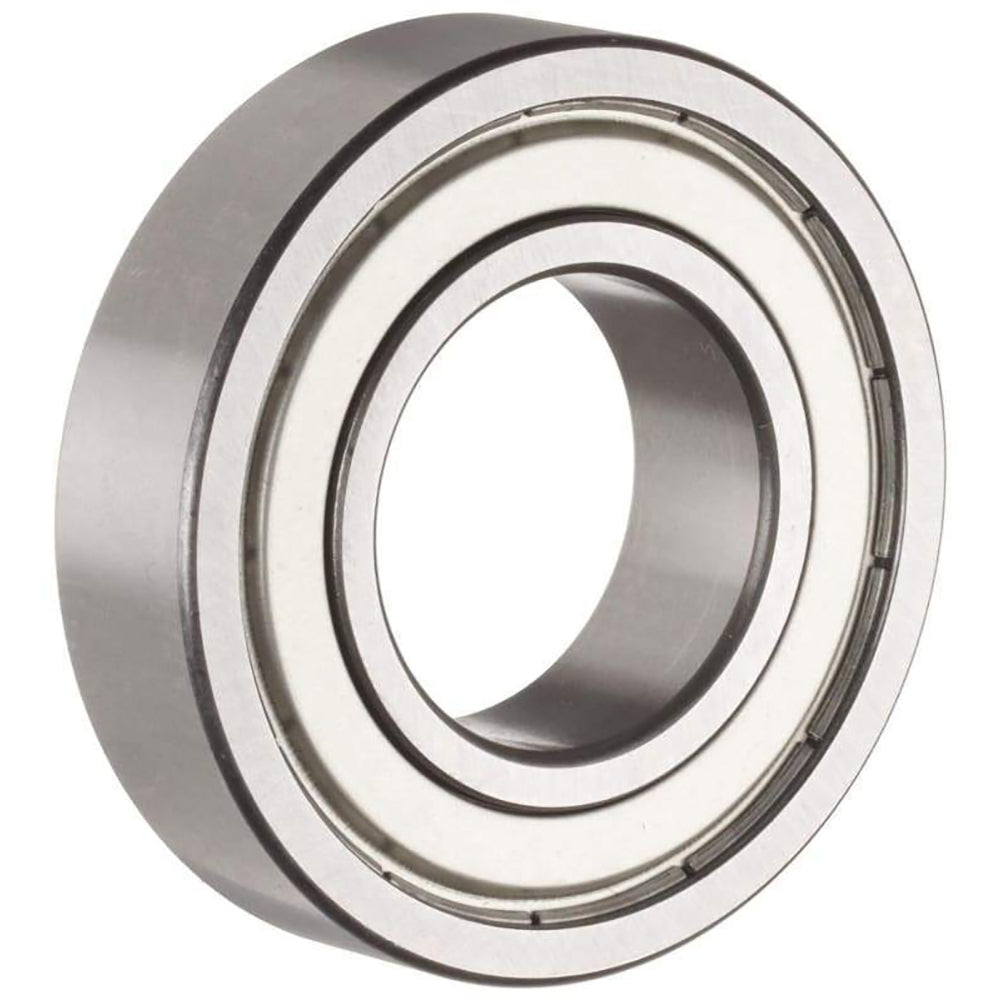

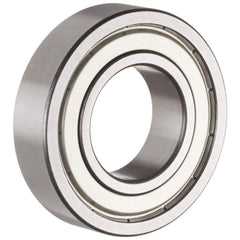

Koyo KOYO6305-ZZC3 is a deep groove ball bearing with double metal shields (ZZ) and C3 internal clearance. It has a 25 mm bore, 62 mm outside diameter and 17 mm width in steel construction, designed for radial loads. Specifications include a dynamic load rating of 25.7 kN, static load rating of 11.3 kN and a typical maximum speed of 6300 RPM; the part includes a snap ring and is part of the 6300 series.

• Deep groove ball design with double metal shields (ZZ) and C3 internal clearance
• Dimensions: 25 mm inner diameter × 62 mm outer diameter × 17 mm width
• Ratings: dynamic load 25.7 kN, static load 11.3 kN; typical max speed 6300 RPM

Product Highlights

Double-shielded 6305 series bearing for radial loads; C3 clearance; 25×62×17 mm

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6305-ZZC3

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6305-ZZC3
• Model: 6305ZZC3
• Bearing Type: Deep groove ball
• Closure Type: Double shielded (ZZ)
• Internal Clearance: C3
• Inner Diameter: 25 mm (0.984 in)
• Outer Diameter: 62 mm (2.441 in)
• Width: 17 mm (0.669 in)
• Material: Steel
• Series: 6300 series
• Dynamic Load Rating: 25.7 kN
• Static Load Rating: 11.3 kN
• Maximum RPM: 6300 RPM
• Special Features: Snap ring
• UPC Code: 605790074158
