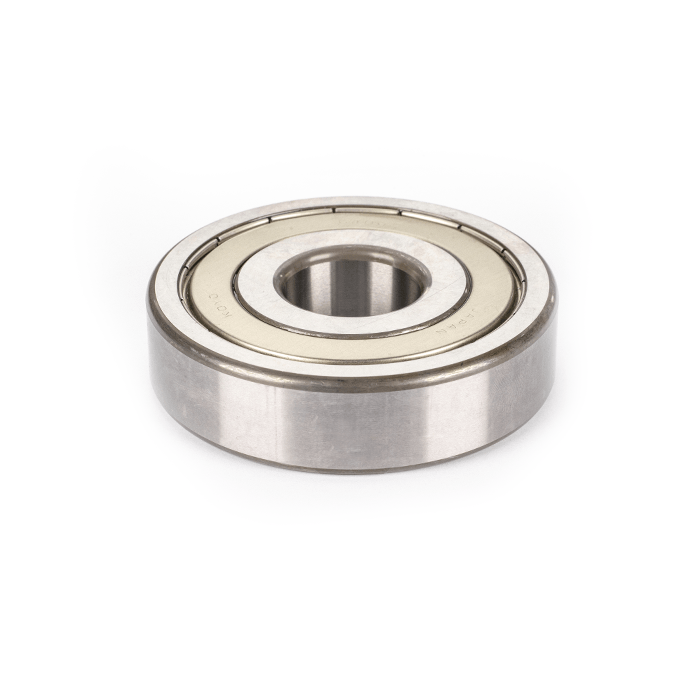

Koyo Koyo6220-ZZC3 Deep Groove Ball Bearing (100 x 180 x 34 mm)

Product Description

Koyo KOYO6220-ZZC3 is a deep groove single-row ball bearing with metal shields on both sides and a steel cage, designed for radial load applications. It measures 100 mm bore, 180 mm outer diameter, and 34 mm width, and is made from standard bearing steel. The bearing has radial internal clearance C3 and precision class P0, with a cylindrical bore type and a mass of 3.15 kg.

• Dimensions: 100 mm bore, 180 mm outer diameter, 34 mm width
• Metal shields on both sides (ZZ) with steel cage construction
• Radial internal clearance C3 and precision class P0

Product Highlights

Deep groove single-row bearing with ZZ shields, C3 radial clearance, steel cage

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6220-ZZC3
• Country of Origin: Japan

Technical Specifications

• Brand: Koyo
• MPN: KOYO6220-ZZC3
• Bearing Type: Deep groove ball bearing
• Ball Rows: Single row
• Bore Diameter: 100 mm
• Outer Diameter: 180 mm
• Width: 34 mm
• Dimensions: 100 x 180 x 34 mm
• Bore Type: Cylindrical
• Cage Material: Steel
• Material: Standard bearing steel
• Seal Type: Metal shields (ZZ) on both sides
• Radial Internal Clearance: C3
• Precision Class: P0
• Weight: 3.15 kg
• Country of Origin: Japan
• Condition: New
