Koyo Koyo6216-ZZC3 6216 ZZC3 deep groove ball bearing 80x140x26 mm 6216.ZZC3-KOY

Product Description

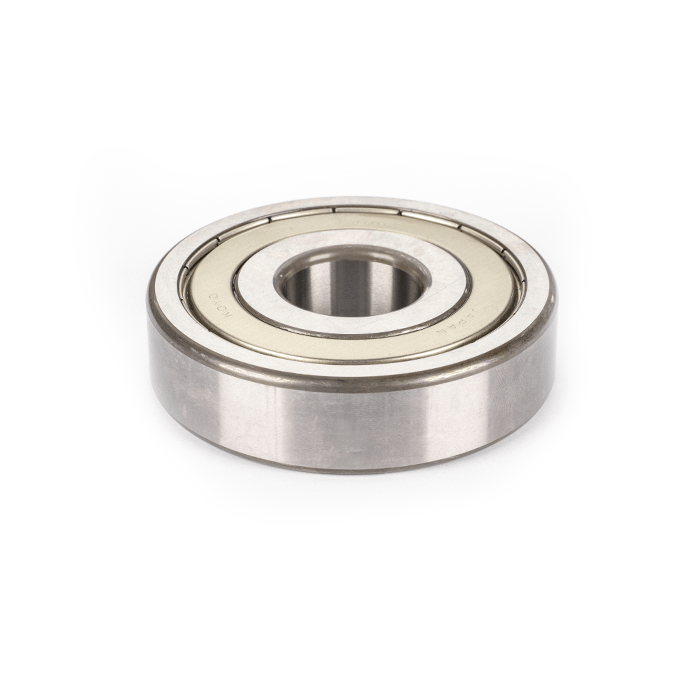

Koyo KOYO6216-ZZC3 is a single-row deep groove ball bearing with metal shields on both sides (ZZ) and C3 internal radial clearance. The bearing has an 80 mm bore, 140 mm outer diameter and 26 mm width, a steel cage, and a cylindrical bore for radial load applications at moderate speeds. Technical data includes a basic dynamic load rating Cr of 90.9 kN and limiting grease speed 4500 min^-1.

• Single-row deep groove design with metal shields both sides (ZZ) and C3 radial clearance
• Dimensions: inner diameter 80 mm, outer diameter 140 mm, width 26 mm; steel cage and cylindrical bore
• Load ratings and limits: basic dynamic Cr 90.9 kN, basic static C0r 53.0 kN, fatigue limit Cu 3.25 kN; limiting grease speed 4500 min^-1

Product Highlights

Deep groove single-row bearing, shielded (ZZ), C3 clearance, 80x140x26 mm, steel cage, Cr 90.9 kN, grease limiting speed 4500 min^-1

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6216-ZZC3

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6216-ZZC3
• SKU: 6216.ZZC3-KOY
• Type: Deep groove single-row ball bearing
• Shield Type: ZZ (metal shields both sides)
• Radial Internal Clearance: C3
• Inner Diameter: 80 mm
• Outer Diameter: 140 mm
• Width: 26 mm
• Bore Type: Cylindrical
• Cage Material: Steel
• Precision Class: Class normal (P0)
• Weight: 1.40 kg
• Basic dynamic load rating (Cr): 90.9 kN
• Basic static load rating (C0r): 53.0 kN
• Fatigue load limit (Cu): 3.25 kN
• Factor f0: 14.60
• Limiting speed (Grease lubrication): 4500 min^-1
• Maximum pitch diameter (Da max): 131 mm
• Minimum corner radius (r min): 2 mm
• Maximum fillet radius (ra max): 2 mm
