Koyo Koyo6215-ZZC3 6215 ZZ C3 Deep Groove Ball Bearing (75 mm x 130 mm)

Product Description

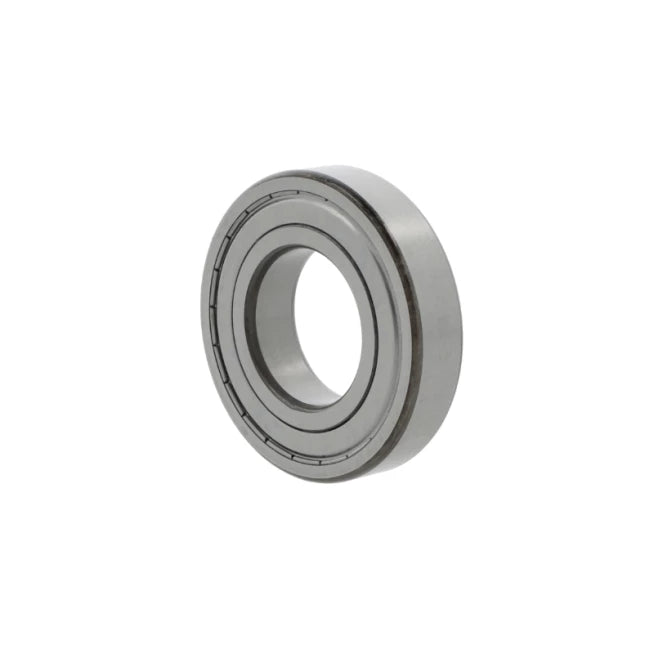

The Koyo KOYO6215-ZZC3 is a 6215 ZZ C3 deep groove ball bearing with metal shields on both sides and C3 internal clearance. It provides a basic dynamic load rating of 84.3 kN and a basic static load rating of 48.3 kN for radial and limited axial loading. The bearing has a 75 mm bore, 130 mm outer diameter, mass of 1.18 kg, and a grease-lubricated limiting speed of 4800 min-1.

• Deep groove design with ZZ metal shields on both sides and C3 internal clearance
• Basic dynamic load rating Cr 84.3 kN and basic static load rating C0r 48.3 kN
• Inner diameter 75 mm, outer diameter 130 mm, weight 1.18 kg; limiting speed (grease) 4800 min-1

Product Highlights

6215 series deep groove bearing; ZZ shields; C3 clearance; 75 mm x 130 mm; Cr 84.3 kN

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6215-ZZC3

Technical Specifications

• Brand: Koyo
• Manufacturer Part Number: KOYO6215-ZZC3
• Bearing Type: Deep groove ball bearing
• Shielding: ZZ (metal shields both sides)
• Internal Clearance: C3
• Inner Diameter: 75 mm
• Outer Diameter: 130 mm
• Weight: 1.18 kg
• Minimum fillet radius: 1.5 mm
• Basic static load rating (C0r): 48.3 kN
• Basic dynamic load rating (Cr): 84.3 kN
• Fatigue load limit (Cu): 3.10 kN
• f0 factor: 14.50
• Maximum corner radius (ra max): 1.5 mm
• Limiting speed (Grease lubrication): 4800 min-1
