Koyo Koyo6213-ZZC3 Deep Groove Ball Bearing (65x120x23 mm)

Product Description

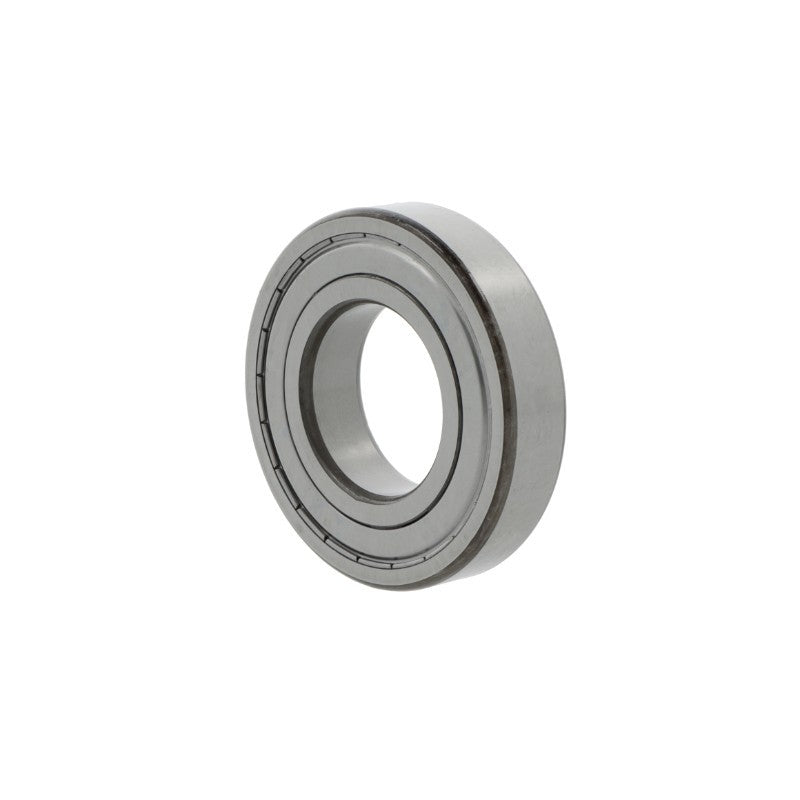

The Koyo KOYO6213-ZZC3 is a single-row deep groove ball bearing with a cylindrical bore, 65 mm inner diameter, 120 mm outer diameter, and 23 mm width. It is sealed on both sides (ZZ), uses standard bearing steel rolling elements and a sheet steel cage, and has slightly increased radial clearance with running accuracy tolerance class P0/PN2 (ABEC 1). Operating temperature range is -20 to +150 °C and weight is approximately 0.99 kg.

• Single-row deep groove design with cylindrical bore and dimensions 65 x 120 x 23 mm
• Sealed both sides (ZZ) with sheet steel cage and standard bearing steel rolling elements
• Slightly increased radial clearance, tolerance class P0/PN2 (ABEC 1), operating temperature -20 to +150 °C

Product Highlights

Sealed deep groove bearing, 65x120x23 mm, P0/PN2 tolerance, -20 to +150 °C

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6213-ZZC3

Technical Specifications

• Brand: KOYO
• MPN: KOYO6213-ZZC3
• Model: 6213 ZZC3
• Inner Diameter: 65 mm
• Outer Diameter: 120 mm
• Width: 23 mm
• Bore Type: Cylindrical bore
• Ball Rows: Single row
• Material: Standard bearing steel
• Rolling Elements Material: Standard bearing steel
• Cage: Sheet steel cage
• Seal: Cover on both sides (ZZ)
• Clearance: Slightly increased radial clearance
• Running Accuracy: Tolerance class P0/PN2 (ABEC 1)
• Outer Ring: Without flange/groove
• Temperature Range: -20 to +150 °C
• Weight: 0.99 kg (2.18 lb)
