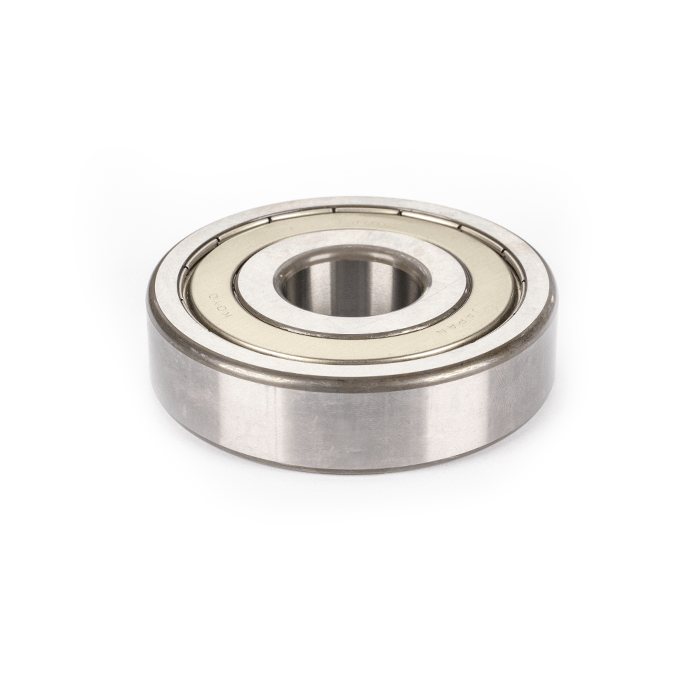

Koyo Koyo6211-ZZC3 deep groove ball bearing (55x100x21 mm) Koyo6211-ZZC3

Product Description

Koyo KOYO6211-ZZC3 is a deep groove single-row ball bearing with shields on both sides. It has a 55 mm bore, 100 mm outer diameter, and 21 mm overall width, with a cylindrical bore and steel cage. The bearing is class normal (P0) with radial internal clearance C3 and a listed weight of 0.610 kg. It is suitable for general applications and supports rotational movement and radial loads.

• 55 mm bore × 100 mm outer diameter × 21 mm overall width
• Shielded both sides (ZZ); radial internal clearance C3; precision class P0
• Cylindrical bore with steel cage; weight 0.610 kg

Product Highlights

Deep groove single-row ball bearing, shielded both sides, C3 clearance, P0 precision

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6211-ZZC3

Technical Specifications

• Brand: Koyo
• MPN: KOYO6211-ZZC3
• Alternate Part Number: 6211.ZZC3-KOY
• Bearing Type: Deep groove single-row ball bearing
• Bore Diameter: 55 mm
• Outer Diameter: 100 mm
• Overall Width: 21 mm
• Bore Type: Cylindrical
• Cage Material: Steel
• Precision Class: P0
• Radial Internal Clearance: C3
• Seal Type: Shielded (both sides, ZZ)
• Weight: 0.610 kg
