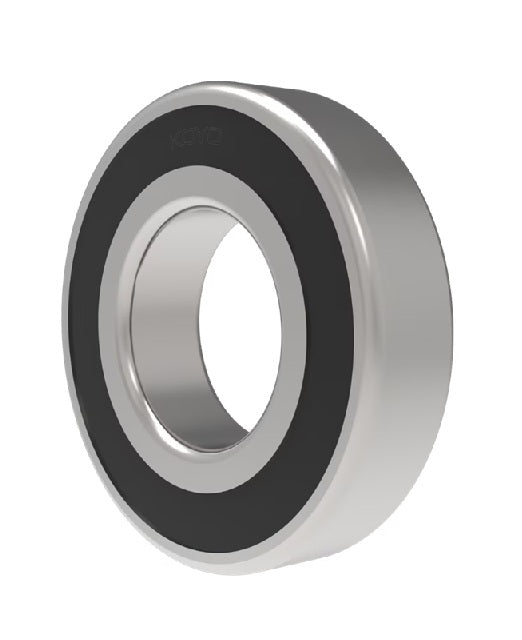

Koyo Koyo6209-2RDC3 Deep Groove Single Row Ball Bearing (45 x 85 x 19 mm) 62092RDC3

Product Description

The Koyo KOYO6209-2RDC3 is a single-row deep groove ball bearing with a 45 mm bore, 85 mm outer diameter, and 19 mm overall width. Constructed from steel with a riveted steel cage and a two-seal closure, it provides contamination protection and lubrication retention. The bearing features a round bore type and C3 internal clearance suited for applications with thermal expansion or higher radial play requirements.

• 45 mm bore, 85 mm outer diameter, 19 mm overall width; metric dimensions
• Riveted steel cage with two-seal closure for contamination protection and lubrication retention
• C3 internal clearance and single-row deep groove design for radial flexibility under thermal or speed-related expansion

Product Highlights

Single-row deep groove ball bearing; riveted steel cage; 2-seal closure; C3 internal clearance; metric 45 x 85 x 19 mm

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6209-2RDC3

Technical Specifications

• Manufacturer: Koyo
• Manufacturer Part Number: KOYO6209-2RDC3
• Replacement Part Number: 62092RDC3
• Bearing Type: Deep groove ball bearing
• Row Type: Single row
• Bore Diameter: 45 mm
• Outer Diameter: 85 mm
• Width: 19 mm
• Measurement System: Metric
• Material: Steel
• Bore Type: Round
• Cage Material: Steel (riveted)
• Seal Type: 2 seals
• Internal Clearance: C3
• Dimensions: 45 x 85 x 19 mm
