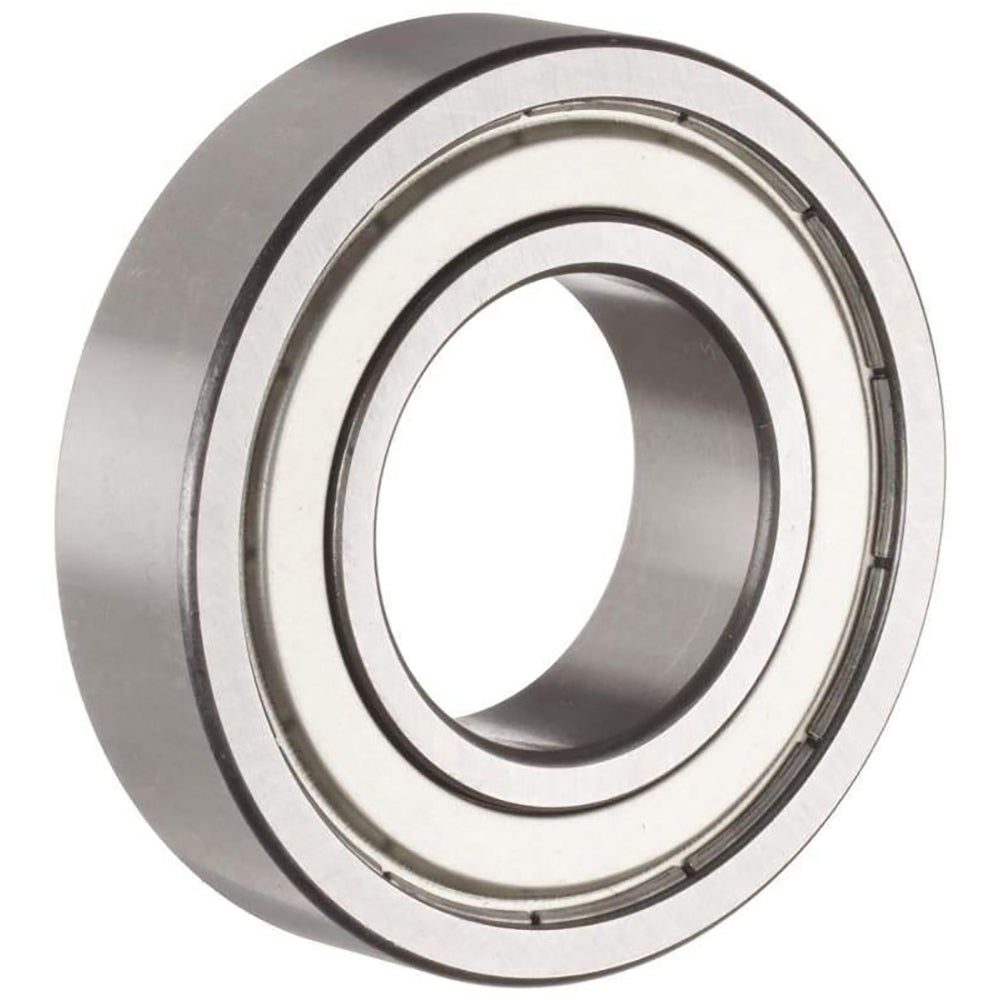

Koyo Koyo6208-ZZC3 Ball Bearing Radial Deep Groove Double Shielded C3 Clearance (40x80x18 mm)

Product Description

The Koyo KOYO6208-ZZC3 is a deep groove radial ball bearing featuring double metal shields and C3 internal clearance for increased internal clearance. It measures 40 mm bore, 80 mm outer diameter, and 18 mm width and is constructed of steel. The bearing supports radial load applications with a dynamic load rating of 36.4 kN, a static load rating of 17.8 kN, and a rated speed of 6200 RPM. It includes a snap ring for axial retention.

• 40 mm inner diameter, 80 mm outer diameter, 18 mm width; steel construction
• Double metal shields (2Z) with C3 internal clearance; rated speed 6200 RPM
• Dynamic load rating 36.4 kN, static load rating 17.8 kN; includes snap ring

Product Highlights

Deep groove, double-shielded bearing with C3 clearance; 40×80×18 mm; snap ring

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6208-ZZC3

Technical Specifications

• Brand: KOYO
• Manufacturer Part Number: KOYO6208-ZZC3
• Alternate Part Number: 6208ZZC3
• Bearing Type: Deep Groove Ball
• Series: 6200 Series
• Closure Type: Double Shielded (ZZ)
• Internal Clearance: C3
• Inner Diameter: 40 mm (1.575 in)
• Outer Diameter: 80 mm (3.150 in)
• Width: 18 mm (0.709 in)
• Dynamic Load Rating: 36.4 kN
• Static Load Rating: 17.8 kN
• Rated Speed (RPM): 6200 RPM
• Material: Steel
• Special Features: Snap Ring
• UNSPSC Code: 27110000
• Unit of Measure: EA
• UPC Code: 605790064227
