Koyo Koyo6208-2RDC3 Single Row Ball Bearing (40 mm x 80 mm x 18 mm)

Product Description

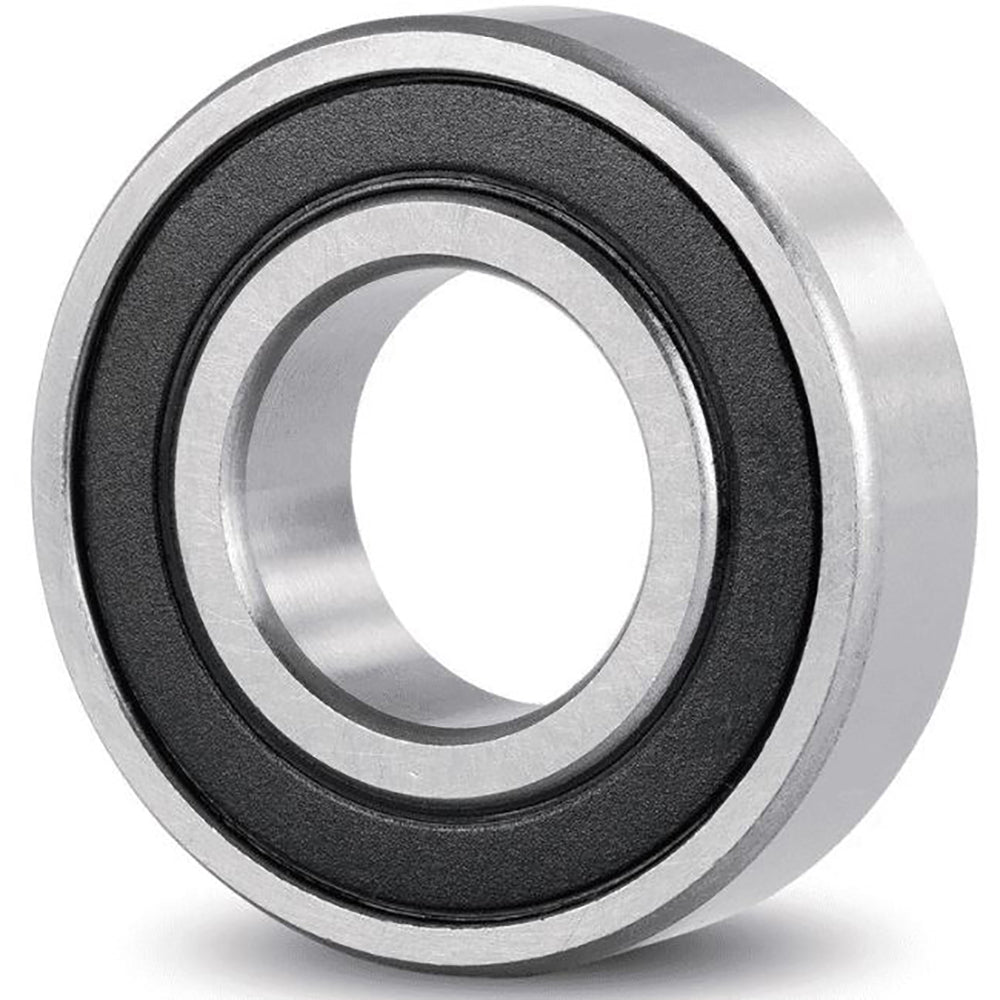

Koyo KOYO6208-2RDC3 is a single row deep groove ball bearing with double rubber seals and C3 internal clearance. The bearing features a 40 mm bore, 80 mm outside diameter and 18 mm overall width in steel construction with a snap ring. It has a dynamic load rating of 36.4 kN, static load rating of 17.8 kN and a rated speed of 6200 RPM, suitable for radial applications in general machinery, textile equipment, and vehicles.

• Double sealed design (two rubber seals) with C3 internal clearance
• Dimensions: 40 mm inner diameter x 80 mm outer diameter x 18 mm width
• Dynamic load 36.4 kN, static load 17.8 kN; rated speed 6200 RPM; steel construction with snap ring

Product Highlights

Single row deep groove bearing, double sealed, C3 clearance, 40 x 80 x 18 mm, dynamic 36.4 kN

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6208-2RDC3

Technical Specifications

• Brand: KOYO
• Manufacturer Part Number: KOYO6208-2RDC3
• Series: 6200 Series
• Bearing Type: Deep groove ball / Single row
• Closure Type: Double sealed (2 rubber seals)
• Internal Clearance: C3
• Inner Diameter: 40 mm (1.575 in)
• Outer Diameter: 80 mm (3.150 in)
• Overall Width: 18 mm (0.71 in)
• Material: Steel
• Dynamic Load Rating: 36.4 kN
• Static Load Rating: 17.8 kN
• Rated Speed (RPM): 6200 RPM
• Special Features: Snap ring
• UPC Code: 605790063602
• Typical Applications: General machinery, textile machinery, vehicle components
